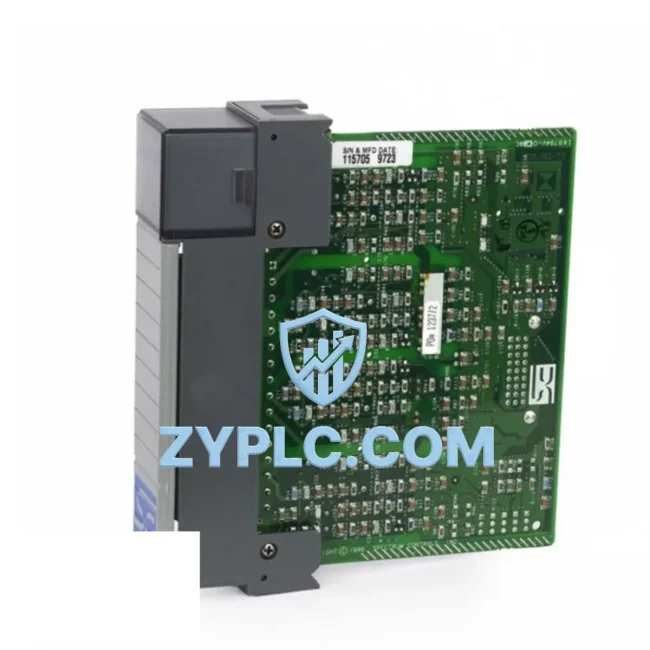

Allen-Bradley 1746SC-CTR4 System-Ready Counter Module for SLC 500 Architecture

Allen-Bradley 1746SC-CTR4 System-Ready Counter Module for SLC 500 Architecture

The Allen-Bradley 1746SC-CTR4 is a 4-channel high-speed counter and flow meter input module engineered for seamless integration within the SLC 500 modular control platform. Designed to occupy a standard 1746 I/O chassis slot, this module extends the counting and frequency measurement capabilities of the SLC 500 system without requiring external signal conditioning hardware. Its architecture-native design ensures that engineers can deploy high-resolution pulse counting, quadrature encoder feedback, and volumetric flow measurement directly within the control backplane — maintaining signal integrity, reducing wiring complexity, and preserving the deterministic scan cycle performance that industrial automation demands.

In a layered automation architecture, the 1746SC-CTR4 occupies the I/O layer, bridging field-level sensors and the CPU’s data table. It receives high-frequency pulse trains from turbine flow meters, magnetic pickups, proximity sensors, and incremental encoders, then delivers pre-processed count values directly to the SLC 5/04 or SLC 5/05 processor via the 1746 backplane. This eliminates the latency and noise susceptibility associated with routing raw pulse signals through general-purpose digital input modules, making the 1746SC-CTR4 a precision-critical component in flow measurement, batch control, and motion indexing applications.

Architecture Specification Table

Coordinated Control System Design

The 1746SC-CTR4 achieves its full value when deployed as part of a coordinated SLC 500 control system rather than as a standalone module. In a typical process control cabinet, the module shares a 1746-A10 chassis with the SLC 5/04 processor (1747-L541), which manages the program scan and data table updates. The chassis is powered by a 1746-P4 power supply, which provides regulated 5 VDC and 24 VDC rails to all installed modules, ensuring stable operation even under high-density I/O configurations.

On the digital I/O side, the system typically includes 1746-IB16 DC input modules for discrete field signals and 1746-OB16 DC output modules for actuator control, while the 1746SC-CTR4 handles the high-frequency pulse inputs that standard digital modules cannot reliably process. For analog process variables such as pressure, temperature, and level, 1746-NI4 analog input modules complement the counter module by providing 4–20 mA and voltage signal acquisition on the same backplane.

Network connectivity is managed through a 1747-SDN DeviceNet Scanner module or a 1747-SCNR Remote I/O Scanner, enabling the SLC 500 system to communicate with distributed I/O racks, variable frequency drives, and smart field devices across the plant floor. For Ethernet-based supervisory integration, a 1761-NET-ENI Ethernet Interface bridges the SLC processor to the plant SCADA or MES layer, allowing real-time flow totalization data captured by the 1746SC-CTR4 to be transmitted upstream without additional data conversion.

At the human-machine interface layer, a PanelView 550 (2711-B5A8) or PanelView Plus 600 terminal connects via DH-485 or Ethernet to display live counter values, flow rates, and batch totals derived from the 1746SC-CTR4’s data registers. This closed-loop visibility — from field sensor through counter module, processor, network, and HMI — defines the Contextual Integration that makes the 1746SC-CTR4 a system-level asset rather than a point solution.

For redundancy-sensitive applications, the control architecture may incorporate a 1747-BSN Backup Communication Module alongside a secondary SLC chassis, ensuring that counter data is not lost during processor switchover events. Terminal wiring is managed through 1492-CABLE series pre-wired interface cables and 1492-IFM interface modules, which reduce field wiring errors and accelerate commissioning time significantly.

Application in Layered Automation Systems

The 1746SC-CTR4 is deployed across a wide range of industrial sectors where precise pulse counting and flow measurement are critical to process integrity and regulatory compliance.

In water and wastewater treatment facilities, the module counts pulses from electromagnetic and turbine flow meters to calculate volumetric totals for billing, chemical dosing control, and regulatory reporting. Its 32-bit counter depth accommodates the high pulse counts generated by large-diameter meters over extended operational periods without rollover errors.

In oil and gas and petrochemical plants, the 1746SC-CTR4 measures custody-transfer flow rates from positive displacement meters and turbine meters, feeding data to the SLC 5/04 processor for batch accumulation and alarm management. The module’s ability to handle quadrature encoder signals also makes it suitable for pig tracking and pipeline inspection gauge (PIG) position monitoring.

In food and beverage packaging lines, the module tracks product counts on high-speed conveyors, synchronizes filling heads with container indexing, and monitors pump stroke counts for precise liquid dispensing. Its deterministic backplane communication ensures that count data is available to the processor within every scan cycle, supporting tight batch tolerances.

In power generation and utilities, the 1746SC-CTR4 monitors turbine shaft speed, generator RPM, and cooling water flow rates, providing the SLC 500 system with the real-time frequency data needed for protective relay coordination and load management decisions.

In mining and minerals processing, the module counts belt conveyor revolutions for tonnage calculation, monitors crusher RPM for overload protection, and tracks pump strokes in slurry transfer systems — all within the same SLC 500 chassis that manages the broader process control strategy.

Architecture Engineering FAQ

Q1: Is the 1746SC-CTR4 compatible with all SLC 500 chassis sizes, and can it coexist with standard 1746 I/O modules?
Yes. The 1746SC-CTR4 occupies a single slot in any 1746 chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 — and is fully compatible with all standard 1746 digital and analog I/O modules. It draws power from the 5 VDC backplane bus supplied by the 1746-P2, 1746-P4, or 1746-P7 power supply. No special slot assignment is required; the module can be placed in any available I/O slot, and the SLC processor automatically recognizes it during the I/O configuration scan. This plug-and-play backplane compatibility makes it straightforward to add counter functionality to an existing SLC 500 system without chassis replacement or rewiring of adjacent modules.

Q2: How does the 1746SC-CTR4 support long-term maintenance and spare parts management in a multi-site automation environment?
Because the 1746SC-CTR4 uses the standard 1746 form factor and backplane interface, it is interchangeable across all SLC 500 installations within a facility or enterprise. Maintenance teams can maintain a single spare module that covers multiple machines and production lines, reducing spare parts inventory cost. The module’s configuration is stored in the SLC processor’s program file, so a replacement module is operational immediately after installation without requiring field reconfiguration. Our 12-Month Warranty covers the module against manufacturing defects and operational failures, and all units are tested under load prior to shipment to ensure they meet original Allen-Bradley performance specifications.

Q3: What commissioning steps are required to integrate the 1746SC-CTR4 into an existing SLC 500 program, and how is Contextual Integration achieved?
Commissioning the 1746SC-CTR4 involves three primary steps: first, insert the module into the target chassis slot and update the I/O configuration in RSLogix 500 to recognize the module type and slot address. Second, configure each channel’s operating mode (counter, rate measurement, or quadrature) and set the preset, overflow, and gate parameters via the module’s configuration file in the processor data table. Third, map the module’s output data — accumulated counts, rate values, and status bits — to the appropriate rungs in the ladder logic program for use in PID loops, batch accumulators, or alarm routines. Contextual Integration is achieved when the counter data flows seamlessly into the broader control strategy: feeding flow totals to HMI displays, triggering downstream actuators via output modules, and transmitting process data to SCADA via the network scanner — all within the deterministic scan cycle of the SLC 5/04 or SLC 5/05 processor.
