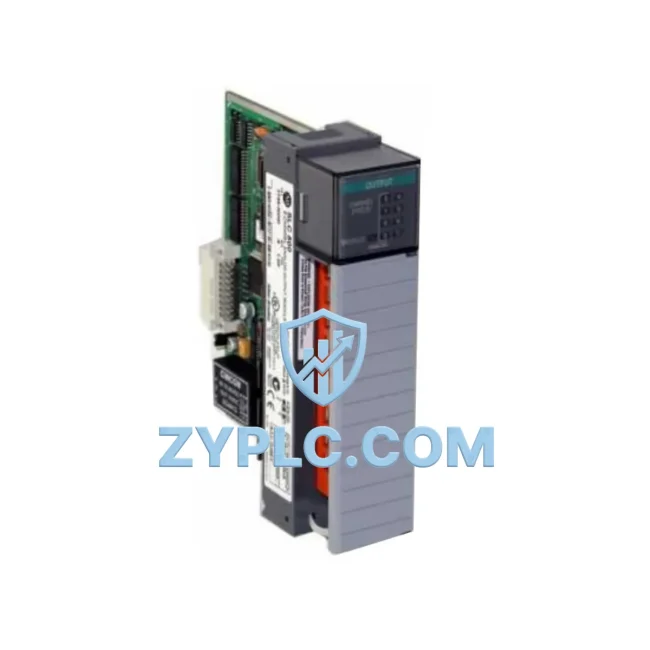

Allen-Bradley 1746SC-NO8I System-Ready Analog Output for SLC 500 Architecture

Allen-Bradley 1746SC-NO8I System-Ready Analog Output for SLC 500 Architecture

The Allen-Bradley 1746SC-NO8I is an 8-channel analog current output module purpose-built for integration within the SLC 500 modular control platform. Rather than functioning as a standalone component, this module is designed to operate as a precision signal-conditioning layer within a fully coordinated industrial automation architecture. Its role spans the boundary between the control layer and the field execution layer, translating digital command values from the SLC 5/04 or SLC 5/05 processor into calibrated 4–20 mA current signals that drive field devices including control valves, variable frequency drives, and positioners. Understanding the 1746SC-NO8I in the context of the complete SLC 500 system architecture reveals its true value: it is not merely an output card, but a critical node in a layered, redundancy-aware, and long-term maintainable control infrastructure.

Architecture Specification Table

Coordinated Control System Design

The 1746SC-NO8I achieves its highest performance when deployed as part of a fully integrated SLC 500 control system. At the processor level, an Allen-Bradley SLC 5/05 processor (1747-L553) provides Ethernet/IP connectivity and executes the ladder logic programs that generate the output command words consumed by the 1746SC-NO8I. The processor communicates with all I/O modules across the 1746-A10 or 1746-A13 chassis backplane, which serves as the physical and electrical backbone of the entire I/O subsystem.

On the input side, the 1746SC-NO8I works in close coordination with analog input modules such as the Allen-Bradley 1746-NI8 8-channel analog input module, which acquires process variable signals from field transmitters. The closed-loop control strategy — for example, a PID loop controlling a flow control valve — depends on the precise pairing of these input and output modules. The processor reads the process variable from the 1746-NI8, executes the control algorithm, and writes the corrected output value to the 1746SC-NO8I, which then drives the valve positioner via a 4–20 mA signal.

For discrete I/O coordination, the Allen-Bradley 1746-OB16 digital output module and 1746-IB16 digital input module handle on/off control of solenoids, motor starters, and limit switches within the same chassis. This mixed I/O architecture — combining the 1746SC-NO8I’s analog output capability with discrete I/O modules — is the standard configuration for process control panels in water treatment, chemical dosing, and HVAC applications.

Power distribution within the control cabinet is managed by the Allen-Bradley 1746-P4 power supply, which provides regulated 5 VDC backplane power and 24 VDC user power to all modules in the chassis. Proper power budget calculation is essential when deploying the 1746SC-NO8I alongside multiple I/O modules, as each channel’s current loop output draws from the field-side power supply. An external 24 VDC DIN rail power supply — typically a Phoenix Contact or Siemens SITOP unit — is recommended for powering the current loop loads independently of the backplane supply.

At the network layer, the SLC 5/05 processor’s built-in Ethernet port enables integration with Rockwell Automation FactoryTalk View SE SCADA or third-party HMI systems via EtherNet/IP. For legacy installations using DH+ or DH-485 networks, the Allen-Bradley 1747-AIC Advanced Interface Converter bridges the SLC 500 system to upstream supervisory systems. The 1746SC-NO8I’s output data is mapped directly into the processor’s output image table, making it immediately accessible to any SCADA or DCS system polling the processor over the network.

For applications requiring remote I/O expansion beyond the local chassis, the Allen-Bradley 1747-SN Remote I/O Scanner extends the SLC 500 I/O architecture to remote racks, allowing additional 1746SC-NO8I modules to be deployed at field junction boxes without running individual signal cables back to the main control panel. This architecture is particularly valuable in large-footprint facilities such as water treatment plants, mining conveyors, and oil and gas processing skids.

Application in Layered Automation Systems

Manufacturing and Packaging Lines: In high-speed packaging and filling lines, the 1746SC-NO8I controls servo-driven metering pumps and proportional pneumatic valves. Its 12-bit resolution ensures precise fill volume control, reducing product giveaway and improving line efficiency. The module’s isolated channel design prevents ground loop interference between adjacent drives and actuators on the same production line.

Water and Wastewater Treatment: Municipal water treatment facilities rely on the 1746SC-NO8I to modulate chemical dosing pumps, aeration blower VFDs, and effluent control valves. The module’s ability to maintain stable 4–20 mA output under varying load impedances — up to 750 Ω per channel — makes it suitable for long cable runs to remote field devices in large treatment basins. Redundant SLC 500 processor configurations using the 1747-L553 ensure continuous operation during processor maintenance windows.

Power Generation and Utilities: In power plant auxiliary systems, the 1746SC-NO8I drives turbine governor actuators, cooling water control valves, and fuel flow regulators. Its CE and UL certifications satisfy the electrical safety requirements of power generation facilities, and its backplane isolation architecture prevents high-voltage transients from propagating into the control system.

Petrochemical and Refinery Process Control: Refinery control systems demand long-term stability and predictable maintenance cycles. The 1746SC-NO8I’s compatibility with the full SLC 500 chassis family — from the compact 1746-A4 to the full-size 1746-A13 — allows engineers to right-size the control panel for each process unit. Spare module inventory is simplified because a single 1746SC-NO8I model serves multiple process loops across different units.

Mining and Metallurgy: Conveyor speed control, flotation cell level regulation, and smelter temperature management all benefit from the 1746SC-NO8I’s robust current output architecture. In high-EMI environments typical of mining operations, the module’s isolated channel design and shielded backplane communication maintain signal integrity without requiring additional signal conditioning hardware.

Architecture Engineering FAQ

Q1: Is the 1746SC-NO8I compatible with all SLC 500 chassis and processors, and can it be mixed with standard 1746 I/O modules in the same rack?
Yes. The 1746SC-NO8I is fully compatible with all SLC 500 chassis variants (1746-A4, A7, A10, A13) and all SLC 500 processor families (5/01 through 5/05). It occupies a standard 1746 I/O slot and can be mixed freely with discrete I/O modules such as the 1746-OB16 and 1746-IB16, as well as other analog modules including the 1746-NI8. The module is addressed through the standard SLC 500 output image table, requiring no special configuration beyond slot addressing in RSLogix 500 or Studio 5000 Logix Designer.

Q2: What are the long-term maintenance and spare parts considerations for the 1746SC-NO8I in an aging SLC 500 system?
The SLC 500 platform has an extensive installed base, and spare modules remain available through authorized distributors and specialist suppliers. For facilities managing aging SLC 500 systems, maintaining a minimum of one spare 1746SC-NO8I per control panel is recommended to minimize unplanned downtime. All units supplied by ZYPLC are covered by a 12-Month Warranty and are tested prior to shipment. For long-term migration planning, Rockwell Automation’s ControlLogix and CompactLogix platforms offer forward-compatible I/O architectures, but the SLC 500 system remains fully supportable for existing installations.

Q3: How does the 12-Month Warranty and Contextual Integration support work for the 1746SC-NO8I?
Every 1746SC-NO8I supplied by ZYPLC is backed by a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Contextual Integration support means our technical team provides pre-sales architecture consultation to confirm module compatibility with your specific SLC 500 chassis, processor firmware version, and field device requirements. Post-sale, we offer commissioning guidance including I/O image table mapping, RSLogix 500 configuration, and loop calibration procedures. Contact our team at plc.sales@zyplc.com or +86 19859288691 for system-level support.
