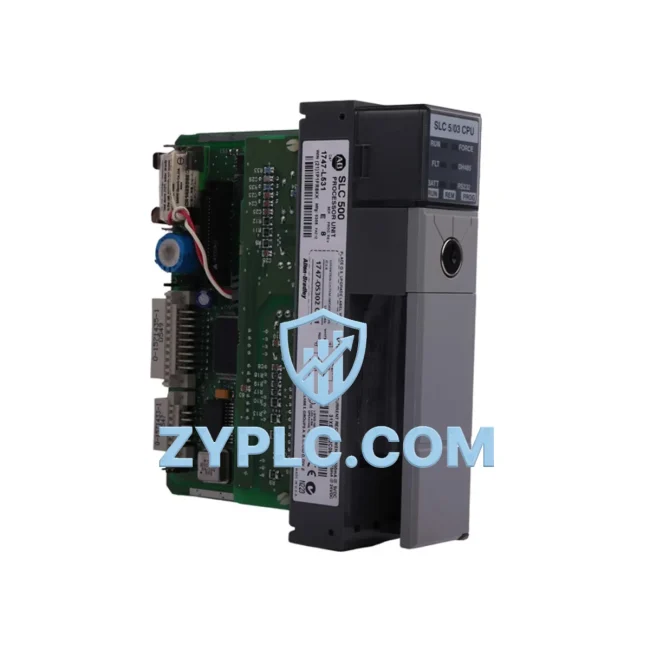

Allen-Bradley 1747-L531 System-Ready CPU for SLC 500 Architecture

Allen-Bradley 1747-L531 System-Ready CPU for SLC 500 Architecture

The Allen-Bradley 1747-L531 is a mid-range CPU module within the SLC 500 modular platform, engineered to serve as the central processing unit in layered industrial control architectures. Rather than functioning as a standalone component, the 1747-L531 is designed for Contextual Integration — operating in concert with I/O modules, communication gateways, power supplies, HMI terminals, and field-level actuators to form a coherent, scalable, and maintainable control system. In process-critical environments where uptime, signal integrity, and long-term serviceability are non-negotiable, the 1747-L531 delivers the processing backbone that ties every system layer together.

With 16 KB of user memory, support for up to 4096 I/O points, and native DH-485 communication capability, the 1747-L531 occupies a well-defined role in the SLC 500 control hierarchy. It is compatible with the 1746 series I/O chassis and modules, enabling engineers to build modular rack-based systems that can be expanded, reconfigured, or maintained without disrupting the broader control architecture. This modularity is central to the SLC 500 platform’s enduring relevance across manufacturing, utilities, and process industries.

Architecture Specification Table

Coordinated Control System Design

The 1747-L531 achieves its full potential when integrated within a complete SLC 500 rack system. A typical architecture begins with a 1746-P2 power supply mounted in a 1746-A10 modular chassis, providing stable backplane power to the CPU and all adjacent I/O modules. Digital input signals are collected through 1746-IB16 DC input modules, while analog process variables — temperature, pressure, flow — are acquired via 1746-NI4 analog input modules. Output commands are issued through 1746-OB16 DC output modules or 1746-OW16 relay output modules depending on load type and switching frequency requirements.

Network connectivity is extended through a 1747-KE RS-232/DH-485 interface module or a 1747-UIC USB-to-DH-485 adapter, enabling RSLogix 500 programming sessions and live diagnostics without interrupting production. For supervisory integration, a PanelView 550 or PanelView 600 HMI terminal communicates with the 1747-L531 over DH-485, providing operators with real-time status visualization, alarm acknowledgment, and manual override capability at the machine level.

In applications requiring expanded I/O beyond a single chassis, the SLC 500 platform supports remote I/O expansion via 1747-SN scanner modules paired with 1747-ASB adapter modules in remote racks. This distributed architecture allows the 1747-L531 to manage field devices located across large plant floors or multi-zone process areas without requiring additional CPUs, preserving system coherence and simplifying ladder logic maintenance. Terminal blocks and wiring accessories from the 1492 series complete the field wiring layer, ensuring clean, labeled, and maintainable connections throughout the control cabinet.

Application in Layered Automation Systems

The 1747-L531 is deployed across a broad spectrum of industrial sectors where the SLC 500 platform has established a long operational track record. In discrete manufacturing environments — automotive assembly, metal fabrication, and packaging lines — the CPU manages sequential machine logic, conveyor interlocks, and safety relay coordination with deterministic scan-cycle performance. Its instruction set supports complex sequencer logic and PID loops, making it equally capable in process control applications such as chemical dosing, temperature regulation, and flow control in water treatment and food processing facilities.

In power distribution and utilities infrastructure, the 1747-L531 is used to automate switchgear control, motor starter sequencing, and substation auxiliary systems where reliability over extended operational periods is critical. The module’s compatibility with DH-485 networks allows it to be integrated into SCADA architectures via protocol converters, enabling data exchange with higher-level MES or historian systems without requiring platform migration.

For mining and metallurgical operations, the SLC 500 modular architecture’s rugged chassis design and wide operating temperature range make the 1747-L531 suitable for crusher control panels, conveyor drive coordination, and ore processing automation. In petrochemical and refinery applications, the module supports batch process sequencing and interlock logic in environments where control system changes must be carefully managed and documented. Across all these sectors, the 12-Month Warranty and verified pre-shipment testing ensure that replacement units integrate seamlessly into existing architectures with minimal commissioning time.

Architecture Engineering FAQ

Q1: Is the 1747-L531 compatible with existing SLC 500 chassis and I/O modules already installed in my system?
Yes. The 1747-L531 is fully compatible with all 1746 series modular chassis (1746-A4, A7, A10, A13) and the complete range of 1746 series digital and analog I/O modules. It slots directly into the CPU slot of any SLC 500 modular chassis and communicates with I/O modules via the backplane without requiring additional configuration. Existing ladder logic programs developed for other SLC 500 CPU variants (such as the 1747-L511 or 1747-L541) can typically be transferred with minor memory and instruction set adjustments using RSLogix 500.

Q2: How does the 1747-L531 support long-term maintenance and spare parts management in a multi-site architecture?
The 1747-L531’s standardized form factor and backplane interface mean that a single spare unit can serve as a hot-swap replacement across multiple SLC 500 modular racks within the same facility or across sites running the same platform. Program backup via RSLogix 500 project files ensures that a replacement CPU can be restored to full operational status within minutes. Our 12-Month Warranty covers the unit against defects in materials and workmanship, and all units are tested and verified prior to shipment to minimize the risk of commissioning delays.

Q3: Can the 1747-L531 communicate with modern Ethernet-based SCADA or MES systems?
The 1747-L531 natively supports DH-485 and DF1 serial communication. Integration with Ethernet-based systems is achieved through protocol gateway devices such as the 1761-NET-ENI Ethernet interface or third-party Modbus TCP / EtherNet/IP gateways, which bridge the DH-485 or DF1 serial port to standard industrial Ethernet networks. This approach allows the 1747-L531 to participate in modern SCADA, historian, and MES architectures without requiring CPU replacement or platform migration, protecting existing control system investments while enabling Contextual Integration with higher-level enterprise systems.
