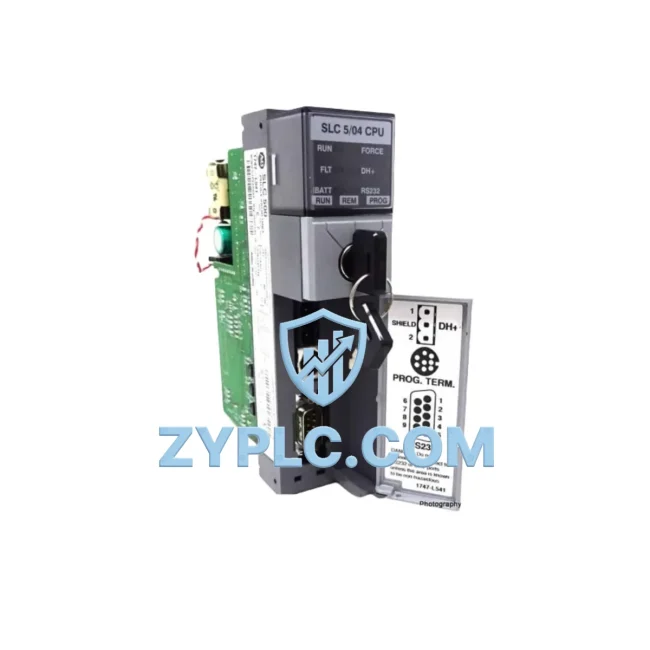

Allen-Bradley 1747-L541 Energy-Saving PLC for SLC 500 Automation

Allen-Bradley 1747-L541 Energy-Saving PLC for SLC 500 Automation

In modern manufacturing environments where every kilowatt-hour counts, the Allen-Bradley 1747-L541 SLC 5/04 processor module stands as a proven cornerstone of energy-conscious industrial control. Designed for the SLC 500 platform by Rockwell Automation, this processor delivers deterministic scan-cycle execution, efficient task scheduling, and tightly integrated I/O management — all of which directly translate into reduced idle energy consumption, minimized heat generation, and optimized production line throughput.

The 1747-L541 operates at 64K words of user memory with DH+ and RS-232 communication ports, enabling seamless integration into existing plant networks without costly infrastructure overhauls. Its ability to execute ladder logic with high-speed interrupt routines means that motor start/stop sequences, conveyor indexing, and process interlocks are handled with precision timing — eliminating the energy waste caused by over-running actuators, unnecessary motor run-time, and poorly sequenced production steps.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1747-L541 does not operate in isolation — its energy optimization value is fully realized when it functions as the central intelligence within a well-architected SLC 500 control system. In a typical energy-aware production cell, the processor communicates over DH+ (Data Highway Plus) with upstream SCADA systems and downstream field devices, creating a closed-loop feedback architecture that continuously adjusts control outputs based on real-time energy and process data.

At the field level, 1746-IB16 digital input modules and 1746-OB16 digital output modules collect and execute discrete signals from sensors, limit switches, and actuators. These 1746-series I/O modules are mounted directly in the SLC 500 chassis alongside the 1747-L541, minimizing wiring runs and signal latency. For analog process variables such as temperature, pressure, and flow — all critical to energy-efficient process control — 1746-NI4 analog input modules feed real-time data directly into the processor’s control loop.

Motor energy consumption is one of the largest controllable costs in any facility. The 1747-L541 integrates seamlessly with PowerFlex 40 variable frequency drives via DeviceNet or hardwired I/O, enabling the processor to ramp motor speeds proportionally to actual load demand rather than running at fixed full speed. This alone can reduce motor energy consumption by 20–50% in variable-load applications such as pumps, fans, and conveyors. For more demanding servo-driven axes, the processor coordinates with 1746-HSCE high-speed counter encoder modules to maintain precise position and velocity feedback, ensuring that servo systems are never over-driven beyond process requirements.

At the HMI layer, PanelView 600 terminals connected via DH+ provide operators with real-time visibility into energy consumption trends, cycle counts, and alarm states — enabling proactive intervention before inefficiencies compound into downtime. For facilities running FactoryTalk View SE SCADA, the 1747-L541’s DH+ port allows direct tag browsing and historian integration, so energy KPIs are logged continuously and available for shift-level and daily reporting.

Remote diagnostic capability is provided through the RS-232 DF1 port, which supports connection to 1747-UIC USB-to-DH+ interface converters, allowing maintenance engineers to upload/download programs, monitor live data, and perform online edits without interrupting production. This remote access capability is essential for predictive maintenance workflows — catching developing faults in motor control logic, I/O module degradation, or communication errors before they cause unplanned stops that waste both time and energy.

For facilities requiring network-level energy monitoring, the 1747-L541 can be paired with 1747-SDN DeviceNet Scanner modules to aggregate energy data from smart field devices, drives, and power meters across the production floor, feeding consolidated consumption data back to the SCADA layer for analysis and optimization.

Power Optimization in Real Production Lines

The most significant energy losses in industrial facilities are not always visible — they hide in poorly sequenced motor starts, over-long conveyor run times, uncoordinated pneumatic cycles, and control systems that cannot respond fast enough to process changes. The Allen-Bradley 1747-L541 addresses each of these through its combination of fast scan execution, interrupt-driven I/O handling, and flexible communication architecture.

In discrete assembly lines, the 1747-L541’s ability to execute Selectable Timed Interrupt (STI) and I/O Interrupt (II) routines means that energy-intensive equipment — such as welding stations, press brakes, and robotic end-effectors — can be powered down or placed in standby mode within milliseconds of a production pause, rather than continuing to draw full power during idle periods. This fine-grained control of equipment state directly reduces standby energy consumption across the production shift.

In process industries such as water treatment, chemical dosing, and HVAC control, the 1747-L541’s analog I/O integration enables true proportional-integral-derivative (PID) control of pumps and valves, replacing on/off bang-bang control with smooth, energy-efficient modulation. A pump running at 70% speed via a PowerFlex drive commanded by a well-tuned PID loop in the 1747-L541 consumes dramatically less energy than one cycling on and off at full speed to maintain the same process setpoint.

Maintenance cost reduction is another dimension of energy optimization. By leveraging the processor’s built-in diagnostic data — including I/O fault codes, communication error counters, and program scan time monitoring — maintenance teams can identify degrading components before they cause failures. Replacing a failing 1746-series I/O module proactively costs a fraction of the energy and production loss associated with an unplanned line stoppage. All units supplied by ZYPLC are pre-tested prior to shipment, with full functional verification under load conditions, and are backed by a 12-month warranty to ensure operational confidence from day one.

Energy Optimization FAQ

Q1: How does the 1747-L541 contribute to measurable energy savings on the production floor?
The 1747-L541 enables energy savings through precise motor sequencing via variable frequency drives, interrupt-driven standby control of energy-intensive equipment, and PID-based proportional control of pumps and actuators. When integrated with PowerFlex drives and 1746-series I/O, facilities typically see 15–40% reductions in motor energy consumption in variable-load applications.

Q2: Is the 1747-L541 compatible with my existing SLC 500 chassis and 1746 I/O modules?
Yes. The 1747-L541 (SLC 5/04) is fully compatible with all standard SLC 500 modular chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and the complete range of 1746-series digital, analog, and specialty I/O modules. No chassis or I/O hardware changes are required for a processor upgrade from earlier SLC 5/03 or 5/02 units.

Q3: What testing and quality verification does ZYPLC perform before shipment?
Every 1747-L541 unit supplied by ZYPLC undergoes full functional testing including power-on verification, memory integrity check, communication port validation (DH+ and RS-232), and I/O bus communication testing. Units are shipped with test reports and are covered by a 12-month warranty against manufacturing defects and functional failures.

Q4: Can the 1747-L541 be used as a direct replacement for SLC 5/03 (1747-L531) processors without reprogramming?
In most cases, yes. The SLC 5/04 (1747-L541) is backward-compatible with SLC 5/03 programs at the instruction set level. However, since the 5/04 adds DH+ capability not present on the 5/03’s RS-232-only port, communication configuration in RSLogix 500 may require minor adjustment. ZYPLC’s technical team can advise on migration compatibility for your specific application prior to purchase.
