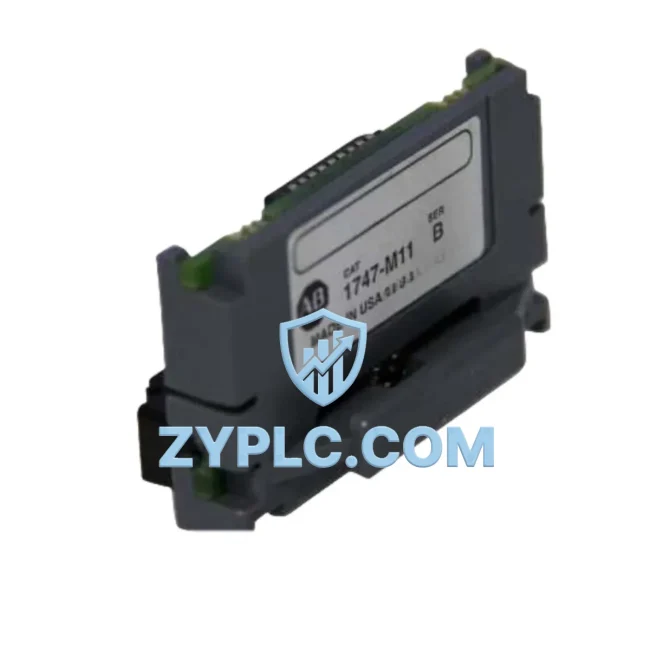

Allen-Bradley 1747-M11/B Energy-Saving Memory Module SLC 500

Allen-Bradley 1747-M11/B Energy-Saving Memory Module SLC 500: Precision Energy Control for Optimized Automation

The Allen-Bradley 1747-M11/B is a high-capacity EEPROM memory module engineered for the SLC 500 programmable logic controller platform. In modern industrial environments where energy efficiency and production continuity are inseparable goals, the 1747-M11/B plays a foundational role in ensuring that control logic is stored reliably, executed consistently, and transferred without data loss — all of which directly impact how efficiently a production line consumes power and utilizes equipment capacity.

By enabling non-volatile program backup and rapid restore on SLC 500 processors such as the 1747-L532 and 1747-L541, the 1747-M11/B eliminates the risk of program corruption during power cycling events. In energy-intensive manufacturing environments, unplanned restarts caused by lost control logic translate directly into wasted startup energy, idle motor runtime, and unnecessary thermal cycling of drive components. The 1747-M11/B removes this vulnerability from the equation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1747-M11/B does not operate in isolation — it is one component within a tightly integrated SLC 500 control architecture where every element contributes to overall system energy efficiency. When paired with the 1747-SDN DeviceNet Scanner, the memory module ensures that network configuration data is preserved across power cycles, preventing the scanner from re-initializing the DeviceNet bus unnecessarily and avoiding the associated surge currents that accompany full network restarts.

In drive-intensive applications, the SLC 500 processor running from a 1747-M11/B-backed program communicates seamlessly with PowerFlex 40 and PowerFlex 70 variable frequency drives via the 1747-KE DH-485 to RS-232 communication module. This ensures that motor speed references, torque limits, and energy-saving ramp profiles are executed exactly as programmed — without deviation caused by corrupted or missing control logic after a power interruption.

On the I/O side, the 1747-M11/B supports reliable execution of programs that manage 1746-IB16 digital input modules and 1746-OB16 digital output modules. These modules control the switching of motor contactors, solenoid valves, and conveyor drives — all of which represent significant energy loads. Precise, logic-driven switching reduces inrush current events and extends the service life of connected actuators.

For analog process control, programs stored on the 1747-M11/B govern the behavior of 1746-NI4 analog input modules that read current and voltage signals from power transducers and flow meters. This data feeds into PID loops that regulate pump speeds, fan outputs, and heating elements — enabling the SLC 500 to continuously trim energy consumption based on real process demand rather than fixed setpoints.

When the control system includes an 1747-AENTR EtherNet/IP adapter, the memory module ensures that the Ethernet communication configuration survives power loss events, maintaining uninterrupted data exchange with SCADA systems and energy management platforms. This continuity is essential for facilities that rely on real-time power monitoring dashboards to identify inefficiencies and dispatch maintenance resources proactively.

In panel configurations that include a 2711P-T7C22D9P PanelView Plus 7 HMI, the SLC 500 processor — backed by the 1747-M11/B — provides stable tag data for energy trend displays, motor runtime counters, and fault history screens. Operators can monitor kilowatt-hour consumption per production cycle and identify equipment that is drawing more power than expected, enabling targeted corrective action before energy waste escalates into equipment failure.

Power Optimization in Real Production Lines

In a typical discrete manufacturing environment, the 1747-M11/B contributes to energy optimization through three primary mechanisms: program integrity, rapid recovery, and consistent control execution.

Program Integrity: Control programs stored on the 1747-M11/B are immune to battery failure and RAM corruption. This means that energy-saving subroutines — such as motor sleep timers, demand-based conveyor speed scaling, and compressed-air pressure reduction during idle periods — remain intact and execute reliably shift after shift. Facilities that have experienced program loss due to battery failure often discover that replacement programs lack the fine-tuned energy parameters of the original, resulting in measurably higher utility bills until the issue is identified and corrected.

Rapid Line Recovery: When a power interruption occurs, the time required to restore production is directly proportional to energy waste. Motors idling at low speed while operators wait for a PLC to be reprogrammed, compressed air systems bleeding pressure through open solenoids, and heating elements cycling unnecessarily during extended restarts all represent avoidable energy expenditure. The 1747-M11/B enables the SLC 500 processor to restore its program in seconds rather than hours, minimizing this recovery energy penalty and returning the line to its optimized operating state as quickly as possible.

Consistent Control Execution: Energy optimization in industrial automation is not a one-time configuration — it is an ongoing process of fine-tuning PID parameters, adjusting VFD speed references, and refining I/O logic to match actual production conditions. The 1747-M11/B ensures that every optimization made by the controls engineer is preserved and executed consistently, without drift or degradation. This consistency is the foundation of predictable energy consumption and reliable production throughput.

From a maintenance cost perspective, the 1747-M11/B reduces the frequency of emergency service calls related to program loss. Each unplanned maintenance event carries not only direct labor and parts costs but also the indirect cost of energy wasted during unplanned downtime. By eliminating program loss as a failure mode, the 1747-M11/B contributes to a lower total cost of ownership for the entire SLC 500 control system.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to functional testing prior to shipment, and covered by a 12-month warranty. Inventory is maintained in stock for immediate dispatch, supporting both planned maintenance schedules and urgent replacement requirements.

Energy Optimization FAQ

Q1: How does the 1747-M11/B contribute to energy savings in an SLC 500 system?
The 1747-M11/B preserves the control program — including all energy-saving logic such as motor sleep timers, VFD speed profiles, and demand-based output control — in non-volatile EEPROM memory. This ensures that optimized control parameters are never lost due to power interruptions or battery failure, maintaining consistent energy-efficient operation across all production shifts.

Q2: Which SLC 500 processors are compatible with the 1747-M11/B?
The 1747-M11/B is compatible with SLC 500 fixed and modular processors including the 1747-L532, 1747-L541, 1747-L543, and 1747-L553. It is recommended to verify the processor firmware revision against the module compatibility matrix prior to installation to ensure full read/write functionality.

Q3: Can the 1747-M11/B be used as a direct replacement for the 1747-M11 (without /B revision)?
In most applications, the /B revision is backward compatible with earlier SLC 500 processor generations. However, revision-specific compatibility should be confirmed against the processor’s user manual or by consulting ZYPLC’s technical team before substitution in a live production environment.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every 1747-M11/B unit shipped by ZYPLC undergoes functional verification testing prior to dispatch, confirming read/write integrity and communication with the SLC 500 processor. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement or repair support with minimal lead time to protect production continuity.
