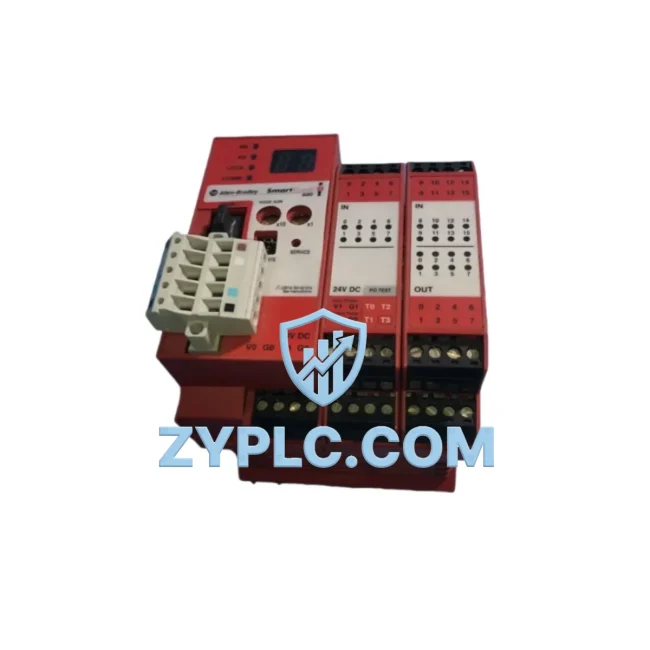

Allen-Bradley 1752-L24BBB Industrial Network Interface for SmartGuard 600 Systems

Allen-Bradley 1752-L24BBB Industrial Network Interface for SmartGuard 600 Systems: Closing the Safety Data Loop in Smart Factories

In modern industrial environments, safety and productivity are no longer separate concerns — they are deeply intertwined across every layer of the automation network. The Allen-Bradley 1752-L24BBB SmartGuard 600 Safety Controller is engineered to sit at the heart of this convergence, delivering deterministic safety logic execution, real-time DeviceNet communication, and seamless integration with Rockwell Automation’s Connected Enterprise architecture. With 24 configurable safety I/O points and a compact DIN-rail form factor, the 1752-L24BBB enables machine builders and system integrators to deploy IEC 61508 SIL 2 / ISO 13849 PLd-compliant safety networks without sacrificing network transparency or diagnostic depth.

Network Communication Table

Connected Automation Data Flow

The 1752-L24BBB does not operate in isolation — it is the safety intelligence node within a broader industrial data chain. At the field level, safety sensors and light curtains connect directly to the controller’s 24 I/O points, transmitting E-stop signals, guard door status, and two-hand control states in real time. The 1752-IB16 safety input module and 1752-OB16 safety output module can extend the I/O footprint when machine complexity demands additional safety zones, all communicating over the same DeviceNet Safety segment.

Moving up the network hierarchy, the 1752-L24BBB exchanges safety-tagged data packets with a GuardLogix 5580 (e.g., 1756-L83ES) or a CompactLogix 5380 controller acting as the supervisory PLC. This controller-to-controller safety handshake is mediated through the DeviceNet trunk, ensuring that any safety fault detected at the field level propagates immediately to the supervisory layer — triggering coordinated machine stop sequences across multiple axes and zones.

For plants running a hybrid EtherNet/IP backbone, the 1734-AENT EtherNet/IP adapter bridges the DeviceNet Safety segment to the plant’s standard Ethernet infrastructure. Managed switches such as the Stratix 5700 (1783-US8T) provide the Layer 2 switching fabric, enforcing VLAN segmentation between safety traffic and standard automation data — a critical design requirement in IEC 62443-compliant industrial cybersecurity architectures.

At the drive layer, PowerFlex 525 variable frequency drives receive speed-reference and enable signals from the supervisory PLC, while the 1752-L24BBB independently monitors the safe-torque-off (STO) feedback loop. This dual-channel architecture ensures that even if the standard control network experiences a communication delay, the safety controller maintains its independent watchdog function — a design principle central to functional safety in smart factory deployments.

Operator visibility is delivered through a PanelView Plus 7 HMI connected via EtherNet/IP to the ControlLogix backplane (via 1756-EN2T communication module). The HMI surfaces real-time safety status, zone fault codes, and reset prompts — giving operators actionable information without requiring access to the engineering workstation. SCADA systems such as FactoryTalk View SE aggregate this data plant-wide, enabling production managers to monitor safety event trends, mean-time-between-faults (MTBF), and compliance reporting from a centralized dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation: safety PLCs that cannot communicate with standard automation controllers, DeviceNet segments that are invisible to EtherNet/IP SCADA systems, and safety I/O that generates fault data with no path to the historian. The 1752-L24BBB directly addresses this isolation problem through its native CIP Safety implementation, which allows safety data to coexist on the same DeviceNet physical medium as standard I/O — eliminating the need for separate, parallel wiring harnesses.

For system integrators tasked with modernizing brownfield plants, the 1752-L24BBB’s compatibility with RSNetWorx for DeviceNet means that existing DeviceNet infrastructure — scanners, cables, terminators — can be reused. The controller’s electronic data sheet (EDS) file integrates directly into Studio 5000 Logix Designer, enabling unified project management across safety and standard control domains. This dramatically reduces commissioning time and the risk of configuration mismatches between safety and standard I/O maps.

Remote diagnostics are equally important in distributed manufacturing environments. The 1752-L24BBB exposes detailed fault diagnostics — including input discrepancy faults, output verification failures, and watchdog timeouts — through the DeviceNet explicit messaging channel. These diagnostics can be polled by the supervisory PLC and forwarded to the SCADA historian, enabling predictive maintenance workflows that flag degrading safety channels before they cause unplanned downtime.

Production line transparency is further enhanced by the controller’s support for safety zone partitioning. A single 1752-L24BBB can manage multiple independent safety zones — robot work cells, press guarding, conveyor interlocks — each with its own reset logic and fault isolation. This zone-based architecture prevents a fault in one area from cascading into a full-line shutdown, maximizing overall equipment effectiveness (OEE) while maintaining the required safety integrity level across all zones.

System expansion is straightforward: additional 1752-IB16 input modules or 1752-OB16 output modules can be added to the DeviceNet segment as production requirements evolve, without requiring changes to the supervisory PLC program or the SCADA configuration. This scalability makes the 1752-L24BBB a long-term platform investment rather than a point solution.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1752-L24BBB on a DeviceNet Safety network?
The 1752-L24BBB operates with a configurable Requested Packet Interval (RPI) as low as 5 ms on the DeviceNet Safety segment. Safety response times are deterministic and compliant with SIL 2 / PLd requirements, ensuring that E-stop and guard door signals are processed and acted upon within the system’s defined safety reaction time — typically well under 100 ms for standard machine guarding applications.

Q2: Is the 1752-L24BBB compatible with EtherNet/IP-based SCADA and HMI systems?
Yes. While the 1752-L24BBB’s native protocol is DeviceNet Safety, it integrates into EtherNet/IP architectures through bridge modules such as the 1734-AENT or via the ControlLogix / GuardLogix backplane with a 1756-EN2T communication module. This allows FactoryTalk View SE, FactoryTalk Historian, and third-party SCADA platforms to access safety status data over standard EtherNet/IP connections.

Q3: How does the 1752-L24BBB handle network stability in electrically noisy industrial environments?
DeviceNet uses a differential CAN bus physical layer (ISO 11898), which provides inherent noise immunity in environments with variable frequency drives, welding equipment, and high-current switching loads. The 1752-L24BBB additionally implements CIP Safety’s black-channel protocol, which adds sequence numbering, time-stamping, and CRC verification to every safety data packet — ensuring data integrity independent of the underlying network’s noise characteristics.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 1752-L24BBB unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including power-on self-test (POST) validation, I/O channel continuity checks, and DeviceNet communication handshake confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for integration and commissioning queries.
