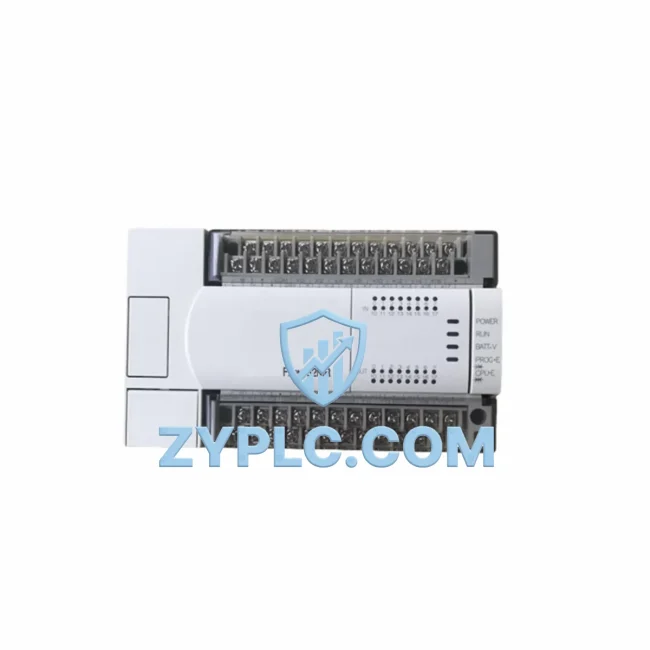

Mitsubishi FX2N-32MT-001 Energy-Saving PLC for Optimized FX2N Automation
The Mitsubishi FX2N-32MT-001 is a high-performance programmable logic controller from Mitsubishi Electric’s MELSEC FX2N series, engineered to deliver precision motor control, reduced energy consumption, and optimized production line throughput in demanding industrial environments. With 16 DC input points and 16 transistor sink output points, this compact PLC main unit is purpose-built for applications where cycle time accuracy, power efficiency, and long-term reliability are non-negotiable.
In modern manufacturing facilities, energy waste is rarely caused by a single component — it accumulates across poorly coordinated control loops, oversized actuators running at full load, and unmonitored idle states. The FX2N-32MT-001 addresses this at the control layer by enabling high-speed scan cycles (as fast as 0.08 μs per basic instruction), allowing the controller to respond to process changes faster and reduce the dwell time of energy-intensive equipment between productive cycles. The result is measurable improvement in equipment utilization and a reduction in unnecessary power draw during non-productive intervals.
Efficiency Performance Table
| Parameter |
Specification |
| Model |
FX2N-32MT-001 |
| Series |
MELSEC FX2N |
| I/O Points |
32 (16 IN / 16 OUT) |
| Output Type |
Transistor (Sink) |
| Power Supply |
100–240V AC |
| Instruction Speed |
0.08 μs / basic instruction |
| Program Memory |
8,000 steps (expandable to 16,000) |
| Running Efficiency |
High-speed scan, minimal idle energy draw |
| Compatible Systems |
MELSEC FX2N, FX2NC, FX3U (via adapter), GOT2000 HMI |
| Communication |
RS-422 built-in; CC-Link via FX2N-32CCL expansion |
| Application Environment |
0–55°C, 35–85% RH non-condensing, IP20 |
| Energy Optimization Value |
Reduces idle-state power draw; enables precise motor ON/OFF sequencing |
| Warranty |
12 Months |
Energy-Aware Automation Architecture
The FX2N-32MT-001 operates most effectively when integrated into a layered automation architecture where each component contributes to system-wide energy awareness. At the drive level, pairing this PLC with a Mitsubishi FR-D720S variable frequency drive allows the controller to modulate motor speed in real time based on load demand signals — eliminating the energy penalty of running motors at fixed full speed during partial-load conditions. This combination is particularly effective in conveyor systems, pump stations, and fan control applications where load varies significantly across the production cycle.
For analog process feedback, the FX2N-4AD analog input module enables the FX2N-32MT-001 to receive real-time current, voltage, or temperature signals from field sensors, allowing the PLC program to make energy-aware decisions — such as reducing actuator duty cycles when process variables are within tolerance. On the output side, the FX2N-2DA analog output module provides precise 0–10V or 4–20mA control signals to proportional valves and servo amplifiers, replacing inefficient on/off switching with smooth, energy-proportional control.
Digital I/O expansion is handled cleanly through the FX2N-16EX input expansion module, which adds 16 additional DC input points without increasing the base unit’s power consumption footprint. For applications requiring distributed I/O across a production cell, the FX2N-32CCL CC-Link communication module enables the FX2N-32MT-001 to participate in a CC-Link network, coordinating with remote I/O stations, intelligent slave devices, and energy meters across the line — all without the latency of traditional polling architectures.
Operator visibility is provided through the Mitsubishi GOT2000 series HMI, which connects to the FX2N-32MT-001 via RS-422 and displays real-time energy consumption trends, alarm states, and production KPIs. When operators can see energy data at the machine level, they are empowered to identify and eliminate waste in real time. For communication protocol bridging, the FX2N-CNV-BD communication board expands the base unit’s connectivity options, enabling integration with SCADA systems and energy management platforms via RS-232C or RS-485.
Power supply stability for the control panel is maintained by the Mitsubishi Q61P power supply module in larger system configurations, ensuring clean, regulated DC power to all control components and preventing voltage sag events that can cause spurious outputs and unplanned stops. For servo-based positioning axes, the FX2N-8EYR relay output expansion module provides additional discrete outputs for servo enable, brake release, and fault reset signals, keeping the servo amplifier in its most energy-efficient operating state between motion commands.
Power Optimization in Real Production Lines
In a typical discrete manufacturing environment, the FX2N-32MT-001 contributes to energy optimization across three operational phases: startup sequencing, steady-state production, and idle management.
During startup, the PLC’s high-speed instruction processing allows it to execute staggered motor start sequences — preventing the simultaneous inrush current spikes that occur when multiple motors start at the same time. By introducing controlled delays between motor enable outputs, the FX2N-32MT-001 reduces peak demand charges and protects upstream power distribution equipment from stress.
During steady-state production, the transistor output type of the FX2N-32MT-001 enables high-frequency switching for pulse train outputs to stepper drivers and servo amplifiers, supporting smooth, energy-efficient motion profiles rather than abrupt start-stop cycles. Combined with analog feedback from the FX2N-4AD, the controller can implement closed-loop energy management — adjusting actuator output in proportion to actual process demand rather than running at fixed setpoints.
During idle periods — shift changes, material replenishment, or scheduled breaks — the FX2N-32MT-001 can execute energy-saving routines that power down non-essential outputs, reduce conveyor speeds to minimum, and place servo amplifiers in standby mode. These routines, triggered by timer instructions or operator input via the GOT2000 HMI, can reduce idle-state energy consumption by a measurable percentage without requiring manual intervention from operators.
From a maintenance perspective, the FX2N-32MT-001 supports predictive maintenance strategies through its built-in special data registers, which track scan time, error history, and I/O status. By monitoring these values via the GOT2000 HMI or a connected SCADA system, maintenance teams can identify degrading sensors, sticky relays, or communication faults before they cause unplanned downtime — reducing both maintenance costs and the energy waste associated with emergency restarts and rejects.
Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including I/O point verification, communication port check, and program memory validation. Stock is maintained for fast dispatch, and all FX2N-32MT-001 units are covered by a 12-month warranty from the date of shipment.
Energy Optimization FAQ
Q1: How does the FX2N-32MT-001 help reduce energy consumption on a production line?
The FX2N-32MT-001 enables precise, high-speed control of motors, actuators, and drives. By executing staggered start sequences, supporting analog proportional control via the FX2N-2DA, and enabling idle-state energy-saving routines, it reduces both peak demand and steady-state power draw compared to relay-based or fixed-speed control systems.
Q2: Is the FX2N-32MT-001 compatible with Mitsubishi variable frequency drives and servo systems?
Yes. The transistor output type supports pulse train output for stepper and servo control, and the RS-422 port enables communication with Mitsubishi FR-D720S VFDs and MR-J series servo amplifiers. For multi-axis or network-based drive coordination, the FX2N-32CCL CC-Link module extends compatibility to the full CC-Link device ecosystem.
Q3: Can the FX2N-32MT-001 replace an existing FX2N unit without reprogramming?
In most cases, yes. The FX2N-32MT-001 is a direct drop-in replacement for other FX2N-32MT variants. Existing ladder programs, I/O wiring, and communication settings are fully compatible. ZYPLC recommends verifying the power supply voltage and output sink/source configuration before installation to ensure a seamless transition.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All FX2N-32MT-001 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes a multi-point functional test covering input response, output switching, communication port integrity, and power supply regulation. Units that do not pass testing are not shipped. Warranty claims are handled directly through ZYPLC’s technical support team.
