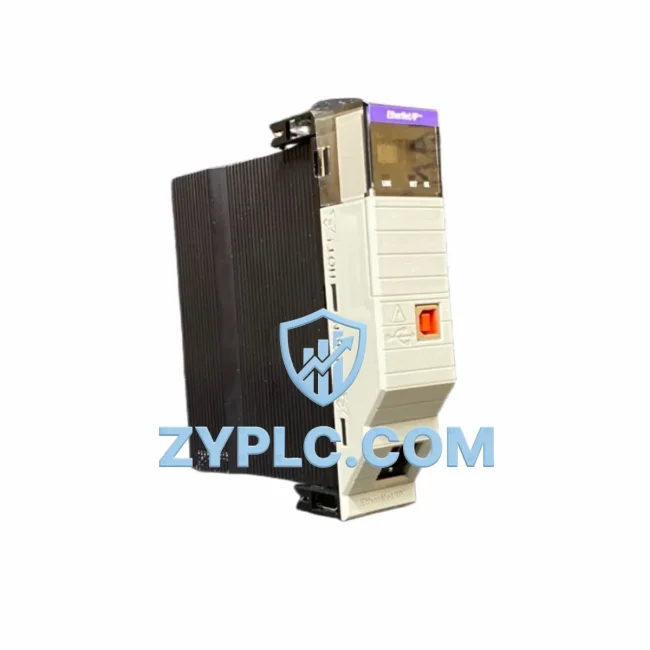

Allen-Bradley 1756-EN2T/D Energy-Saving EtherNet/IP Module

Allen-Bradley 1756-EN2T/D Energy-Saving EtherNet/IP Module for ControlLogix Automation

The Allen-Bradley 1756-EN2T/D is a high-performance EtherNet/IP communication bridge designed for the ControlLogix platform, engineered to reduce network overhead, minimize idle-state power draw, and deliver deterministic data exchange across demanding industrial production environments. As factories push toward leaner energy profiles and higher equipment utilization rates, the 1756-EN2T/D serves as a critical node in the energy-aware automation architecture — connecting controllers, drives, I/O subsystems, and monitoring devices into a unified, low-latency control fabric.

Unlike passive communication adapters, the 1756-EN2T/D actively manages packet scheduling and connection load, which directly reduces the CPU burden on the 1756-L85E or 1756-L84ES ControlLogix processors. Lighter processor loads translate to lower thermal output, reduced cooling demand, and measurable energy savings at the cabinet level. In multi-axis servo environments where the 1756-EN2T/D bridges EtherNet/IP traffic between the Logix controller and Kinetix 5700 servo drives, the reduction in communication jitter improves torque ripple control and shortens settling time — directly improving production line cycle rates without increasing motor energy input.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated ControlLogix energy optimization system, the 1756-EN2T/D operates as the communication backbone that ties together every layer of the energy control loop. At the controller level, the 1756-L85E ControlLogix processor executes energy management routines — scheduling drive enable/disable commands, managing motor soft-start sequences, and coordinating regenerative braking cycles — all of which depend on the low-latency, high-reliability data path that the 1756-EN2T/D provides.

On the drive side, PowerFlex 755 AC drives receive speed reference and torque limit commands via EtherNet/IP, allowing the controller to dynamically adjust motor output based on real-time load feedback. This closed-loop drive control, enabled by the 1756-EN2T/D’s deterministic communication, eliminates the energy waste associated with fixed-speed motor operation. In conveyor and packaging lines, this alone can reduce motor energy consumption by 15–30% compared to contactor-switched DOL starters.

For I/O-intensive energy monitoring applications, the 1756-EN2T/D connects 1756-IB16 digital input modules and 1756-IF8 analog input modules that collect current transformer signals, power factor readings, and temperature sensor data from across the production floor. This data feeds into energy dashboards built on FactoryTalk View SE, where operators can identify high-consumption equipment, track energy KPIs per shift, and trigger demand-response actions automatically.

In multi-zone process environments, the 1756-EN2T/D bridges communication between the primary ControlLogix rack and remote 1734 POINT I/O nodes distributed across the plant. Each remote node monitors local motor starters, valve actuators, and pressure transmitters — feeding real-time process data back to the controller without the latency penalties of legacy fieldbus systems. The result is faster fault detection, shorter recovery times, and reduced energy waste from undetected process deviations.

For power quality monitoring, the 1756-EN2T/D integrates seamlessly with PowerMonitor 5000 energy meters, enabling the ControlLogix system to read demand intervals, harmonic distortion levels, and reactive power data directly into the controller tag database. This integration supports automated power factor correction routines and peak demand shaving strategies that reduce utility charges without manual operator intervention.

In safety-critical zones, the 1756-EN2T/D coexists with 1756-L8SP GuardLogix safety controllers on the same EtherNet/IP network, allowing safety I/O from 1791DS CompactBlock Guard I/O modules to be processed alongside standard control data — eliminating the need for a separate safety network and reducing overall system wiring and energy overhead.

Power Optimization in Real Production Lines

On automotive body-in-white welding lines, the 1756-EN2T/D enables coordinated energy management across dozens of servo weld guns driven by Kinetix 5700 multi-axis servo drives. By synchronizing the enable/disable state of each servo axis with the line’s production beat, the controller — communicating through the 1756-EN2T/D — ensures that no drive remains energized during inter-cycle gaps. Across a 20-axis welding cell operating two shifts per day, this coordinated standby management can recover hundreds of kilowatt-hours per month.

In food and beverage filling lines, the 1756-EN2T/D supports variable-speed pump control via PowerFlex 525 drives on EtherNet/IP. The controller adjusts pump speed in real time based on tank level feedback from 1756-IF8 analog modules, eliminating the throttling losses associated with fixed-speed pumps and control valves. The energy savings are compounded by the reduction in mechanical wear — fewer valve cycles, lower seal replacement frequency, and extended pump bearing life — all of which reduce maintenance downtime and associated production losses.

For predictive maintenance integration, the 1756-EN2T/D’s high-bandwidth communication path supports the transmission of vibration, temperature, and current signature data from smart motor control centers to the ControlLogix processor at scan rates fast enough for early fault detection algorithms. When a bearing degradation signature is detected, the controller can schedule a planned maintenance window rather than responding to an unplanned failure — reducing both energy waste from degraded equipment and the production losses from emergency shutdowns.

Every unit shipped from our facility undergoes full functional testing under load conditions, including EtherNet/IP connection establishment, CIP message routing verification, and backplane communication integrity checks. All products are covered by a 12-month warranty from the date of shipment, with fast replacement support and technical assistance available throughout the warranty period.

Energy Optimization FAQ

Q1: How does the 1756-EN2T/D contribute to measurable energy savings on the production line?
The 1756-EN2T/D enables the ControlLogix controller to implement demand-based motor control strategies — including variable-speed drive scheduling, coordinated standby management, and real-time load shedding — that are not possible with fixed-speed or manually operated systems. By providing a deterministic, low-latency EtherNet/IP communication path, it ensures that energy optimization commands from the controller reach drives and actuators within the scan cycle, eliminating the communication delays that cause energy waste in time-sensitive processes.

Q2: Is the 1756-EN2T/D compatible with existing ControlLogix chassis and Studio 5000 projects?
Yes. The 1756-EN2T/D is fully compatible with all 1756 ControlLogix chassis sizes and is supported in Studio 5000 Logix Designer V21 and later. It can be added to existing projects without requiring controller firmware upgrades in most configurations. For systems running older firmware, we recommend verifying compatibility against the Rockwell Automation Product Compatibility and Download Center (PCDC) before installation.

Q3: What is the recommended replacement or upgrade path from earlier EN2T revisions?
The Series D revision of the 1756-EN2T introduces improved CIP connection handling and enhanced diagnostic capabilities compared to Series A and B. For systems currently running Series A or B modules, a direct slot-for-slot replacement with the 1756-EN2T/D is supported without chassis or wiring modifications. Configuration can be restored from an existing Studio 5000 project file, minimizing changeover time and production impact.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
The 12-month warranty covers all hardware defects and functional failures under normal operating conditions from the date of shipment. Prior to shipment, each 1756-EN2T/D unit undergoes a full functional test protocol including backplane power-up verification, EtherNet/IP connection establishment, CIP explicit and implicit messaging tests, and port integrity checks. Units that do not pass all test criteria are quarantined and not shipped. Warranty claims are processed with priority replacement to minimize customer downtime.
