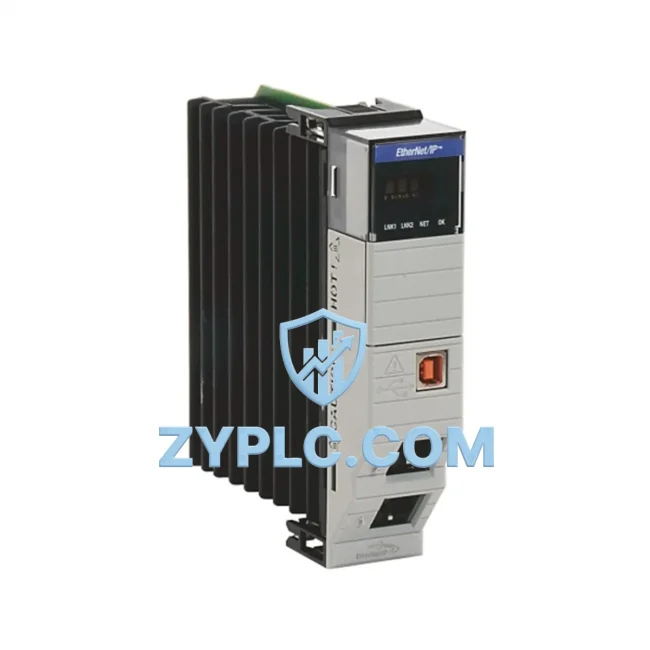

Allen-Bradley 1756-EN2TR Energy-Saving EtherNet/IP Module

Allen-Bradley 1756-EN2TR Energy-Saving EtherNet/IP Module for Optimized ControlLogix Automation

The Allen-Bradley 1756-EN2TR is a dual-port EtherNet/IP communication module engineered for the ControlLogix platform, delivering high-speed, deterministic industrial networking with a focus on energy-efficient data exchange and reduced system overhead. In modern manufacturing environments where every watt and every millisecond of downtime carries a cost, the 1756-EN2TR provides the communication backbone that enables smarter energy management, tighter motor control loops, and more responsive production line feedback — all within the Rockwell Automation ecosystem.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-EN2TR is most effective when deployed as part of a tightly integrated Rockwell Automation control architecture. In a typical energy-optimized production cell, the module sits in a 1756 ControlLogix chassis alongside a 1756-L85E ControlLogix 5580 controller, coordinating real-time I/O updates and drive commands across the EtherNet/IP network. Its dual-port DLR capability means the ring network self-heals within milliseconds of a cable fault — eliminating the need for a dedicated managed switch at every node and reducing the overall panel power budget.

On the drive side, the 1756-EN2TR communicates directly with PowerFlex 755 AC drives and PowerFlex 525 variable frequency drives over EtherNet/IP, enabling closed-loop speed and torque references that match motor output precisely to load demand. This eliminates the chronic over-speeding that wastes energy in fixed-speed installations. When paired with a 1756-IB16 digital input module and a 1756-OB16E digital output module, the controller can implement demand-based motor start/stop sequences that cut idle-running energy consumption by a measurable margin.

For servo-driven axes, the 1756-EN2TR supports coordinated motion with Kinetix 5700 servo drives via the same EtherNet/IP backbone, allowing the 1756-L85E to execute multi-axis synchronized moves without a separate motion network. This consolidation reduces cabling, lowers heat generation in the control cabinet, and simplifies energy accounting across the machine. A 1756-EN2T single-port EtherNet/IP bridge module can be used in parallel racks to extend the network without adding external switching infrastructure.

At the HMI layer, a PanelView Plus 7 terminal connected to the same EtherNet/IP ring provides operators with live energy dashboards — displaying real-time kWh consumption per production cycle, drive efficiency ratings, and alarm states — all sourced from tags managed by the ControlLogix controller through the 1756-EN2TR. This visibility is the first step toward systematic energy reduction: you cannot optimize what you cannot measure.

For power quality monitoring upstream of the drives, integrating an Allen-Bradley PowerMonitor 5000 energy meter into the EtherNet/IP network allows the same controller to log demand peaks, power factor, and harmonic distortion. The 1756-EN2TR carries this metering data back to the controller and historian without any additional communication hardware, making it straightforward to correlate energy spikes with specific production events and target them for reduction.

Power Optimization in Real Production Lines

In discrete manufacturing — automotive body shops, food and beverage filling lines, packaging machinery — the 1756-EN2TR delivers energy savings through three primary mechanisms: network consolidation, drive integration, and predictive maintenance enablement.

Network consolidation is the most immediate benefit. By supporting Device Level Ring topology natively, the 1756-EN2TR allows engineers to wire field devices — drives, I/O blocks, safety modules — in a ring without managed switches at each node. Fewer switches mean lower panel power consumption, less heat to remove from the enclosure, and a simpler bill of materials. On a line with 20 or more EtherNet/IP nodes, this can eliminate four to six 24 VDC switch power supplies, each drawing 15–25 W continuously.

Drive integration is where the largest energy savings are realized. When the ControlLogix controller — communicating through the 1756-EN2TR — sends precise speed references to PowerFlex 755 drives based on actual production demand rather than fixed setpoints, motor energy consumption tracks the load curve instead of running at full speed regardless of need. On a conveyor system running at 60% of rated speed, the affinity laws predict roughly a 78% reduction in motor power draw compared to full-speed operation. The 1756-EN2TR’s low-latency EtherNet/IP communication ensures these speed adjustments happen in real time, without the lag that would cause product quality issues or line stoppages.

Predictive maintenance is enabled by the continuous data flow the 1756-EN2TR supports. Drive diagnostic data — motor current, DC bus voltage, thermal status, fault history — flows back to the ControlLogix controller on every scan. Trend analysis in the controller or in a connected FactoryTalk Historian can flag developing faults weeks before they cause unplanned downtime. Avoiding a single unplanned stoppage on a high-throughput line can save more energy than months of incremental efficiency improvements, because restart sequences — heating ovens back to temperature, purging lines, running qualification parts — are among the most energy-intensive events in any factory.

Every 1756-EN2TR shipped by ZYPLC undergoes functional testing on a live ControlLogix rack before dispatch, verifying EtherNet/IP connectivity, DLR ring participation, and backplane communication integrity. The module is covered by a 12-month warranty from the date of shipment, with in-stock inventory available for same-week dispatch to minimize production downtime for customers requiring urgent replacement units.

Energy Optimization FAQ

Q1: How does the 1756-EN2TR contribute to measurable energy savings on a production line?
The module enables real-time, closed-loop communication between the ControlLogix controller and EtherNet/IP-connected drives such as the PowerFlex 755 and PowerFlex 525. By delivering precise speed and torque references based on actual load demand, it eliminates the energy waste of fixed-speed motor operation. Additionally, its DLR topology removes the need for multiple managed switches, reducing panel power consumption and cooling requirements.

Q2: Is the 1756-EN2TR compatible with existing ControlLogix systems and Studio 5000 projects?
Yes. The 1756-EN2TR is fully compatible with all 1756 ControlLogix chassis and is configured natively within Studio 5000 Logix Designer (and RSLogix 5000 for legacy projects). It supports standard EtherNet/IP implicit and explicit messaging, making it a drop-in upgrade or replacement for earlier single-port modules such as the 1756-ENBT or 1756-EN2T in applications requiring ring topology.

Q3: What is the recommended replacement or upgrade path if the 1756-EN2TR is end-of-life in my system?
For systems requiring higher bandwidth or enhanced cybersecurity features, the 1756-EN4TR (dual-port, 1 Gbps) is the recommended upgrade. For applications where ring topology is not required, the 1756-EN2T remains a cost-effective single-port alternative. ZYPLC can advise on compatibility and provide both new and tested-refurbished units depending on project budget and timeline.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1756-EN2TR dispatched by ZYPLC is bench-tested on a live ControlLogix rack to verify EtherNet/IP port functionality, DLR ring operation, backplane communication, and firmware version. The 12-month warranty covers hardware defects and communication failures under normal operating conditions. Customers receive a test report on request. Expedited replacement is available for in-warranty failures to minimize production impact.
