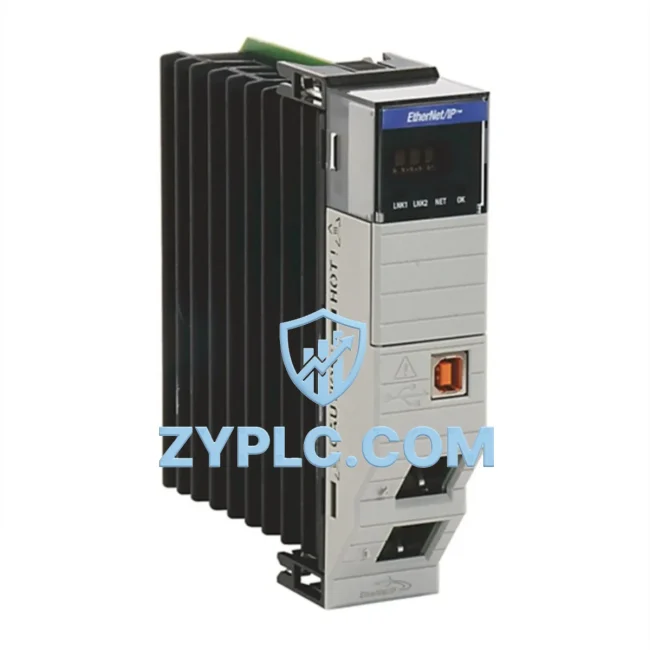

Allen-Bradley 1756-EN3TR Energy-Saving EtherNet/IP Bridge ControlLogix

Allen-Bradley 1756-EN3TR Energy-Saving EtherNet/IP Bridge ControlLogix: Precision Communication for Energy-Efficient Automation

The Allen-Bradley 1756-EN3TR is a dual-port EtherNet/IP communication bridge module engineered for the ControlLogix platform, delivering high-throughput industrial networking with a focus on minimizing communication overhead and reducing unnecessary CPU load across distributed control architectures. In modern manufacturing environments where every watt of consumed energy and every millisecond of cycle time directly impacts operational cost, the 1756-EN3TR provides the communication backbone that enables intelligent, energy-aware automation at scale.

Designed for demanding industrial environments, this module supports Device Level Ring (DLR) topology, enabling fault-tolerant network configurations that eliminate single points of failure without requiring redundant hardware switches. By maintaining continuous communication integrity, the 1756-EN3TR reduces unplanned downtime — one of the most significant hidden energy costs in any production facility, as idle machinery and restart sequences consume disproportionate power relative to steady-state operation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-EN3TR operates as the central communication node within a ControlLogix chassis, bridging field-level devices and enterprise-level SCADA or MES systems with minimal latency and deterministic data throughput. In a typical energy-optimized production cell, the module works in concert with a 1756-L85E ControlLogix Controller to execute energy-aware ladder logic — dynamically adjusting drive setpoints, conveyor speeds, and actuator dwell times based on real-time production demand signals.

On the drive side, PowerFlex 755 AC drives connected via EtherNet/IP receive speed reference commands directly from the ControlLogix backplane through the 1756-EN3TR, enabling precise motor speed regulation that eliminates the energy waste associated with fixed-speed operation. When integrated with PowerFlex 525 drives on auxiliary conveyor lines, the same communication path supports coordinated multi-axis speed profiling, ensuring that upstream and downstream equipment operates in synchronized rhythm — reducing mechanical stress and the associated energy losses from acceleration and deceleration transients.

For power quality monitoring, the 1756-EN3TR facilitates seamless data exchange with PowerMonitor 5000 energy meters installed at the main distribution panel. These meters stream real-time kWh, power factor, and harmonic distortion data back to the ControlLogix controller, where energy optimization routines can trigger load-shedding sequences or adjust drive parameters to maintain target power factor levels. This closed-loop energy feedback architecture is only possible with a high-bandwidth, low-latency communication module like the 1756-EN3TR.

At the I/O level, 1756-IB16 digital input modules and 1756-OB16E digital output modules within the same ControlLogix chassis report machine state data — door interlocks, conveyor jam sensors, motor thermal switches — through the backplane to the controller, which then uses this information to implement predictive shutdown sequences that avoid energy-intensive emergency stops. The 1756-EN3TR ensures that this local backplane intelligence is also visible to remote HMI stations and energy dashboards without introducing communication bottlenecks.

Operator visibility is provided through PanelView Plus 7 HMI terminals connected via EtherNet/IP, where production supervisors can monitor real-time energy consumption per production zone, compare shift-over-shift efficiency trends, and manually trigger energy-saving modes during scheduled low-production periods. The dual-port architecture of the 1756-EN3TR allows the HMI network and the drive control network to be physically separated, preventing HMI polling traffic from interfering with time-critical drive command cycles.

For facilities implementing IIoT energy management strategies, the 1756-EN3TR supports integration with Rockwell Automation FactoryTalk Energy Manager, enabling automated energy reporting, ISO 50001 compliance tracking, and demand response coordination with utility providers. The module’s CIP (Common Industrial Protocol) native support ensures that energy data collected at the field level is structured and tagged correctly for upstream analytics platforms without requiring protocol conversion gateways that introduce additional power consumption and latency.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the 1756-EN3TR has been deployed to coordinate communication between servo weld gun controllers, robot interface modules, and centralized energy monitoring systems. By enabling the ControlLogix controller to receive real-time weld cycle completion signals and immediately command downstream conveyors to advance — rather than relying on fixed timer-based sequencing — facilities have reported measurable reductions in conveyor idle time and the associated motor energy consumption during inter-station gaps.

In food and beverage processing plants, the module’s DLR topology support has proven particularly valuable in hygienic wash-down environments where cable damage is a recurring risk. By maintaining network continuity even when a single cable segment is compromised, the 1756-EN3TR prevents the uncontrolled equipment stops that force operators to run full restart sequences — sequences that typically consume 3–5× the steady-state power of normal operation due to motor inrush currents and heating system re-stabilization cycles.

In pharmaceutical batch manufacturing, where precise temperature and agitation control directly impacts both product quality and energy consumption, the 1756-EN3TR enables the ControlLogix system to implement adaptive PID control loops that continuously tune reactor agitator speeds and jacket heating setpoints based on real-time batch progress data. This eliminates the energy waste of fixed-setpoint operation and reduces batch cycle times, improving overall equipment effectiveness (OEE) without increasing energy input per batch.

Every unit of the Allen-Bradley 1756-EN3TR supplied by ZYPLC undergoes full functional testing prior to shipment, including communication port verification, DLR topology validation, and backplane interface checks. All units are covered by a 12-month warranty, with stock maintained for immediate dispatch to minimize production line downtime. Our inventory is sourced through verified supply channels, ensuring authenticity and traceability for every module.

Energy Optimization FAQ

Q1: How does the 1756-EN3TR contribute to measurable energy savings on the production line?
The 1756-EN3TR enables closed-loop energy optimization by providing the high-speed, deterministic communication path that allows the ControlLogix controller to receive real-time energy and process data from PowerMonitor meters, drives, and sensors — and act on that data within the same scan cycle. This eliminates the communication latency that forces engineers to add conservative energy buffers in fixed-setpoint control strategies. The result is tighter process control with lower average energy consumption per unit of output.

Q2: Is the 1756-EN3TR compatible with existing ControlLogix chassis and Studio 5000 projects?
Yes. The 1756-EN3TR is fully compatible with all ControlLogix and GuardLogix chassis variants and is configured directly within Studio 5000 Logix Designer using the standard Add-On Profile (AOP). It supports both implicit (I/O) and explicit (MSG) messaging, making it backward-compatible with existing ladder logic programs that use older 1756-ENBT or 1756-EN2T modules, typically requiring only a module swap and minor configuration update.

Q3: What is the recommended replacement or upgrade path from older EtherNet/IP bridge modules?
The 1756-EN3TR is the recommended upgrade from the 1756-EN2T and 1756-ENBT modules. The primary advantages are the addition of the second Ethernet port for DLR topology support and improved CIP connection capacity, which reduces the need for multiple bridge modules in large systems — directly reducing backplane power consumption and chassis slot usage. ZYPLC can advise on migration planning and provide both the replacement module and configuration support.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1756-EN3TR unit shipped by ZYPLC is tested for full communication functionality, including both Ethernet port operation, DLR ring recovery validation, and backplane communication integrity. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides advance replacement to minimize production downtime, with full RMA support and technical documentation.
