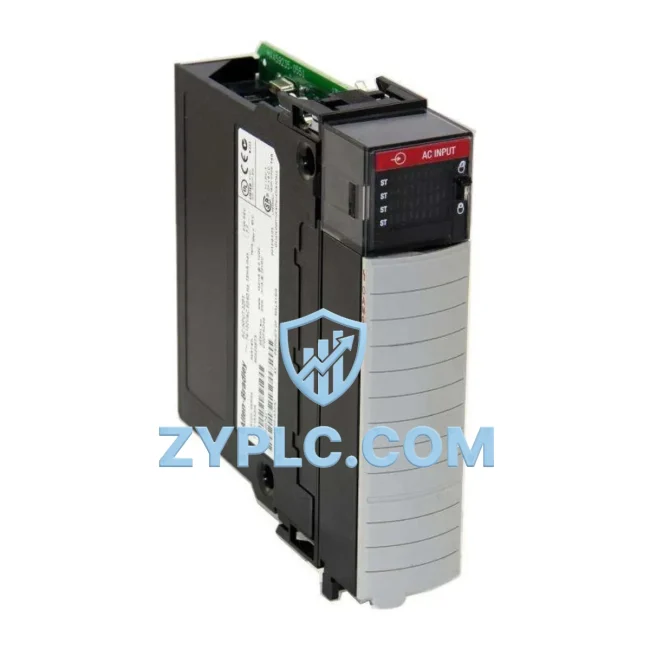

Allen-Bradley 1756-IA32 Energy-Saving Digital Input Module

Allen-Bradley 1756-IA32 Energy-Saving Digital Input Module: Precision Energy Control for ControlLogix Automation

The Allen-Bradley 1756-IA32 is a 32-point, 120V AC digital input module engineered for the ControlLogix platform, delivering high-density signal acquisition with minimal power draw per channel. In modern industrial environments where energy accountability is no longer optional, the 1756-IA32 serves as a critical front-end sensing layer — capturing discrete field signals from motors, actuators, limit switches, and safety interlocks with the accuracy and speed required to support real-time energy optimization decisions at the controller level.

Unlike passive signal conditioners, the 1756-IA32 integrates directly into the ControlLogix backplane via the 1756 chassis, enabling the 1756-L85E or 1756-L84E processor to act on field data within microseconds. This tight coupling between input acquisition and control execution is what allows plant engineers to implement demand-response logic, load-shedding sequences, and equipment duty-cycling strategies that directly reduce peak energy consumption without sacrificing throughput.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-IA32 does not operate in isolation — its value is fully realized when deployed as part of a layered energy-aware automation architecture. At the controller level, the 1756-L85E ControlLogix processor aggregates input data from the 1756-IA32 alongside analog measurements from the 1756-IF16 analog input module, which monitors current transformers and voltage transducers on motor feeders. Together, these two modules give the PLC a complete picture of both discrete machine states and continuous power consumption metrics.

On the drive side, the PowerFlex 755 AC drive receives speed reference commands from the ControlLogix processor based on the load conditions detected through the 1756-IA32 input channels. When the module detects that a conveyor end-of-travel limit switch has been triggered — indicating no product flow — the controller can immediately command the PowerFlex 755 to ramp down to a low-speed idle state, cutting motor energy consumption by 30–50% during non-productive intervals. This closed-loop interaction between discrete input sensing and variable frequency drive control is one of the most impactful energy-saving strategies available in a ControlLogix-based system.

For distributed I/O architectures, the 1756-IA32 can be paired with the 1734 POINT I/O platform at remote field panels, with data aggregated back to the main rack via the 1756-EN2T EtherNet/IP communication module. This topology reduces field wiring costs and allows energy monitoring data to flow seamlessly into the plant’s SCADA layer through RSLinx Classic or FactoryTalk Linx gateways. The 1756-OB32 digital output module complements the 1756-IA32 on the output side, executing switching commands for contactors, solenoids, and motor starters based on the energy optimization logic running in the processor.

At the HMI layer, a PanelView Plus 7 terminal connected via EtherNet/IP provides operators with real-time visibility into equipment states, energy consumption trends, and alarm conditions — all driven by the discrete signal data captured by the 1756-IA32. Maintenance teams can use this interface to identify equipment that is consuming power outside of its normal operating window, enabling proactive intervention before a fault occurs.

For power quality monitoring, the 1756-IA32 works alongside dedicated energy metering devices such as the PowerMonitor 5000, which feeds harmonic distortion, power factor, and demand data back into the ControlLogix tag database via EtherNet/IP. This integration allows the PLC to correlate discrete machine events — captured by the 1756-IA32 — with power quality anomalies, enabling root-cause analysis of energy waste at the machine level.

Power Optimization in Real Production Lines

In automotive body welding lines, the 1756-IA32 monitors the discrete outputs of weld gun position sensors, part-present detectors, and robot home signals. By feeding this data into the ControlLogix processor, the system can implement a coordinated standby strategy: when the line enters a scheduled micro-stop or changeover, the processor commands the PowerFlex 755 drives on all non-critical conveyors to enter energy-saving mode simultaneously, rather than waiting for individual operators to intervene. Plants implementing this strategy have reported measurable reductions in idle-state energy consumption across multi-robot welding cells.

In food and beverage packaging lines, the 1756-IA32 captures signals from product flow sensors, reject gate actuators, and case erector limit switches. The ControlLogix processor uses this data to dynamically adjust conveyor speeds via PowerFlex AC drives, matching line throughput to actual product availability rather than running at fixed maximum speed. This demand-driven speed control approach reduces motor energy consumption during low-throughput periods while maintaining line OEE targets.

In water treatment facilities, the 1756-IA32 monitors pump run/stop status, valve position feedback, and level switch signals across multiple lift stations. The ControlLogix system uses this discrete input data to implement pump sequencing algorithms that distribute runtime evenly across multiple pump units, preventing premature wear on any single motor and reducing peak demand charges by avoiding simultaneous pump starts. Predictive maintenance alerts are generated when the module detects abnormal cycling patterns — such as a pump starting and stopping more frequently than its baseline — indicating a potential check valve failure or level sensor drift before it causes a process upset.

All units are tested prior to shipment, with functional verification of all 32 input channels under simulated field conditions. Stock is maintained for immediate dispatch, and each module is covered by a 12-month warranty against manufacturing defects, ensuring supply continuity for MRO and project procurement teams.

Energy Optimization FAQ

Q1: How does the 1756-IA32 contribute to measurable energy savings in a ControlLogix system?
The 1756-IA32 provides the discrete signal acquisition layer that enables the ControlLogix processor to implement demand-responsive control strategies. By accurately detecting machine states — running, idle, faulted, or in standby — the processor can command PowerFlex drives and output modules to reduce power delivery to motors and actuators during non-productive intervals. The energy savings are realized at the drive and motor level, but they are only possible because the 1756-IA32 provides the real-time field data the controller needs to make those decisions.

Q2: Is the 1756-IA32 compatible with existing ControlLogix chassis and Studio 5000 projects?
Yes. The 1756-IA32 is fully compatible with all 1756 ControlLogix chassis sizes (4, 7, 10, 13, and 17 slots) and is supported in Studio 5000 Logix Designer V21 and later. It can be added to an existing project without requiring a processor firmware upgrade in most cases. The module’s electronic data sheet (EDS) is available through the Rockwell Automation Product Compatibility and Download Center for seamless integration into existing configurations.

Q3: Can the 1756-IA32 replace an older 1756-IA16 module, and what are the considerations?
The 1756-IA32 offers twice the input density of the 1756-IA16, making it a suitable upgrade for applications where additional discrete inputs are needed without expanding the chassis footprint. The wiring interface uses a removable terminal block (RTB), so field wiring can be transferred with minimal rework. Logic changes in Studio 5000 are required to map the additional 16 input points, and the module’s filter time settings should be reviewed to ensure compatibility with the response time requirements of the existing application.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Each 1756-IA32 unit undergoes functional testing of all 32 input channels prior to shipment, verifying correct signal detection, filter response, and backplane communication. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with original or equivalent packaging to prevent transit damage. For warranty claims or technical support, contact our team directly — replacement units are dispatched from available stock to minimize production downtime.
