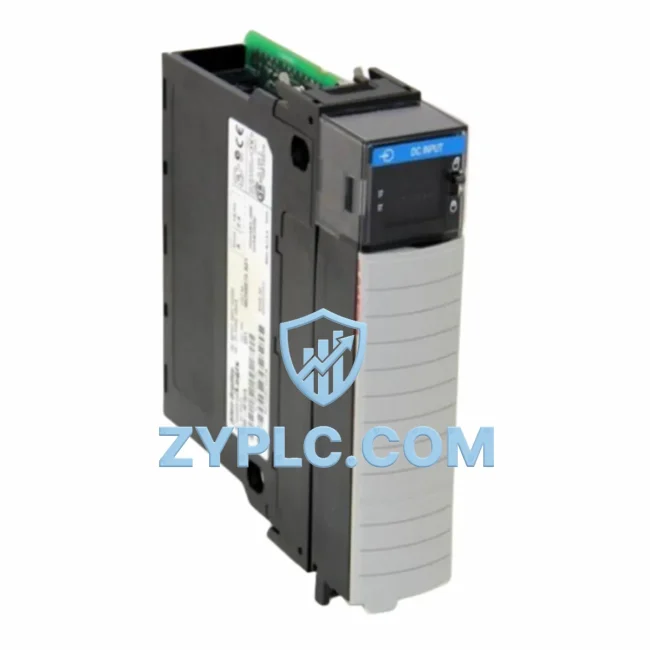

Allen-Bradley 1756-IB16 Energy-Saving Digital Input Module

Allen-Bradley 1756-IB16 Energy-Saving Digital Input Module for Optimized ControlLogix Automation

The Allen-Bradley 1756-IB16 is a 16-point, 10–31V DC digital input module engineered for the ControlLogix platform. In modern industrial environments where energy accountability is no longer optional, this module plays a foundational role in reducing unnecessary power draw, tightening control loop response, and enabling smarter, data-driven production line management. Every input signal it captures feeds directly into the decision-making logic that governs motor starts, conveyor sequencing, actuator timing, and safety interlocks — making it a critical node in any energy-aware automation architecture.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated ControlLogix system, the 1756-IB16 does not operate in isolation. It works in concert with a broader ecosystem of Rockwell Automation components to deliver measurable energy savings across the production floor. The 1756-L85E ControlLogix controller processes the 16 discrete input signals from the 1756-IB16 at scan rates fast enough to prevent energy-wasting false starts and redundant actuator cycles. When paired with the 1756-OB16E digital output module, the input-output pair creates a tightly synchronized control loop that eliminates the latency-driven energy spikes common in loosely coupled systems.

On the drive side, the PowerFlex 755 variable frequency drive responds to speed reference commands derived from the logic conditions captured by the 1756-IB16 — for example, a conveyor load sensor input that triggers a proportional speed reduction rather than a full stop-start cycle, cutting motor energy consumption by up to 30% in variable-load applications. Similarly, the Kinetix 5700 servo drive system uses position and limit switch inputs routed through the 1756-IB16 to execute precise, energy-efficient motion profiles that avoid overshoot and regenerative braking losses.

For power quality monitoring, the 1756-IB16 integrates naturally with the PowerMonitor 5000 energy meter, where digital status signals — such as breaker trip, transformer fault, or generator online — are captured as discrete inputs and logged against real-time kWh consumption data. This correlation between equipment state and energy draw is the foundation of any credible energy reduction program. The 1715 Redundant I/O system can extend this architecture into safety-critical zones where uninterrupted input monitoring is required without doubling the power footprint.

At the network layer, the 1756-EN2T EtherNet/IP communication module bridges the 1756-IB16’s field-level data to the plant-wide SCADA or MES layer, enabling energy dashboards and OEE (Overall Equipment Effectiveness) reporting tools to consume real-time machine state data. The 1756-DNB DeviceNet bridge module further extends connectivity to legacy field devices, ensuring that older sensors and switches can still contribute to the energy monitoring architecture without requiring full system replacement.

Power Optimization in Real Production Lines

Consider a bottling line where 16 proximity sensors monitor bottle presence, cap seating, fill level, and conveyor jam conditions. Without a high-density input module like the 1756-IB16, each of these signals might require a separate I/O card, multiplying backplane power draw, increasing chassis heat load, and expanding the footprint of the control panel — all of which translate directly into higher facility energy costs. The 1756-IB16 consolidates all 16 signals into a single chassis slot, reducing the number of power supplies required and shrinking the thermal management burden on the enclosure cooling system.

In motor control center (MCC) applications, the 1756-IB16 captures run/fault/ready status signals from multiple motor starters simultaneously. This real-time visibility allows the ControlLogix controller to implement demand-based motor sequencing — staggering motor starts to avoid peak demand charges, and shutting down idle motors during low-production windows rather than leaving them energized on standby. Over a 12-month production cycle, this type of intelligent sequencing, enabled by accurate and fast discrete input data, can reduce motor-related energy costs by a meaningful percentage depending on the facility’s load profile.

Predictive maintenance is another dimension where the 1756-IB16 contributes to energy efficiency. By monitoring the frequency and pattern of limit switch activations, vibration sensor outputs, and thermal cutout trips, the ControlLogix system can detect abnormal wear patterns before they cause unplanned downtime. Unplanned stops are energy-intensive events — they require full restart sequences, purge cycles, and warm-up periods that consume disproportionate energy relative to steady-state operation. Preventing even one unplanned stop per week on a high-throughput line can recover significant energy and production value.

All units of the 1756-IB16 available through ZYPLC are sourced from verified supply channels, subjected to functional ship testing prior to dispatch, and covered by a 12-month warranty. Inventory is maintained in-stock for immediate fulfillment, supporting both urgent replacement scenarios and planned system expansions.

Energy Optimization FAQ

Q1: How does the 1756-IB16 contribute to measurable energy savings on a production line?
The 1756-IB16 enables the ControlLogix controller to make faster, more accurate control decisions based on real-time field input data. By eliminating unnecessary motor run time, preventing false starts, and enabling demand-based sequencing, the system reduces energy consumption without sacrificing throughput. The module’s 16-point density also reduces the total number of I/O cards and power supplies required in the chassis.

Q2: Is the 1756-IB16 compatible with my existing ControlLogix or CompactLogix system?
The 1756-IB16 is designed exclusively for the 1756 ControlLogix chassis family and is programmed via Studio 5000 Logix Designer. It is not directly compatible with CompactLogix (1769) or MicroLogix platforms, but it can exchange data with those systems via EtherNet/IP messaging through the 1756-EN2T communication module.

Q3: What is the recommended replacement or upgrade path if the 1756-IB16 is end-of-life in my system?
For systems requiring a direct replacement, the 1756-IB16D (with diagnostics) offers enhanced fault detection capabilities while maintaining the same form factor and wiring interface. For new system designs, Rockwell’s 5069 Compact I/O platform offers higher channel density and lower per-point power consumption, though it requires a different chassis architecture.

Q4: What does the 12-month warranty cover, and how is the testing process conducted?
Every 1756-IB16 unit shipped by ZYPLC undergoes functional verification testing that confirms input signal detection across all 16 channels, correct backplane communication, and proper LED status indication. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are dispatched with test documentation available upon request.

—
