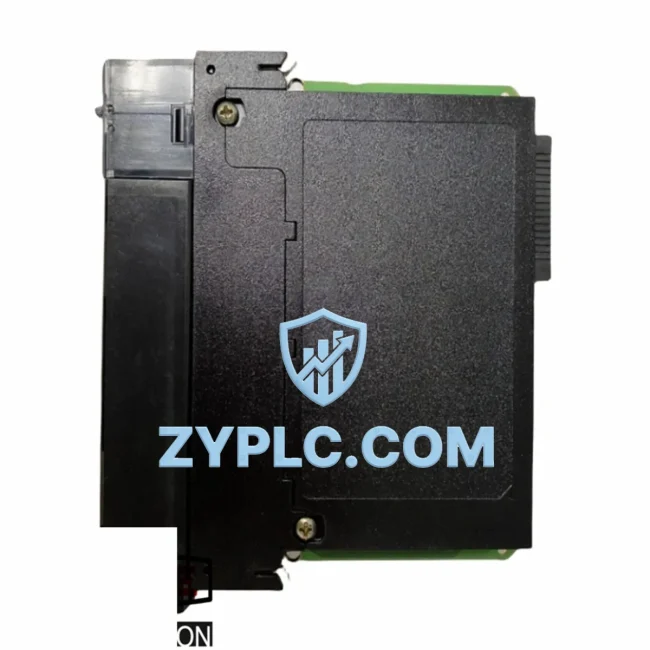

Allen-Bradley 1756-IF16IH Energy-Saving Analog Input for ControlLogix

Allen-Bradley 1756-IF16IH Energy-Saving Analog Input for ControlLogix Automation

The Allen-Bradley 1756-IF16IH is a high-density, high-impedance analog input module designed for the ControlLogix platform, engineered to deliver precision signal acquisition across 16 differential channels. In modern industrial environments where energy efficiency and process optimization are non-negotiable, the 1756-IF16IH plays a foundational role in capturing real-time field data — from current loop signals to voltage measurements — enabling the control system to make intelligent, energy-aware decisions at every stage of production.

Unlike conventional analog input modules, the 1756-IF16IH is built to handle high-impedance signal sources with exceptional accuracy, making it ideal for applications involving precision energy transducers, power quality meters, and process transmitters. When integrated into a ControlLogix chassis alongside the 1756-L85E or 1756-L73 controller, the module feeds high-fidelity analog data directly into the control program, allowing engineers to implement closed-loop energy management strategies that reduce unnecessary motor run time, optimize drive loading, and eliminate idle-state power waste.

In facilities running variable frequency drives such as the PowerFlex 755 or PowerFlex 525, the 1756-IF16IH provides the analog feedback layer that enables precise speed reference tuning. By continuously monitoring process variables — pressure, flow, temperature, or torque — the module allows the PLC to dynamically adjust drive output, ensuring motors operate at their most efficient point on the torque-speed curve. This directly translates to measurable reductions in kWh consumption per production cycle.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-IF16IH does not operate in isolation — its value is fully realized when deployed as part of a tightly integrated ControlLogix automation architecture. In a typical energy-optimized production cell, the module sits in a 1756-A17 or 1756-A10 chassis alongside digital I/O modules such as the 1756-IB16 and 1756-OB16E, forming a complete signal acquisition and actuation backbone. The 1756-EN2T EtherNet/IP communication module bridges the chassis to the plant network, enabling real-time data exchange with SCADA systems and energy management platforms.

On the drive side, analog output references generated by the ControlLogix controller — via the 1756-OF8 analog output module — are sent to PowerFlex 755 variable frequency drives, which regulate motor speed based on the process feedback captured by the 1756-IF16IH. This feedback loop is the core of energy-efficient motor control: rather than running motors at fixed speed, the system continuously adjusts output to match actual load demand, cutting energy consumption during partial-load conditions by 20–40%.

For facilities requiring distributed I/O, the 1756-IF16IH architecture can be extended via POINT I/O modules (1734 series) connected over DeviceNet or EtherNet/IP, allowing analog signal collection from remote field devices without running long analog cable runs — reducing signal degradation and improving measurement accuracy. The 1769-L30ER CompactLogix controller can serve as a local node controller in satellite panels, feeding data upstream to the main ControlLogix system.

Power quality monitoring is further enhanced when the 1756-IF16IH is paired with dedicated energy metering devices such as the PowerMonitor 5000, which provides harmonic analysis, power factor data, and demand trending. The analog outputs of the PowerMonitor feed directly into the 1756-IF16IH channels, giving the ControlLogix program a continuous, high-resolution view of facility power consumption — enabling demand response strategies and peak shaving routines that reduce utility costs.

For operator visibility, a PanelView Plus 7 HMI connected via EtherNet/IP displays real-time energy dashboards, trend charts, and alarm states derived from the analog data processed by the 1756-IF16IH. Operators can monitor per-zone energy consumption, identify inefficient equipment, and respond to process deviations before they escalate into costly downtime events.

Power Optimization in Real Production Lines

In real-world production environments, the 1756-IF16IH delivers measurable impact across multiple dimensions of operational efficiency. Consider a packaging line where conveyor motors, filling stations, and sealing units all draw variable loads throughout the production cycle. Without accurate analog feedback, the control system cannot distinguish between a fully loaded conveyor and one running empty — both receive the same drive command, wasting energy during low-demand phases.

With the 1756-IF16IH installed and configured to monitor load current signals from each drive zone, the ControlLogix program can implement zone-based speed control: conveyors slow down when product density drops, filling pumps reduce flow rate when upstream buffers are full, and sealing units enter low-power standby when the line pauses. These micro-optimizations, applied consistently across a full production shift, compound into significant energy savings — often 15–30% reduction in motor-related energy consumption.

Predictive maintenance is another area where the 1756-IF16IH contributes directly to cost reduction. By trending analog signals over time — motor current draw, vibration sensor outputs, temperature readings from process transmitters — the ControlLogix program can detect gradual degradation patterns that precede equipment failure. Maintenance teams receive early warnings, allowing planned interventions during scheduled downtime rather than emergency repairs during production hours. This reduces both maintenance costs and the energy waste associated with running degraded equipment at reduced efficiency.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including channel-by-channel calibration verification and backplane communication checks. Each 1756-IF16IH is backed by a 12-month warranty, ensuring your production line investment is protected from day one. In-stock availability means reduced lead times and faster line commissioning — critical for facilities operating on tight production schedules.

Energy Optimization FAQ

Q1: How does the 1756-IF16IH contribute to energy savings in a ControlLogix system?
The 1756-IF16IH provides high-resolution analog feedback from field devices such as current transducers, flow meters, and pressure transmitters. This data enables the ControlLogix controller to implement closed-loop control strategies — adjusting drive speeds, valve positions, and pump outputs in real time to match actual process demand. The result is elimination of over-driving and idle-state energy waste, with typical motor energy savings of 15–40% depending on application.

Q2: Is the 1756-IF16IH compatible with my existing ControlLogix chassis and controllers?
Yes. The 1756-IF16IH is fully compatible with all standard 1756 ControlLogix chassis (1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17) and works with ControlLogix controllers including the 1756-L71, 1756-L72, 1756-L73, 1756-L74, 1756-L75, and 1756-L85E. No special firmware or hardware modifications are required for integration.

Q3: Can the 1756-IF16IH replace other analog input modules in my system?
The 1756-IF16IH is specifically designed for high-impedance signal sources and is the recommended replacement for applications previously using the 1756-IF16 in high-impedance configurations. For standard 4–20mA loop-powered transmitter applications, it is also a direct functional replacement. Always verify channel configuration and wiring compatibility before substitution. ZYPLC technical support can assist with compatibility assessment.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1756-IF16IH supplied by ZYPLC is tested prior to shipment: each of the 16 analog input channels is verified for signal accuracy, the module is confirmed to communicate correctly on the ControlLogix backplane, and firmware version is checked. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Warranty claims are processed promptly with advance replacement options available to minimize production downtime.
