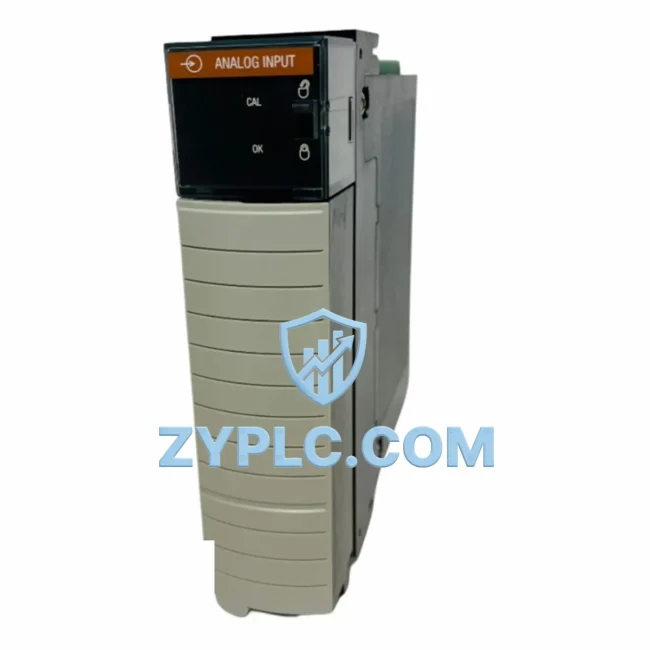

Allen-Bradley 1756-IF8 Energy-Saving Analog Input Module

Allen-Bradley 1756-IF8 Energy-Saving Analog Input Module for Optimized ControlLogix Automation

The Allen-Bradley 1756-IF8 is an 8-channel analog input module designed for the ControlLogix platform, delivering precision signal acquisition that forms the backbone of energy-aware industrial automation. In modern manufacturing environments where every kilowatt-hour counts, the 1756-IF8 enables real-time energy data collection from field sensors, current transformers, and power transducers — giving control engineers the granular visibility needed to identify inefficiencies, reduce idle-state consumption, and optimize motor drive scheduling across the production line.

Unlike generic I/O modules, the 1756-IF8 supports simultaneous sampling across all 8 channels with high-resolution 16-bit conversion, ensuring that energy fluctuations — even transient spikes from variable-frequency drives or servo amplifiers — are captured accurately and fed into the ControlLogix 1756-L85E processor for real-time decision-making. This tight integration between analog signal acquisition and the control processor eliminates the latency that typically causes energy waste during load transitions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-IF8 operates at the heart of a layered energy optimization architecture. At the field level, it collects analog signals from power meters, pressure transducers, and temperature sensors wired directly to the module’s screw-terminal interface. These signals are processed by the 1756-L85E ControlLogix processor, which executes energy management logic written in Studio 5000 Logix Designer — including load shedding routines, peak demand limiting, and motor start sequencing.

On the drive side, the 1756-IF8 analog outputs (when paired with the 1756-OF8 analog output module) send 4–20mA speed reference signals to PowerFlex 755 variable-frequency drives, enabling smooth motor acceleration profiles that dramatically reduce inrush current and mechanical wear. The PowerFlex 755 drives, in turn, report actual motor current and torque feedback through the EtherNet/IP network back to the ControlLogix rack, closing the energy control loop.

For distributed energy monitoring across large facilities, the 1756-IF8 works alongside the 1756-EN2T EtherNet/IP communication module, which bridges the ControlLogix backplane to the plant-wide SCADA or MES system. Energy data collected by the 1756-IF8 can be historized in FactoryTalk Historian and visualized on PanelView Plus 7 HMI terminals, giving operators real-time dashboards of energy consumption per production cell.

In servo-driven applications — such as precision cutting, packaging, or press operations — the 1756-IF8 monitors torque reference signals from Kinetix 5700 servo drives, enabling the ControlLogix controller to detect abnormal load conditions before they escalate into faults. This predictive capability reduces unplanned downtime and the associated energy waste of emergency restarts and re-homing cycles.

The module also integrates seamlessly with 1756-IB16 digital input modules for machine state detection (running, idle, fault), allowing the control program to automatically reduce drive speeds or disable auxiliary systems during non-productive intervals — a simple but highly effective energy-saving strategy in multi-shift operations.

Power Optimization in Real Production Lines

In a typical automotive body shop or food processing line, the 1756-IF8 is deployed to monitor the analog outputs of power quality analyzers installed at each motor control center (MCC). By continuously sampling current draw from conveyor motors, pump stations, and HVAC compressors, the ControlLogix system can identify machines running above their optimal load point — a common source of hidden energy waste that manual inspection rarely catches.

When the 1756-IF8 detects that a pump motor is consistently drawing 15% above its rated current during a specific production phase, the ControlLogix processor can automatically adjust the speed reference sent to the PowerFlex 40 drive controlling that pump, trimming energy consumption without affecting process output. Over a three-shift operation, this type of closed-loop energy correction can reduce motor energy consumption by 8–20%, depending on the load profile.

The module’s simultaneous sampling capability is particularly valuable in synchronizing energy data with production events. By time-stamping analog readings against the machine cycle — captured via 1756-IB16 digital inputs monitoring cam switches or proximity sensors — engineers can correlate energy spikes with specific process steps, identify inefficient motion profiles, and optimize the Kinetix 5700 servo parameters to reduce peak power demand during acceleration phases.

From a maintenance perspective, trending the analog signals from the 1756-IF8 over time reveals gradual degradation in motor insulation, bearing wear, or pump cavitation — all of which manifest as subtle changes in current waveform before causing catastrophic failure. This predictive maintenance capability, enabled by the module’s high-resolution data, directly reduces both maintenance costs and the energy penalty of running degraded equipment.

All units supplied by ZYPLC are sourced from verified supply channels, undergo pre-shipment functional testing, and are covered by a 12-month warranty. In-stock inventory ensures fast dispatch to minimize production downtime.

Energy Optimization FAQ

Q1: How does the 1756-IF8 contribute to energy savings in a ControlLogix system?
The 1756-IF8 provides high-resolution analog data from field energy sensors, enabling the ControlLogix processor to execute real-time load management, drive speed optimization, and demand response logic. By giving the control system accurate, simultaneous readings from all 8 channels, it eliminates the blind spots that lead to over-driving motors and wasting energy during low-demand periods.

Q2: Is the 1756-IF8 compatible with existing ControlLogix 1756 chassis and Studio 5000 projects?
Yes. The 1756-IF8 is fully compatible with all 1756-series chassis and is configured directly within Studio 5000 Logix Designer. It supports both RSLogix 5000 legacy projects and current Studio 5000 environments, making it a drop-in replacement or expansion module for existing ControlLogix installations without requiring controller firmware upgrades.

Q3: What is the recommended replacement or upgrade path if the 1756-IF8 is end-of-life in my system?
For systems requiring higher channel density or enhanced diagnostics, the 1756-IF16 (16-channel analog input) is the natural upgrade. For applications requiring integrated energy metering, pairing the 1756-IF8 with a PowerMonitor 5000 energy meter provides a comprehensive power quality and consumption monitoring solution within the same ControlLogix architecture.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 1756-IF8 unit shipped by ZYPLC undergoes functional verification testing prior to dispatch, including channel accuracy checks, input range validation, and backplane communication verification. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize impact on your production schedule.
