Allen-Bradley 1756-IM16I System-Ready Digital Input for ControlLogix Architecture

Allen-Bradley 1756-IM16I System-Ready Digital Input for ControlLogix Architecture

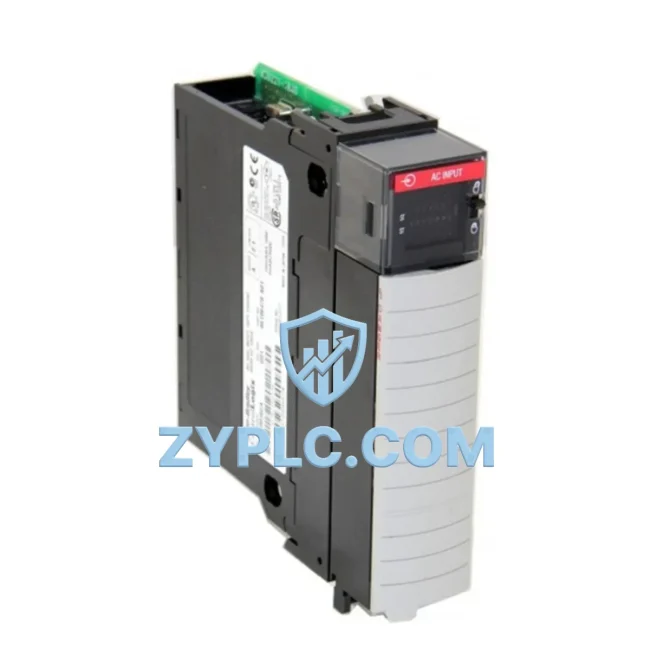

The Allen-Bradley 1756-IM16I is a 16-point isolated digital input module engineered for seamless integration within the Rockwell Automation ControlLogix platform. Designed to operate as a precision signal acquisition layer in multi-tier industrial control architectures, this module delivers reliable field-level data to the control layer with the electrical isolation and signal integrity demanded by mission-critical automation environments. Whether deployed in a primary control chassis or a remote I/O rack, the 1756-IM16I supports consistent system performance across manufacturing, energy, petrochemical, water treatment, and heavy-industry applications.

In a fully layered automation system, the 1756-IM16I occupies the I/O layer — the critical interface between field instrumentation and the CPU processing core. Its isolated input design ensures that transient voltages, ground loops, and electrical noise from field devices do not propagate into the control backplane, protecting upstream components such as the 1756-L85E or 1756-L84E ControlLogix CPU modules from signal corruption. This isolation characteristic is especially valuable in high-voltage industrial environments such as power distribution substations, mining conveyor systems, and petrochemical process units where field wiring may carry significant electrical interference.

Architecture Specification Table

Coordinated Control System Design

The 1756-IM16I achieves its full value when integrated within a coordinated ControlLogix system architecture. At the control layer, the module communicates directly with ControlLogix CPUs such as the 1756-L85E or 1756-L73, delivering digitized field input states via the high-speed ControlLogix backplane. The backplane itself — housed in chassis options including the 1756-A10 or 1756-A17 — provides the physical and electrical foundation for module co-location, enabling deterministic scan-cycle performance across all installed I/O modules.

Power integrity for the 1756-IM16I and its co-resident modules is maintained by the 1756-PA75R or 1756-PB75 power supply modules, which provide regulated backplane power with sufficient headroom for fully populated chassis configurations. In redundancy-critical applications, dual power supplies with the 1756-PSCA2 power supply chassis adapter ensure uninterrupted operation even during a single power supply failure — a design requirement in continuous-process industries such as oil refining and chemical manufacturing.

For distributed I/O architectures where field devices are located far from the main control panel, the 1756-IM16I can be installed in remote chassis connected via ControlNet or EtherNet/IP communication networks. Communication interface modules such as the 1756-CN2R (ControlNet) or 1756-EN2T (EtherNet/IP) bridge the remote chassis to the primary controller, maintaining real-time data exchange with minimal latency. This distributed topology is widely adopted in large-scale water treatment plants, mining operations, and multi-zone manufacturing lines where centralized wiring is impractical.

On the output side, the 1756-IM16I works in tandem with digital output modules such as the 1756-OB16I isolated digital output module, forming a complete isolated I/O pair for applications requiring strict electrical separation between input sensing circuits and output actuation circuits. This pairing is standard practice in high-voltage switchgear control, motor control centers, and safety-instrumented system (SIS) architectures where cross-circuit interference must be eliminated.

Human-machine interface integration is achieved through PanelView Plus 7 terminals or SCADA systems communicating over EtherNet/IP, providing operators with real-time visibility into the input states monitored by the 1756-IM16I. Tag-based data exchange between the HMI and the ControlLogix CPU ensures that field signal status is accurately reflected on operator displays without additional configuration overhead.

Application in Layered Automation Systems

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the 1756-IM16I monitors discrete signals from proximity sensors, limit switches, and safety interlocks across multiple production zones. Its isolated input design prevents ground-loop interference between independently powered machine sections, ensuring reliable signal acquisition even in electrically noisy environments with variable-frequency drives and servo amplifiers operating nearby.

Power Generation & Electrical Utilities: Substations and power generation facilities rely on isolated digital input modules to monitor breaker status, relay contact states, and protection relay outputs. The 1756-IM16I’s channel-to-channel isolation is essential in these environments, where field wiring may be exposed to high-voltage transients and induced currents from adjacent power conductors. Integration with the ControlLogix platform enables centralized SCADA monitoring and automated fault response.

Petrochemical & Refinery Process Control: In continuous-process petrochemical plants, the 1756-IM16I acquires digital status signals from field instruments including pressure switches, flow switches, and valve position indicators. The module’s robust isolation and diagnostic capabilities support the high-availability requirements of process control systems where unplanned shutdowns carry significant safety and financial consequences.

Water & Wastewater Treatment: Municipal water treatment facilities use the 1756-IM16I to monitor pump run/stop status, valve open/close feedback, and level switch states across geographically distributed pump stations. Remote chassis connected via EtherNet/IP allow a single ControlLogix CPU to supervise multiple remote I/O nodes, reducing infrastructure costs while maintaining centralized control and data logging.

Mining & Metallurgy: Conveyor systems, crusher controls, and ore processing equipment in mining operations generate significant electrical noise. The 1756-IM16I’s isolated input architecture provides the noise immunity required to maintain reliable signal acquisition in these harsh environments, supporting continuous production monitoring and automated safety shutdowns.

Architecture Engineering FAQ

Q1: Is the 1756-IM16I compatible with all ControlLogix chassis and CPU generations?
The 1756-IM16I is compatible with all standard 1756-series ControlLogix chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It operates with all ControlLogix CPU generations supported by RSLogix 5000 and Studio 5000 Logix Designer, including the 1756-L6x and 1756-L8x series. Electronic keying configured in Studio 5000 ensures module identity verification at startup, preventing accidental substitution with incompatible module types during maintenance.

Q2: How does the 1756-IM16I support redundant control architectures?
In ControlLogix redundancy configurations using the 1756-RM2 redundancy module, the 1756-IM16I installed in a remote I/O chassis continues to deliver field input data to whichever CPU — primary or secondary — is currently in control. The redundancy switchover is transparent to the I/O modules, ensuring uninterrupted signal acquisition during controller failover events. For applications requiring I/O-level redundancy, dual remote chassis with mirrored 1756-IM16I modules can be configured to provide complete I/O path redundancy.

Q3: What does the 12-Month Warranty cover, and what long-term maintenance support does ZYPLC provide?
ZYPLC’s 12-Month Warranty covers the 1756-IM16I against manufacturing defects and functional failures under normal operating conditions from the date of purchase. During the warranty period, ZYPLC provides replacement or repair at no additional cost. Beyond the warranty period, ZYPLC maintains inventory of both current-production and legacy ControlLogix I/O modules to support long-term maintenance programs, minimizing the risk of production disruption due to obsolete or hard-to-source components. Our technical team is available to assist with module configuration, system compatibility verification, and installation guidance.
