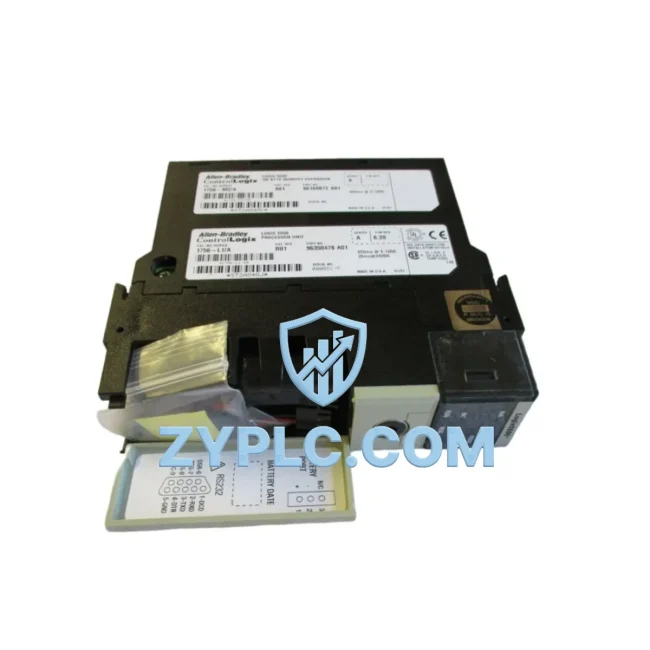

Allen-Bradley 1756-L1M2 Energy-Saving PLC for ControlLogix

Allen-Bradley 1756-L1M2 Energy-Saving PLC for ControlLogix Automation

The Allen-Bradley 1756-L1M2 is a Logix5550 processor module within the ControlLogix platform, engineered to deliver precise, energy-aware control across demanding industrial environments. As factories face increasing pressure to reduce operational energy costs while maintaining high throughput, the 1756-L1M2 serves as the central intelligence layer that coordinates energy consumption across every connected subsystem — from drive-level regulation to field-level I/O response. Its deterministic scan cycle and efficient memory architecture minimize idle processing overhead, ensuring that every watt consumed by the control system translates directly into productive machine output.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated ControlLogix system, the 1756-L1M2 processor does not operate in isolation — it orchestrates a layered architecture of components that collectively determine how efficiently a production line consumes energy. At the drive level, the processor communicates with PowerFlex 755 variable frequency drives via EtherNet/IP, enabling dynamic speed regulation that matches motor output precisely to load demand. Rather than running motors at fixed speeds, the 1756-L1M2 issues real-time velocity references that reduce motor energy draw during low-load intervals — a critical factor in facilities where motors account for 60–70% of total electrical consumption.

For motion-critical applications, the 1756-L1M2 coordinates with Kinetix 6500 servo drives through the Integrated Motion on EtherNet/IP architecture. This tight coupling eliminates the latency associated with traditional pulse-train command interfaces, allowing the processor to execute coordinated multi-axis moves with minimal overshoot and energy waste. The 1756-M02AE motion module can be added to the same chassis to extend analog encoder feedback, further refining position accuracy and reducing the corrective motion cycles that consume excess power.

On the I/O side, the 1756-L1M2 manages distributed 1756-IB16 digital input modules and 1756-OB16E digital output modules across the chassis, enabling the processor to monitor machine states in real time and suppress unnecessary actuator energization. When combined with 1756-IF8 analog input modules connected to current transducers or power meters, the system gains direct visibility into per-zone energy consumption — allowing the processor logic to trigger load-shedding routines during peak demand windows without operator intervention.

At the network layer, the 1756-EN2T EtherNet/IP communication module bridges the ControlLogix backplane to the plant Ethernet infrastructure, enabling the 1756-L1M2 to exchange energy data with SCADA systems, MES platforms, and energy management software in real time. This connectivity supports closed-loop energy optimization strategies where production scheduling is adjusted dynamically based on live power consumption telemetry. For facilities using ControlNet as a deterministic field bus, the 1756-CN2 ControlNet module provides a complementary high-speed path for time-critical I/O updates that must not be delayed by Ethernet traffic congestion.

Human-machine interaction is handled through PanelView Plus 7 terminals running FactoryTalk View ME, which display live energy dashboards, drive status, and alarm conditions directly on the production floor. Operators can monitor real-time kWh consumption per production zone, compare current cycle energy against baseline targets, and initiate energy-saving operating modes without accessing the engineering workstation. This visibility layer is essential for sustaining energy discipline across shifts and production changeovers.

Power Optimization in Real Production Lines

The practical energy impact of the 1756-L1M2 becomes most visible in continuous-process and high-cycle discrete manufacturing environments. In a typical automotive body assembly line, the processor’s ability to synchronize conveyor drive ramp profiles with robot cycle times eliminates the energy spikes caused by unsynchronized acceleration events. By programming the 1756-L1M2 to issue coordinated start commands to multiple PowerFlex 755 drives simultaneously — rather than allowing each drive to respond independently to a common run signal — facilities have documented measurable reductions in peak demand charges on their utility bills.

In food and beverage processing, where sanitation cycles and product changeovers create frequent start-stop sequences, the 1756-L1M2’s event-driven task architecture ensures that pumps, mixers, and conveyors are energized only when process conditions require it. Idle equipment is placed in a low-power standby state through output logic that de-energizes contactors and signals drives to enter sleep mode, reducing standby losses across dozens of motor loads simultaneously. The processor’s diagnostic data — accessible via RSLogix 5000 online monitoring — provides maintenance teams with the cycle count and runtime hours needed to schedule predictive maintenance before energy-wasting mechanical degradation occurs.

For facilities managing multiple production cells, the 1756-L1M2 supports Producer/Consumer communication, allowing energy-relevant data tags — such as instantaneous power draw, accumulated kWh, and drive fault codes — to be broadcast across the ControlLogix network without polling overhead. Upstream systems can consume this data to build energy consumption profiles per product SKU, enabling production planners to schedule energy-intensive operations during off-peak tariff windows and reduce overall electricity costs without sacrificing throughput targets.

Every 1756-L1M2 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including backplane communication verification, memory integrity checks, and I/O channel validation. Stock is maintained for immediate dispatch, supporting urgent replacement scenarios where production downtime directly translates to energy and revenue loss. A 12-month warranty covers all units, providing procurement teams with the confidence to standardize on this processor across multiple lines without long-term supply risk.

Energy Optimization FAQ

Q1: How does the 1756-L1M2 contribute to measurable energy savings on a production line?
The 1756-L1M2 enables energy savings primarily through precise control timing and drive coordination. By issuing optimized start/stop sequences to connected PowerFlex variable frequency drives and servo systems, the processor eliminates unnecessary motor energization and reduces peak demand events. When paired with analog power monitoring modules such as the 1756-IF8, the processor can execute load-shedding logic automatically based on real-time consumption data.

Q2: Is the 1756-L1M2 compatible with current ControlLogix chassis and Studio 5000 software?
The 1756-L1M2 is a Logix5550-generation processor designed for the 1756 ControlLogix chassis family. It is programmed using RSLogix 5000. Facilities running Studio 5000 Logix Designer should verify firmware compatibility and consider whether a higher-memory Logix5560 or Logix5570 processor better suits expanded project requirements. ZYPLC can advise on direct replacement options based on your existing program size and I/O configuration.

Q3: What is the recommended replacement or upgrade path for the 1756-L1M2?
For applications requiring expanded memory or enhanced motion capabilities, the 1756-L61 (Logix5561) or 1756-L71 (Logix5571) processors offer direct chassis compatibility with increased user memory and integrated EtherNet/IP ports. ZYPLC maintains stock of multiple ControlLogix processor variants and can provide a compatibility assessment to ensure your existing I/O configuration, motion axes, and communication modules remain fully supported after the upgrade.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 1756-L1M2 units supplied by ZYPLC are tested for backplane communication integrity, memory read/write performance, and basic I/O channel functionality before dispatch. The 12-month warranty covers hardware defects and operational failures under normal industrial operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost. Expedited replacement stock is maintained to minimize production downtime in the event of a warranty claim.
