Allen-Bradley 1756-L55M22 System-Ready Processor for ControlLogix Architecture

Allen-Bradley 1756-L55M22 System-Ready Processor for ControlLogix Architecture

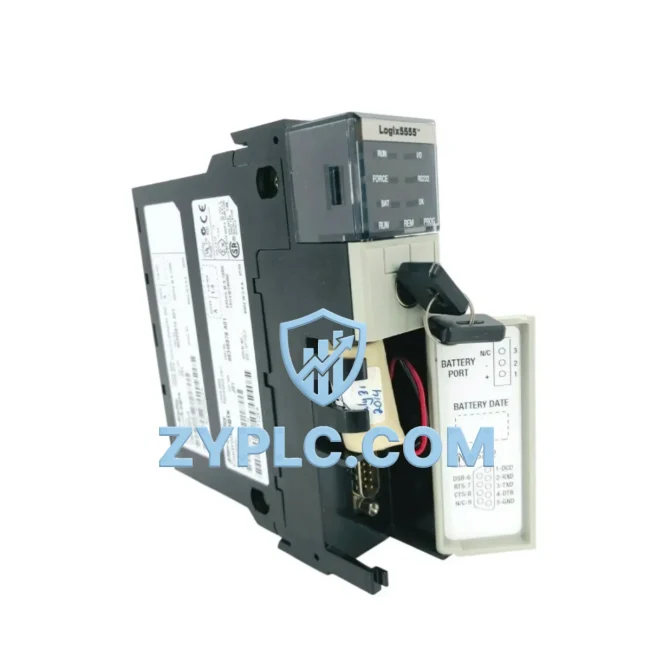

The Allen-Bradley 1756-L55M22 Logix5555 Processor is a high-performance control engine designed for deployment within the Rockwell Automation ControlLogix 1756 Series platform. With 1.5MB of non-volatile user memory and full compatibility with the ControlLogix backplane architecture, this processor module serves as the computational core of multi-layer industrial automation systems. Its role extends far beyond standalone operation — the 1756-L55M22 is engineered to function as the central decision-making node in a coordinated control hierarchy that spans the control layer, I/O layer, network layer, power layer, HMI layer, and execution layer simultaneously.

In modern industrial environments — whether in power generation, petrochemical processing, water treatment, mining, metallurgy, or discrete manufacturing — system architects require processors that deliver deterministic scan times, reliable communication throughput, and seamless integration with distributed I/O and field devices. The 1756-L55M22 meets these demands through its Logix5555 engine, which supports structured text, ladder diagram, function block diagram, and sequential function chart programming environments within the RSLogix 5000 / Studio 5000 Logix Designer software suite.

From a system architecture perspective, the 1756-L55M22 occupies the control layer of the automation pyramid. It communicates upstream with SCADA and MES systems via EtherNet/IP or ControlNet, and downstream with distributed I/O racks, remote chassis, and field instrumentation through the 1756 ControlLogix backplane and communication bridge modules. This Contextual Integration capability ensures that the processor does not operate in isolation but rather as a synchronized participant in a broader automation ecosystem.

Architecture Specification Table

Coordinated Control System Design

The 1756-L55M22 achieves its full potential when integrated within a complete ControlLogix system architecture. At the power layer, the 1756-PA72 or 1756-PB72 power supply modules provide stable DC bus voltage to the chassis, ensuring uninterrupted processor operation even under fluctuating load conditions. For redundant power configurations in critical infrastructure applications, dual power supply arrangements using the 1756-PA75 are commonly deployed alongside the processor.

At the I/O layer, the processor communicates with digital and analog I/O modules such as the 1756-IB16 (16-point 24VDC digital input), 1756-OB16E (16-point electronically fused digital output), and 1756-IF8 (8-channel analog input module). These modules reside in the same chassis or in remote 1756 expansion racks connected via the 1756-CN2 ControlNet bridge module or the 1756-ENBT EtherNet/IP bridge, enabling distributed I/O architectures across large plant floors.

At the network layer, the 1756-ENBT or 1756-EN2T EtherNet/IP communication modules extend the processor’s reach to remote I/O racks, variable frequency drives, servo controllers, and SCADA systems. For legacy DeviceNet field device integration, the 1756-DNB DeviceNet scanner module bridges the gap between older field instrumentation and the modern ControlLogix platform.

At the HMI layer, PanelView Plus terminals — such as the 2711P-T10C21D8S — connect to the 1756-L55M22 via EtherNet/IP, providing operators with real-time process visualization, alarm management, and recipe control. This tight HMI-to-controller integration reduces operator response time and improves overall system transparency.

For applications requiring high availability, the 1756-L55M22 can be paired with a redundancy chassis kit using the 1756-RM redundancy module, enabling hot-standby processor configurations where a secondary processor takes over control within milliseconds of a primary fault — a critical requirement in power generation, oil and gas, and water treatment facilities.

Application in Layered Automation Systems

Manufacturing & Discrete Production Lines: In automotive assembly, electronics manufacturing, and packaging lines, the 1756-L55M22 manages multi-axis motion coordination, conveyor sequencing, and quality inspection triggers. Its deterministic scan time ensures precise synchronization between robotic end-effectors, servo drives, and vision systems.

Power Generation & Electrical Utilities: Substation automation and turbine control systems rely on the ControlLogix platform for its proven reliability and IEC 61850-compatible communication gateways. The 1756-L55M22 handles protection relay coordination, load shedding logic, and generator synchronization sequences.

Petrochemical & Oil and Gas Processing: In upstream and downstream process control, the processor manages PID control loops for pressure, temperature, and flow regulation. Its compatibility with HART-enabled analog I/O modules and Foundation Fieldbus gateways makes it suitable for SIL-rated safety instrumented system architectures when paired with appropriate safety I/O modules.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 1756-L55M22 to control pump stations, chemical dosing systems, and filtration sequences. Remote I/O expansion via EtherNet/IP allows centralized control of geographically distributed pump stations from a single processor node.

Mining & Metallurgy: Conveyor belt management, crusher control, and smelting process automation benefit from the processor’s robust operating temperature range and its ability to handle high-density I/O configurations across multiple remote chassis in harsh underground or open-pit environments.

Architecture Engineering FAQ

Q1: Is the 1756-L55M22 compatible with the current Studio 5000 Logix Designer software environment?
A: Yes. The 1756-L55M22 Logix5555 processor is fully supported within Studio 5000 Logix Designer (v21 and above) as well as the legacy RSLogix 5000 environment. Project files created for this processor can be managed, backed up, and restored through the standard Logix Designer project workflow. For new system deployments, it is recommended to verify firmware revision compatibility between the processor and the Studio 5000 version in use.

Q2: Can the 1756-L55M22 be used in a redundant controller configuration, and what additional hardware is required?
A: The 1756-L55M22 supports ControlLogix redundancy when paired with the 1756-RM (Redundancy Module) and a secondary 1756-L55M22 processor in a mirrored chassis configuration. The redundancy system requires matched firmware versions on both processors, a dedicated fiber or copper synchronization cable between the two redundancy modules, and compatible 1756 chassis and power supplies. This configuration provides sub-100ms failover for continuous process applications.

Q3: What does the 12-Month Warranty cover, and how is it handled for international customers?
A: The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related hardware malfunctions. It does not cover damage resulting from improper installation, electrical overstress, or unauthorized modification. For international customers, warranty claims are processed through ZYPLC’s global support channel. Replacement units are dispatched from available stock, and advance replacement arrangements can be made for critical production environments. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty claim.
