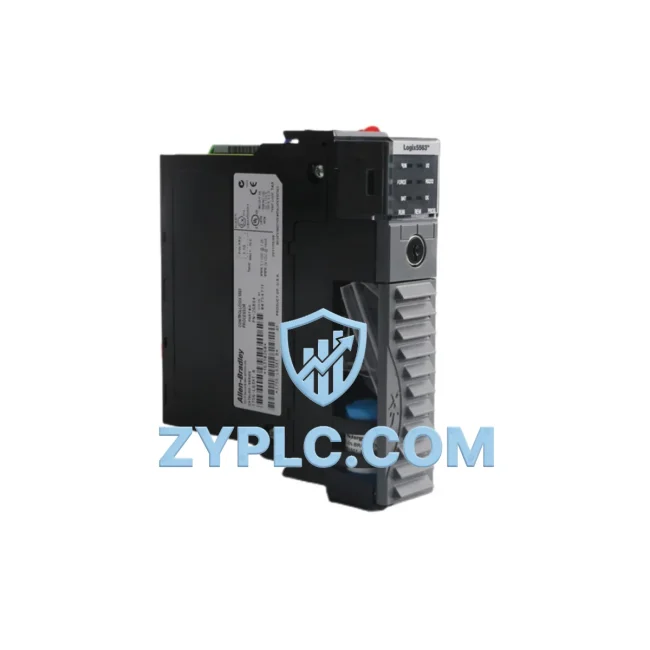

The Allen-Bradley 1756-L63XT is a high-performance ControlLogix-XT processor engineered for extreme-temperature and harsh-environment industrial control architectures. Built on the Logix5563 engine, this processor module occupies the controller layer of a layered automation system, coordinating signal flow across I/O subsystems, communication networks, power distribution, HMI interfaces, and field-level actuators. Its role within the 1756 XT chassis ecosystem makes it a cornerstone component for engineers designing resilient, scalable, and maintainable control platforms in demanding industrial environments.

Unlike standard ControlLogix processors, the 1756-L63XT is rated for extended temperature operation, making it suitable for outdoor enclosures, foundry floors, and process environments where ambient conditions exceed the tolerance of conventional hardware. This thermal robustness does not compromise processing capability — the Logix5563 core delivers 8 MB of user memory, deterministic scan-time execution, and full support for Rockwell Automation’s Integrated Architecture framework.

Architecture Specification Table

Coordinated Control System Design

The 1756-L63XT does not operate in isolation — its value is fully realized when integrated within a coordinated ControlLogix-XT system architecture. At the chassis level, the processor slots into an 1756-A10XT or 1756-A17XT XT-rated backplane, sharing the high-speed backplane bus with co-resident I/O and communication modules. Power is supplied by the 1756-PAXT or 1756-PBXT XT-rated power supply modules, which are designed to maintain stable DC rail output across the full XT temperature range.

For network connectivity, the 1756-EN2T EtherNet/IP communication module bridges the processor to plant-level SCADA systems, historian servers, and remote I/O adapters over standard Ethernet infrastructure. In applications requiring ControlNet determinism, the 1756-CNB or 1756-CNBR ControlNet bridge module extends the control network to remote 1756 racks or 1794 FLEX I/O drops. DeviceNet integration is achieved through the 1756-DNB scanner module, enabling direct communication with distributed field devices such as variable frequency drives, smart sensors, and valve manifolds.

At the I/O layer, the 1756-L63XT manages both local and remote analog and digital modules. Typical co-resident modules include the 1756-IB16 24VDC digital input module, 1756-OB16E electronically fused digital output module, and 1756-IF8 analog input module for process variable acquisition. For motion control applications, the processor coordinates with 1756-M02AE servo drive interface modules, enabling closed-loop axis control within the same Logix program environment.

Redundancy is a critical design consideration in high-availability architectures. The 1756-RM2XT redundancy module pairs with a secondary 1756-L63XT chassis to provide hot-standby controller redundancy, ensuring seamless bumpless transfer in the event of a primary controller fault. This configuration is widely adopted in power generation, oil and gas, and water treatment facilities where unplanned downtime carries significant operational and safety consequences.

HMI integration is achieved through PanelView Plus terminals or FactoryTalk View SE distributed display clients, which communicate with the 1756-L63XT via EtherNet/IP using native Logix tag browsing. This eliminates the need for OPC translation layers and simplifies tag management across the control system lifecycle.

Application in Layered Automation Systems

The 1756-L63XT is deployed across a broad spectrum of industrial sectors where environmental severity and control reliability intersect. In power generation and electrical utilities, the processor manages turbine control sequences, excitation system interlocks, and switchgear automation within outdoor or semi-outdoor control buildings subject to wide temperature swings. Its XT rating eliminates the need for expensive climate-controlled enclosures in many installations, reducing both capital and ongoing maintenance costs.

In oil and gas upstream and midstream facilities, the 1756-L63XT serves as the primary controller for wellhead automation, pipeline SCADA RTU replacement, and compressor station control. Its ability to operate in cold climates without enclosure heating systems makes it particularly valuable in northern field installations. The processor’s support for redundant controller configurations aligns with the safety integrity requirements of these applications.

In mining and mineral processing, the processor coordinates crusher sequencing, conveyor interlocking, and flotation cell control across large distributed plant layouts. Remote I/O drops connected via ControlNet or EtherNet/IP extend the control reach to field junction boxes hundreds of meters from the main control room, with the 1756-L63XT maintaining deterministic scan times across the entire I/O tree.

For water and wastewater treatment facilities, the processor manages pump station sequencing, chemical dosing control, and SCADA data aggregation. Its long operational lifespan and 12-Month Warranty coverage from ZYPLC support the extended asset lifecycles typical of municipal infrastructure projects. In metallurgical and steel processing plants, the 1756-L63XT withstands the radiant heat and electromagnetic interference common to furnace and rolling mill environments, maintaining reliable program execution where standard processors would require additional protective measures.

Architecture Engineering FAQ

Q1: Is the 1756-L63XT compatible with standard 1756 ControlLogix chassis, or does it require XT-specific hardware?
The 1756-L63XT is designed exclusively for use with XT-rated 1756 chassis (1756-A7XT, 1756-A10XT, 1756-A13XT, 1756-A17XT) and XT-rated power supplies (1756-PAXT, 1756-PBXT). It cannot be installed in standard 1756 chassis. However, it communicates seamlessly with standard ControlLogix I/O modules and communication modules co-resident in the XT chassis, and it supports all standard Logix programming constructs within Studio 5000 Logix Designer, ensuring full software compatibility with existing ControlLogix programs.

Q2: Can the 1756-L63XT be used in a redundant controller configuration, and what additional hardware is required?
Yes. The 1756-L63XT supports ControlLogix redundancy when paired with the 1756-RM2XT redundancy module. A redundant system requires two identical 1756-L63XT processors in separate XT chassis, each equipped with a 1756-RM2XT module and matched communication modules. The redundancy module manages synchronization of controller data between primary and secondary chassis, enabling bumpless transfer on controller fault. This configuration is fully supported by Rockwell Automation’s redundancy firmware and requires no special programming beyond enabling redundancy in the controller properties within Studio 5000.

Q3: What does the 12-Month Warranty from ZYPLC cover, and how does it support long-term maintenance planning?
The 12-Month Warranty provided by ZYPLC covers functional defects in the 1756-L63XT processor module under normal operating conditions. All units are tested prior to shipment to verify processor initialization, memory integrity, and backplane communication. For maintenance engineers managing multi-year control system lifecycles, this warranty provides a defined coverage window that aligns with annual maintenance budget cycles. ZYPLC also maintains inventory of compatible XT-series components, enabling rapid replacement of co-resident modules to minimize system downtime during corrective maintenance events.
