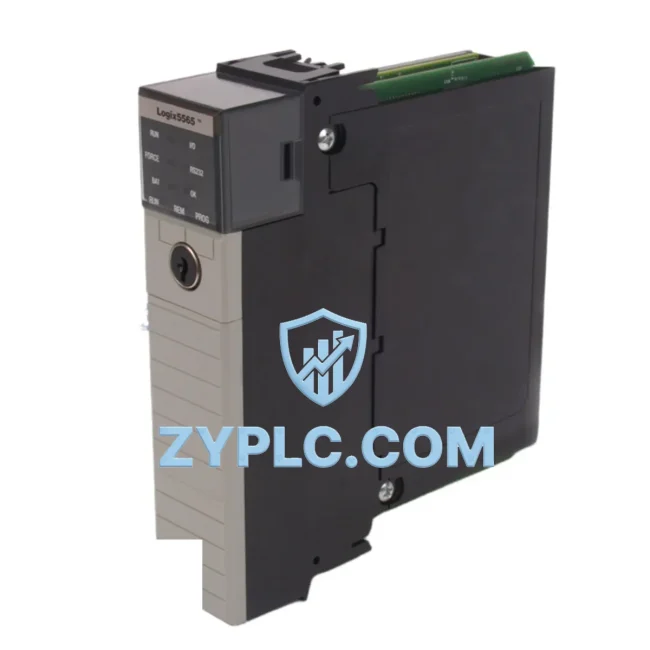

Allen-Bradley 1756-L65 Energy-Saving PLC for ControlLogix

Allen-Bradley 1756-L65 Energy-Saving PLC for ControlLogix Automation

The Allen-Bradley 1756-L65 (Logix5565) ControlLogix PLC processor is engineered for industrial environments where energy efficiency, precise motor control, and production line optimization are mission-critical. As a high-performance controller within the Rockwell Automation ControlLogix platform, the 1756-L65 delivers the processing power and I/O scalability needed to reduce unnecessary energy consumption, minimize unplanned downtime, and maximize overall equipment effectiveness (OEE) across complex manufacturing systems.

With 8 MB of user memory and support for up to 128 axes of motion, the 1756-L65 is purpose-built for demanding applications including high-speed packaging lines, precision machining centers, automotive assembly, and process-intensive chemical or food production environments. Its deterministic scan cycle ensures that control commands are executed with microsecond-level accuracy, directly translating to tighter production rhythms and reduced idle energy draw across connected drive systems.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-L65 sits at the heart of a tightly integrated energy-aware control architecture. In a typical high-efficiency production cell, the processor communicates over EtherNet/IP with a 1756-EN2T EtherNet/IP communication module, enabling real-time data exchange between the controller and upstream MES or SCADA systems. This connectivity allows energy consumption data collected at the field level to be aggregated and acted upon at the supervisory layer without latency.

On the drive side, the 1756-L65 coordinates directly with PowerFlex 755 AC drives via the integrated motion bus, enabling closed-loop speed and torque regulation that eliminates the energy waste associated with fixed-speed motor operation. When paired with a 1756-M08SE Servo Drive Interface module, the processor can simultaneously manage servo axes on a Kinetix 6500 multi-axis servo drive system, ensuring that each motion profile is executed at the minimum energy envelope required for the task.

For power quality monitoring, the 1756-L65 integrates seamlessly with PowerMonitor 5000 energy meters through the same EtherNet/IP backbone. This allows the controller to receive real-time kWh, power factor, and harmonic distortion data, enabling the logic program to dynamically adjust drive setpoints or shift non-critical loads to off-peak windows. The 1756-IB16 digital input module and 1756-OB16E digital output module handle field-level signal acquisition and actuator control, ensuring that sensor feedback from current transformers, pressure transducers, and flow meters reaches the processor with minimal cycle-time overhead.

Human-machine interaction is handled through a PanelView Plus 7 HMI terminal connected via EtherNet/IP, giving operators a real-time view of energy KPIs, drive efficiency curves, and alarm states. The 1756-L65’s tag-based programming model in Studio 5000 Logix Designer allows energy-related logic — such as automatic motor de-energization during scheduled idle periods or load-shedding routines during peak demand — to be implemented and modified without disrupting the broader control program.

Power Optimization in Real Production Lines

In real-world deployments, the 1756-L65 has demonstrated measurable impact on production line energy efficiency. By enabling demand-based motor control through coordinated communication with PowerFlex variable frequency drives, facilities have reported reductions in motor energy consumption of 20–40% compared to across-the-line starting configurations. The processor’s ability to execute multi-axis coordinated motion means that conveyor systems, robotic pick-and-place cells, and precision indexing tables can be synchronized to eliminate mechanical conflicts and the associated energy spikes caused by abrupt starts and stops.

Predictive maintenance is another area where the 1756-L65 delivers energy and cost savings. By continuously monitoring drive current signatures, vibration feedback from smart sensors, and thermal data from connected I/O modules, the controller can flag developing faults — such as bearing wear in a pump motor or insulation degradation in a servo — before they result in unplanned downtime. Unplanned stops are among the most energy-intensive events in a production environment, as restarting a cold line consumes significantly more energy than maintaining a warm, controlled idle state.

The processor’s fast scan time also directly supports production line rhythm optimization. In high-speed bottling or assembly applications, even a 5 ms improvement in control loop response can translate to a measurable increase in throughput without any additional energy input — effectively lowering the energy cost per unit produced. Combined with the data logging capabilities of the ControlLogix platform, production engineers can use historical energy and cycle-time data to continuously refine setpoints and eliminate inefficiencies that accumulate over time.

Every 1756-L65 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including memory verification, communication port validation, and I/O bus integrity checks. Units are shipped with a 12-month warranty, and our inventory is maintained to support rapid dispatch for both planned upgrades and emergency replacement scenarios.

Energy Optimization FAQ

Q1: How does the 1756-L65 contribute to measurable energy savings on the production floor?
The 1756-L65 enables demand-based control of connected drives and motors through its high-speed EtherNet/IP communication and deterministic scan cycle. By integrating with PowerFlex 755 drives and PowerMonitor 5000 energy meters, the processor can dynamically adjust motor speeds, implement load-shedding routines, and schedule non-critical equipment to low-power states during idle periods — all of which contribute to quantifiable reductions in energy consumption.

Q2: Is the 1756-L65 compatible with existing ControlLogix chassis and I/O infrastructure?
Yes. The 1756-L65 is fully compatible with the 1756 ControlLogix chassis family and works alongside existing 1756-series I/O modules, communication modules (such as the 1756-EN2T and 1756-CNB), and motion modules. It is programmed using Studio 5000 Logix Designer, which supports project migration from earlier Logix5000 processors with minimal rework.

Q3: What is the recommended replacement or upgrade path for older ControlLogix processors?
The 1756-L65 is a direct functional replacement for the 1756-L61, 1756-L62, 1756-L63, and 1756-L64 processors, offering increased user memory and improved processing throughput. For applications currently running on 1756-L55 or earlier platforms, a project conversion using Studio 5000 is recommended, and ZYPLC can provide pre-sales technical guidance to support the migration.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1756-L65 unit supplied by ZYPLC is tested for full functional operation, including processor boot verification, user memory integrity, backplane communication, and all front-panel port functionality. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Units are packaged in anti-static materials and shipped with tracking to ensure safe delivery.
