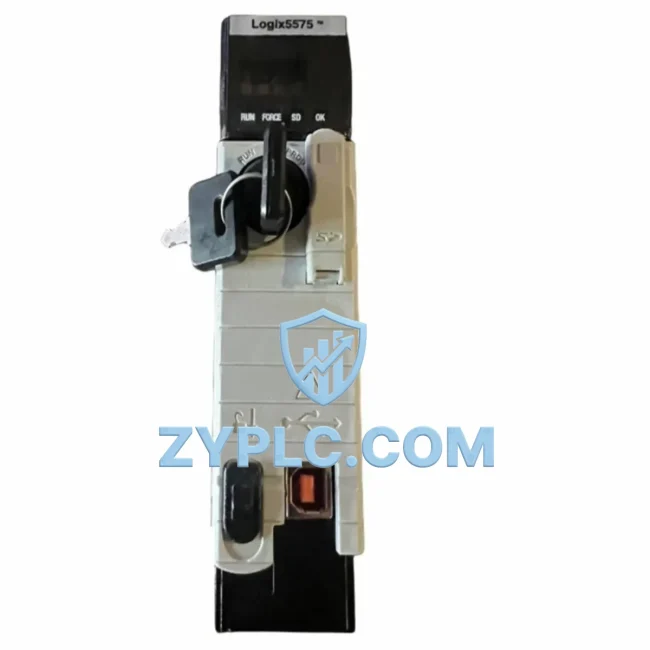

Allen-Bradley 1756-L75 System-Ready Processor for ControlLogix Architecture

Allen-Bradley 1756-L75 System-Ready Processor for ControlLogix Architecture

The Allen-Bradley 1756-L75 is a high-capacity ControlLogix processor engineered for demanding industrial control system architectures where processing power, memory depth, and multi-axis coordination are non-negotiable. As a core component of the Rockwell Automation 1756 Series platform, the 1756-L75 occupies the central control layer of a layered automation hierarchy, orchestrating signal flow across I/O modules, communication gateways, power supplies, HMI interfaces, and field-level actuators. Its role is not simply to execute ladder logic — it is the architectural anchor that determines system scalability, redundancy capability, and long-term maintainability across the entire control cabinet.

In modern industrial environments — whether in continuous process manufacturing, discrete assembly lines, power distribution substations, petrochemical facilities, or water treatment plants — the processor must do more than run programs. It must sustain deterministic scan cycles under variable load, support hot-standby redundancy configurations, manage distributed I/O across multiple chassis, and maintain communication integrity across EtherNet/IP and ControlNet backbones simultaneously. The 1756-L75 is purpose-built to meet these requirements at scale.

Architecture Specification Table

Coordinated Control System Design

The 1756-L75 achieves its full architectural value only when integrated within a coherent system design. In a typical ControlLogix control cabinet, the processor is seated in a 1756-A10 or 1756-A17 chassis alongside communication modules such as the 1756-EN2T EtherNet/IP bridge and the 1756-CNB ControlNet bridge, which extend the processor’s reach to remote I/O racks distributed across the plant floor. Power is supplied by the 1756-PA75 or 1756-PB75 power supply module, which provides regulated 1.2A backplane current to sustain all installed modules under full load.

For applications requiring high availability, the 1756-RM2/A redundancy module pairs with a secondary 1756-L75 chassis to deliver hot-standby failover with sub-100ms switchover time — a critical requirement in power generation, oil and gas, and water treatment applications where process interruption carries significant operational or safety consequences. The redundancy pair communicates over a dedicated fiber link, ensuring that the standby controller maintains a synchronized image of the primary’s data table at all times.

On the I/O layer, the 1756-L75 coordinates with analog input modules such as the 1756-IF16 (16-channel analog input) and digital output modules such as the 1756-OB16I (isolated 16-channel digital output), enabling precise signal acquisition and actuation across process variables including temperature, pressure, flow, and valve position. For motion control applications, the processor integrates natively with the Kinetix 5700 servo drive system over the Integrated Motion on EtherNet/IP (IMC) protocol, enabling coordinated multi-axis control without a separate motion controller.

At the human-machine interface layer, the 1756-L75 communicates with PanelView Plus 7 terminals over EtherNet/IP, providing operators with real-time process visualization, alarm management, and recipe control. Tag-based communication between the processor and HMI eliminates the need for manual address mapping, reducing commissioning time and the risk of configuration errors during system integration.

Terminal modules such as the 1492-CABLE series pre-wired interface cables and 1756-TBCH terminal blocks simplify field wiring connections to I/O modules, reducing installation time and improving long-term maintainability. This wiring infrastructure, combined with the processor’s online editing capability in Studio 5000 Logix Designer, allows engineers to modify control logic and I/O configurations without taking the system offline — a significant advantage in continuous process environments where planned downtime is costly.

Application in Layered Automation Systems

In discrete manufacturing environments such as automotive assembly, electronics production, and packaging lines, the 1756-L75 serves as the primary controller for multi-station sequential control, coordinating conveyor drives, robotic pick-and-place cells, vision inspection systems, and end-of-line testing equipment within a single unified control program. Its large user memory accommodates complex structured text routines, function block diagrams, and sequential function charts simultaneously, supporting modular program architectures that scale with production line expansion.

In power distribution and substation automation, the 1756-L75 is deployed in redundant configurations to manage protection relay coordination, transformer tap changer control, and SCADA communication via DNP3 or IEC 61850 protocol gateways. The processor’s deterministic scan cycle and high-speed interrupt task capability ensure that protection logic executes within the time constraints required by grid stability standards.

In petrochemical and refinery applications, the 1756-L75 integrates with safety instrumented systems (SIS) through hardwired interlock interfaces, managing process variables such as reactor temperature, pressure relief valve status, and emergency shutdown sequences. Its compatibility with HART-enabled analog I/O modules allows simultaneous process control and device diagnostics over the same 4–20mA signal loop, reducing the need for separate diagnostic wiring infrastructure.

In water and wastewater treatment facilities, the processor manages pump station sequencing, chemical dosing control, filtration cycle automation, and telemetry communication to remote SCADA systems. Its support for distributed I/O over EtherNet/IP allows a single 1756-L75 to control multiple pump stations across a geographically dispersed network without requiring a separate controller at each site.

In mining and metallurgical operations, the 1756-L75 controls conveyor belt systems, crusher drives, flotation cell agitators, and smelter process controls in environments characterized by high vibration, dust, and temperature extremes. Its industrial-grade hardware design and conformal coating options ensure reliable operation in these demanding conditions over extended service intervals.

Architecture Engineering FAQ

Q1: Is the 1756-L75 compatible with existing 1756 Series chassis and I/O modules already installed in my facility?
Yes. The 1756-L75 is fully backward compatible with all 1756 Series chassis (1756-A4 through 1756-A17) and the complete range of 1756 Series I/O modules, communication bridges, and motion modules. It is also compatible with 1769 CompactLogix I/O adapters connected via EtherNet/IP, allowing mixed-platform architectures where cost-sensitive remote stations use CompactLogix hardware while the primary control chassis retains ControlLogix processing power. Programming is performed in Studio 5000 Logix Designer, and existing projects developed for earlier L7x processors can be imported with minimal revision.

Q2: How does the 1756-L75 support redundancy, and what additional hardware is required to implement a hot-standby configuration?
The 1756-L75 supports ControlLogix Enhanced Redundancy (firmware revision 20.054 and above) using the 1756-RM2/A redundancy module. A complete redundant system requires two identical 1756-L75 processors, two matching chassis, two 1756-RM2/A modules, and a fiber interconnect cable. The redundancy module handles automatic synchronization of the controller data table between primary and secondary chassis, and manages switchover logic in the event of a primary processor fault. Switchover time is typically less than 100ms, which is transparent to most process control applications. Our team can assist with redundancy configuration verification and firmware compatibility checks prior to deployment.

Q3: What does the 12-Month Warranty cover, and what support is available for installation and commissioning?
Every 1756-L75 supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm processor boot, memory integrity, and communication port operation. The warranty covers repair or replacement at no additional cost within the warranty period. For installation and commissioning support, our engineering team is available to assist with chassis slot assignment, power budget calculation, EtherNet/IP network configuration, and Studio 5000 project import. Contextual Integration support — ensuring the 1756-L75 operates correctly within your specific system architecture — is included as part of our pre-sales and post-sales technical service.
