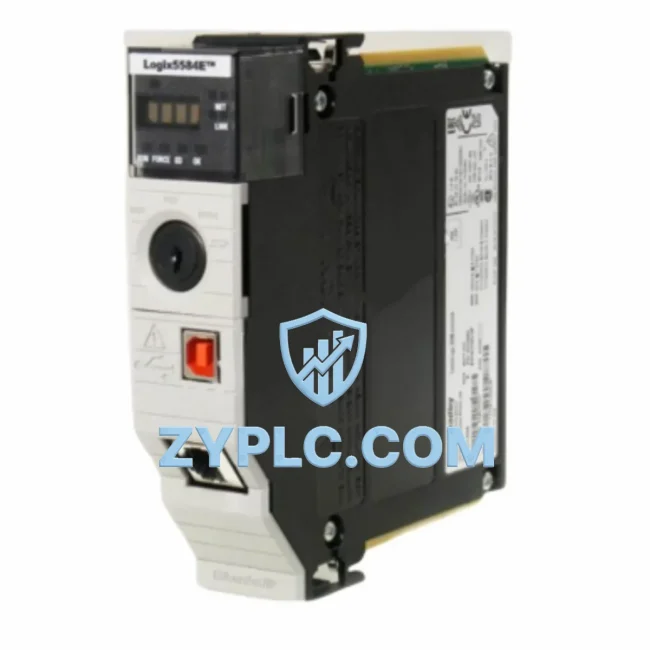

Allen-Bradley 1756-L84E Energy-Saving Controller ControlLogix 5580

Allen-Bradley 1756-L84E Energy-Saving Controller ControlLogix 5580: Precision Energy Control for Optimized Production Lines

The Allen-Bradley 1756-L84E is a high-performance Programmable Automation Controller (PAC) within the ControlLogix 5580 series, engineered by Rockwell Automation to deliver measurable reductions in energy consumption across complex industrial environments. With its advanced multi-tasking architecture and EtherNet/IP-native connectivity, the 1756-L84E serves as the central intelligence hub for energy-aware automation systems — coordinating drive regulation, motor control, power monitoring, and real-time production feedback with exceptional efficiency.

In modern manufacturing, energy waste is rarely the result of a single component failure. It accumulates through idle motor run times, uncoordinated drive ramp profiles, unmonitored auxiliary loads, and reactive maintenance cycles. The 1756-L84E addresses these inefficiencies at the controller level, enabling engineers to implement closed-loop energy strategies that span the entire production line — from energy acquisition and drive actuation to data logging and predictive diagnostics.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-L84E operates at the core of a tightly integrated automation architecture designed to minimize energy waste at every layer of the control hierarchy. At the drive level, it communicates directly with PowerFlex 755 and PowerFlex 525 variable frequency drives over EtherNet/IP, enabling dynamic speed regulation that matches motor output to actual load demand — eliminating the fixed-speed overconsumption that plagues legacy systems. Rather than running motors at full speed continuously, the controller issues real-time velocity and torque commands that reduce kilowatt-hour consumption during partial-load cycles.

For I/O coordination, the 1756-L84E interfaces with 1756-IB16 digital input modules and 1756-OB16E digital output modules housed in the same ControlLogix 1756 chassis, enabling precise sequencing of actuators, solenoids, and contactors to prevent simultaneous high-inrush events that spike peak demand charges. Analog I/O modules such as the 1756-IF16 allow the controller to read current transducer signals and process real-time amperage data, feeding energy consumption calculations directly into the control logic.

At the HMI layer, integration with PanelView Plus 7 terminals running FactoryTalk View ME provides operators with live energy dashboards — displaying kilowatt readings, motor run-hour counters, and efficiency trend graphs without requiring a separate SCADA layer. For plants running distributed architectures, the 1756-L84E supports seamless communication with 1756-EN2T EtherNet/IP communication modules, extending energy monitoring visibility across multiple production cells and remote I/O drops.

Power quality monitoring is further enhanced when the 1756-L84E is paired with PowerMonitor 5000 units, which feed harmonic distortion data, power factor readings, and demand interval logs back to the controller via EtherNet/IP. This closed-loop feedback allows the 1756-L84E to trigger capacitor bank switching, adjust drive carrier frequencies, or initiate load-shedding routines automatically — all without operator intervention. For motion-intensive applications, the controller coordinates with Kinetix 5700 servo drives to synchronize multi-axis motion profiles, reducing mechanical stress and regenerative energy losses during deceleration phases.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the 1756-L84E has been deployed to manage the sequencing of resistance welding transformers, conveyor indexing motors, and robotic cell interlocks within a single unified control program. By implementing time-of-use load scheduling — shifting non-critical processes to off-peak energy windows — facilities have reported measurable reductions in peak demand charges without impacting throughput targets.

In food and beverage packaging operations, the controller’s high-speed task execution enables precise coordination between filling stations, capping heads, and labeling units. When a downstream jam is detected via 1756-IB16 input signals, the 1756-L84E immediately ramps down upstream conveyor drives through PowerFlex VFDs rather than allowing motors to run against blocked loads — a common source of both energy waste and mechanical wear. This reactive load management reduces unnecessary motor run time and extends bearing and gearbox service intervals, directly lowering maintenance costs.

For continuous process industries such as water treatment and chemical blending, the 1756-L84E supports proportional-integral-derivative (PID) control loops that regulate pump speeds, valve positions, and agitator rates based on real-time process variables. Rather than cycling pumps on and off at full speed, the controller maintains precise flow rates through variable-speed drive commands — a strategy that can reduce pump energy consumption significantly compared to fixed-speed throttling approaches. Predictive maintenance routines embedded in the control logic monitor motor current signatures and vibration proxy data, flagging developing faults before they cause unplanned downtime.

Every unit of the 1756-L84E supplied by ZYPLC undergoes full functional testing prior to shipment, including communication verification, memory integrity checks, and I/O response validation. Stock availability is maintained to support urgent production requirements, and all units are covered by a 12-month warranty from the date of delivery — ensuring that your energy optimization investment is protected from day one.

Energy Optimization FAQ

Q1: How does the 1756-L84E contribute to measurable energy savings on a production line?
The 1756-L84E enables energy savings through coordinated drive speed control, intelligent load sequencing, and closed-loop feedback from power monitoring devices. By integrating with PowerFlex variable frequency drives and PowerMonitor 5000 units, the controller can dynamically adjust motor speeds to match actual process demand, eliminate idle-state overconsumption, and schedule high-load operations outside peak demand windows — all of which translate directly into reduced kilowatt-hour consumption and lower utility costs.

Q2: Is the 1756-L84E compatible with existing ControlLogix 1756 chassis and I/O infrastructure?
Yes. The 1756-L84E is fully compatible with the ControlLogix 1756 chassis platform and can coexist with existing 1756-series I/O modules, communication adapters, and power supplies. Migration from earlier ControlLogix 5570 or 5560 controllers is supported through Studio 5000 Logix Designer project conversion tools, allowing facilities to upgrade processing capacity and EtherNet/IP bandwidth without replacing their existing I/O wiring or chassis infrastructure.

Q3: What is the recommended replacement or upgrade path for aging ControlLogix controllers?
For facilities running 1756-L71, 1756-L72, or 1756-L73 controllers approaching end-of-life, the 1756-L84E offers a direct upgrade path with significantly expanded user memory (40 MB vs. 8 MB on the L71), faster execution speeds, and native dual-port EtherNet/IP — eliminating the need for a separate 1756-EN2T communication module in many topologies. ZYPLC can assist with compatibility assessment and sourcing of associated modules to support a complete system refresh.

Q4: What testing and warranty coverage is provided with ZYPLC-supplied 1756-L84E units?
All 1756-L84E units supplied by ZYPLC are tested prior to shipment, including power-on verification, firmware version confirmation, EtherNet/IP port functionality checks, and memory diagnostics. Each unit is covered by a 12-month warranty from the date of delivery. In the event of a verified hardware fault within the warranty period, ZYPLC will arrange replacement or repair support. Our team is available to assist with pre-sales compatibility questions and post-sales technical guidance.
