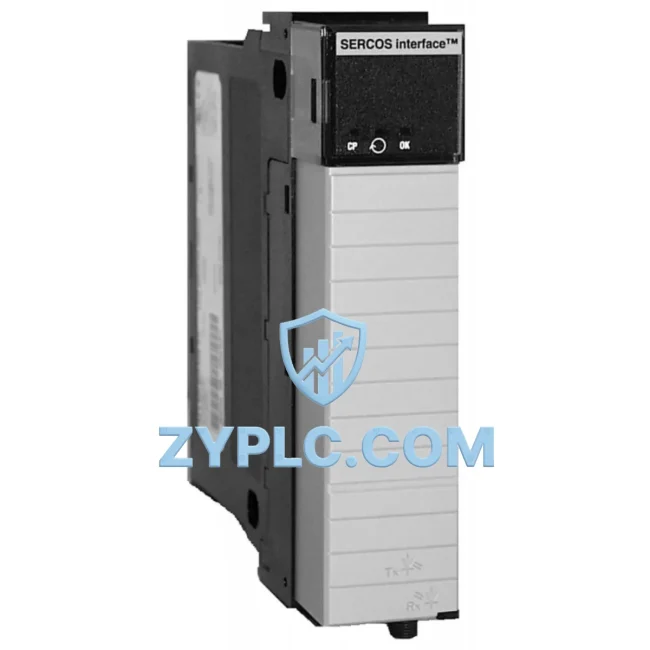

Allen-Bradley 1756-M03SE Industrial Network Interface for ControlLogix Systems

Allen-Bradley 1756-M03SE: Industrial Data Link for ControlLogix SERCOS Motion Networks

The Allen-Bradley 1756-M03SE is a 3-axis SERCOS (Serial Real-time Communication System) servo interface module engineered for the ControlLogix 1756 platform. As a dedicated motion network gateway embedded within the 1756 chassis backplane, the 1756-M03SE bridges the ControlLogix controller with SERCOS-compliant servo drives, delivering deterministic, real-time position, velocity, and torque command transmission across the motion control network. In smart factory environments where microsecond-level synchronization between drives and controllers defines production quality and throughput, the 1756-M03SE provides the communication backbone that keeps servo axes aligned, responsive, and fully integrated into the plant-wide automation architecture.

Network Communication Table

Connected Automation Data Flow

In a fully integrated ControlLogix motion system, the 1756-M03SE sits at the center of a layered data flow that begins at the servo drive and terminates at the enterprise SCADA layer. At the field level, Kinetix 6000 multi-axis servo drives receive motion commands from the 1756-M03SE over the SERCOS fiber-optic ring. Each drive closes its current, velocity, and position loops locally, returning actual feedback data — encoder counts, torque values, fault codes — back to the module every servo cycle. This closed-loop exchange occurs at deterministic intervals, ensuring that the 1756-L75 ControlLogix controller executing Logix5000 motion instructions always operates on current, accurate axis state data.

The 1756-M03SE module occupies a slot in the 1756 chassis alongside the 1756-EN2T EtherNet/IP bridge module, which carries process data and diagnostic information up to the plant network. From there, FactoryTalk View SE HMI stations and Ignition SCADA servers poll controller tags in real time, displaying axis positions, drive status, and alarm conditions on operator screens. Remote engineering workstations running Studio 5000 Logix Designer connect over EtherNet/IP to perform online edits, trend axis data, and execute remote diagnostics without interrupting production.

For multi-axis coordinated motion — common in gantry systems, flying shear applications, and servo-driven packaging lines — the 1756-M03SE synchronizes all three axes to a common time base derived from the ControlLogix system clock. When additional axes are required, a second 1756-M03SE module can be added to the same chassis, and the Logix5000 motion coordinator manages cross-module axis coordination transparently. Remote I/O nodes connected via 1756-DHRIO or 1756-EN2T modules feed digital and analog signals from proximity sensors, photoelectric sensors, and pressure transducers into the same controller scan, giving the motion program full situational awareness of the mechanical system state.

At the power and safety layer, Kinetix 6000 drives receive DC bus power from a shared power rail, and the 1756-M03SE participates in the integrated safe-off architecture by monitoring drive enable signals. Safety PLCs such as the GuardLogix 1756-L7SP can be integrated into the same chassis, with the 1756-M03SE motion axes subject to safe torque-off commands routed through the safety task. This architecture eliminates the need for external safety relays on each drive, reducing panel wiring and simplifying safety validation documentation. Kinetix 5700 EtherNet/IP servo drives can also be deployed alongside the 1756-M03SE in mixed-protocol environments, with the Logix5000 controller managing both SERCOS and EtherNet/IP motion axes under a unified tag structure.

Solving Data Isolation in Industrial Sites

Legacy servo systems frequently suffer from protocol fragmentation: older drives may speak only analog ±10 V command interfaces or proprietary serial protocols, while modern ControlLogix platforms expect SERCOS or EtherNet/IP-based motion feedback. The 1756-M03SE resolves this by providing a standardized SERCOS gateway that abstracts drive-level communication complexity from the controller program. Engineers write motion instructions in Logix5000 using standard MAJ, MAM, MAS, and MASD instructions without managing low-level drive register maps or timing handshakes.

Data isolation between the motion layer and the SCADA layer is eliminated through the EtherNet/IP bridge provided by the 1756-EN2T in the same chassis. All axis tags — commanded position, actual position, velocity feedback, following error, drive fault codes — are automatically available as controller tags accessible to any EtherNet/IP client on the plant network. This means FactoryTalk Historian can log axis performance data continuously, enabling predictive maintenance analytics that identify bearing wear, coupling backlash, or encoder degradation before they cause unplanned downtime.

For remote sites or multi-plant deployments, the ControlLogix platform’s EtherNet/IP infrastructure allows remote diagnostics from any location with network access. Maintenance engineers can connect to the controller, trend axis data, and clear drive faults without traveling to the machine. This capability is particularly valuable in industries such as oil and gas, mining, and large-scale food processing, where machines may be physically inaccessible during production runs. The 1756-M03SE, as the motion network gateway, is the enabling component that makes this remote visibility possible.

System expansion is straightforward: additional 1756-M03SE modules can be added to the chassis as production lines grow, and the Logix5000 motion coordinator scales to manage larger axis counts without architectural changes. Mixed-protocol environments — where some drives use SERCOS and others use EtherNet/IP via Kinetix 5500 or Kinetix 5700 drives — are supported within the same ControlLogix program, with the controller managing both motion networks under a unified tag structure. 1756-IB16 digital input modules and 1756-OF8 analog output modules in the same chassis further extend the system’s ability to integrate field-level sensor and actuator data into the motion control loop, eliminating the data silos that traditionally separate motion, process, and safety domains.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1756-M03SE SERCOS interface?
The 1756-M03SE supports SERCOS cycle times as low as 1 ms, providing deterministic, low-latency motion command and feedback exchange with connected Kinetix servo drives. This ensures that position loop closure and velocity regulation occur within the servo update period, maintaining tight synchronization across all three axes and eliminating the jitter that can cause following errors in high-speed coordinated motion applications.

Q2: Is the 1756-M03SE compatible with all SERCOS-capable drives?
The 1756-M03SE is designed and validated for use with Rockwell Automation SERCOS drives including the Kinetix 6000, Kinetix 6200, and Ultra3000 SERCOS series. Compatibility with third-party SERCOS drives depends on the drive’s SERCOS profile implementation and should be verified against the Rockwell Automation compatibility matrix before deployment. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q3: How does the 1756-M03SE support network stability in high-vibration and high-EMI industrial environments?
The SERCOS fiber-optic ring topology used by the 1756-M03SE is inherently immune to electromagnetic interference (EMI) from variable frequency drives, welding equipment, and high-current switching devices common in industrial environments. The fiber ring also provides fault detection: if one segment of the ring is interrupted, the SERCOS protocol detects the fault and reports it to the controller, enabling rapid fault isolation and maintenance response without full system shutdown.

Q4: What warranty and pre-shipment testing does this unit include?
Every 1756-M03SE unit supplied by ZYPLC includes a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment, verifying backplane communication, SERCOS ring initialization, and axis configuration response. In-stock units are available for same-day or next-day dispatch, supporting urgent maintenance and production restart requirements.

—
