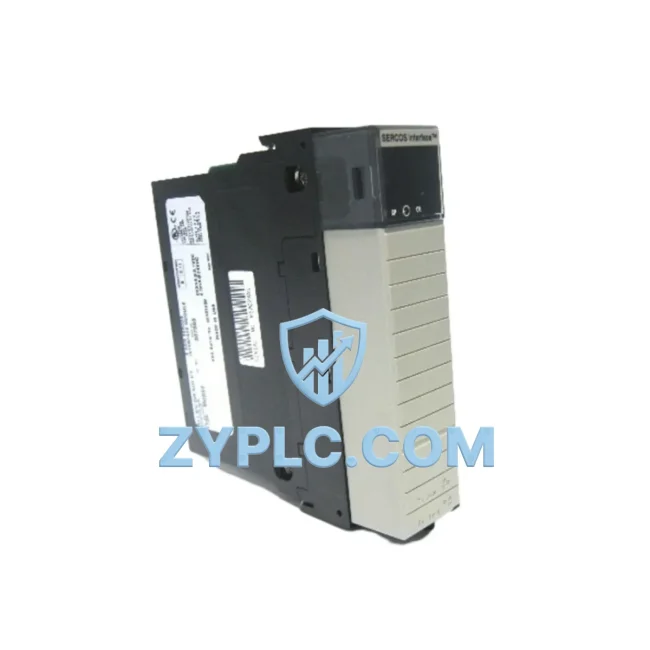

Allen-Bradley 1756-M08SE Energy-Saving Servo Module for ControlLogix

Allen-Bradley 1756-M08SE Energy-Saving Servo Module for Optimized ControlLogix Automation

The Allen-Bradley 1756-M08SE is an 8-axis SERCOS interface servo module designed for the ControlLogix 1756 platform, engineered to deliver precision motion control while minimizing energy consumption across multi-axis production systems. In modern manufacturing environments where energy costs and equipment utilization rates directly impact profitability, the 1756-M08SE provides a critical link between the control layer and the drive layer — enabling tightly coordinated, energy-aware motion sequences that reduce idle power draw, eliminate unnecessary acceleration cycles, and optimize axis synchronization across the entire production line.

Unlike standalone motion controllers, the 1756-M08SE operates as an integrated component within the ControlLogix backplane architecture. It communicates directly with the 1756-L series ControlLogix CPUs — such as the 1756-L71, 1756-L73, and 1756-L75 — via the high-speed backplane bus, ensuring deterministic command execution with minimal latency. This tight integration allows the PLC to coordinate motion profiles, I/O events, and energy states in a unified control loop, rather than relying on loosely coupled external motion controllers that introduce communication delays and energy inefficiencies.

The SERCOS (Serial Real-time Communication System) interface supported by the 1756-M08SE enables high-speed, noise-immune fiber-optic communication with compatible servo drives such as the Kinetix 6000 and Kinetix 6500 series. This digital drive interface eliminates analog signal degradation, reduces wiring complexity, and allows the control system to monitor drive-level energy consumption data in real time. When paired with Kinetix 6500 drives, the system supports integrated safety and regenerative energy feedback — returning braking energy to the DC bus rather than dissipating it as heat, which measurably reduces total system power consumption in high-cycle applications.

From an energy monitoring perspective, the 1756-M08SE works in conjunction with the broader ControlLogix ecosystem to support data-driven energy management. Power consumption trends can be tracked through the 1756-EN2T EtherNet/IP communication module, which bridges the motion control layer to plant-level SCADA and MES systems. This connectivity allows engineers to correlate axis motion profiles with energy consumption data, identify inefficient motion sequences, and implement optimized velocity and acceleration ramps that reduce peak current draw without sacrificing throughput.

In high-density automation cells, the 1756-M08SE is typically installed alongside 1756-IB16 digital input modules and 1756-OB16E digital output modules to manage peripheral devices such as brakes, clamps, and end-of-travel sensors. The coordinated management of these I/O signals within the same ControlLogix chassis ensures that auxiliary devices are energized only when required, avoiding the parasitic power losses common in systems where motion and I/O control are handled by separate controllers.

For applications requiring redundant control or high-availability production, the 1756-M08SE integrates seamlessly into ControlLogix redundancy configurations using the 1756-RM2 redundancy module. In redundant architectures, the primary and secondary chassis maintain synchronized motion state data, allowing seamless switchover without loss of axis position or velocity reference — eliminating the energy-intensive re-homing sequences that would otherwise be required after an unplanned controller failover.

The module’s compatibility with Studio 5000 Logix Designer software enables engineers to configure energy-optimized motion profiles using built-in cam profile editors, electronic gearing functions, and coordinated motion instructions. These tools allow production engineers to fine-tune axis synchronization, reduce mechanical shock loads, and extend the service life of connected mechanical components — all of which contribute to lower long-term energy and maintenance costs.

From a maintenance and supply chain perspective, the 1756-M08SE is a well-established component in the Allen-Bradley ControlLogix ecosystem, with broad availability and a stable replacement pathway. Each unit supplied by ZYPLC undergoes full functional testing prior to shipment, verifying SERCOS ring integrity, axis command response, and backplane communication health. A 12-Month Warranty is included with every unit, covering both hardware defects and verified functional failures — providing procurement teams and plant engineers with the confidence needed for long-term spare parts planning.

Whether deployed in automotive assembly, food and beverage packaging, semiconductor handling, or precision machining applications, the 1756-M08SE delivers the motion control accuracy, energy efficiency, and system integration depth required to sustain high-performance production at reduced operational cost.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-M08SE achieves its energy optimization potential not in isolation, but as a coordinated node within a layered ControlLogix automation architecture. At the CPU layer, the 1756-L73 or 1756-L75 ControlLogix processor executes motion programs and energy management logic simultaneously, using Logix Designer’s integrated motion and process instructions to synchronize axis movement with upstream and downstream process states. This eliminates the energy waste associated with axes running at full speed while waiting for upstream processes to complete.

At the drive layer, the Kinetix 6500 servo drives connected via the SERCOS ring support integrated safe torque-off (STO) and regenerative braking — two features that directly reduce energy consumption in high-cycle applications. When an axis decelerates, regenerative energy is fed back into the shared DC bus rather than burned off through braking resistors, reducing both energy costs and thermal load within the control cabinet.

The 1756-EN2T EtherNet/IP communication module bridges the ControlLogix chassis to plant-level networks, enabling real-time energy data to flow from the drive and motion layers up to SCADA dashboards and MES platforms. This visibility allows production managers to identify energy-intensive motion sequences and implement targeted optimizations — such as reducing jerk limits, adjusting dwell times, or enabling axis sleep modes during scheduled production pauses.

At the I/O layer, 1756-IB16 input modules and 1756-OB16E output modules manage the peripheral devices that surround each servo axis — including pneumatic brakes, part-present sensors, and conveyor interlocks. By coordinating these signals within the same Logix program that controls the 1756-M08SE axes, engineers can implement energy-aware sequencing logic that powers down auxiliary devices during idle periods without introducing motion errors or safety risks.

For human-machine interface requirements, PanelView Plus 7 terminals connected via EtherNet/IP provide operators with real-time axis status, energy consumption trends, and fault diagnostics — enabling faster response to abnormal energy consumption patterns that may indicate mechanical wear, misalignment, or drive degradation before they escalate into unplanned downtime events.

Power Optimization in Real Production Lines

In automotive body welding lines, the 1756-M08SE coordinates the motion of multiple servo-driven welding guns and transfer mechanisms within a single SERCOS ring. By synchronizing axis motion profiles to the line’s master cycle time, the module eliminates the over-speed margins that operators typically add as safety buffers — reducing average motor current draw by aligning actual motion demand with available cycle time rather than worst-case assumptions.

In packaging and palletizing applications, the 1756-M08SE enables electronic cam profiles that replace mechanical cam systems — eliminating the fixed energy consumption of continuously rotating mechanical cams with on-demand servo motion that only draws power during active product handling cycles. This transition from mechanical to electronic cam control typically yields measurable reductions in motor energy consumption while simultaneously improving format changeover speed and reducing mechanical maintenance intervals.

In precision machining and semiconductor handling applications, the 1756-M08SE’s deterministic SERCOS communication ensures that axis position errors remain within nanometer-level tolerances, eliminating the rework and scrap losses that represent hidden energy costs in high-precision manufacturing. By reducing scrap rates, the module indirectly reduces the total energy consumed per good part produced — a metric increasingly tracked by manufacturers under ISO 50001 energy management frameworks.

Across all application types, the 1756-M08SE’s integration with the ControlLogix platform enables predictive maintenance strategies that reduce unplanned downtime — one of the largest sources of energy inefficiency in discrete manufacturing. By monitoring drive-level diagnostics such as motor thermal load, bus voltage ripple, and SERCOS communication error rates through the Logix controller, maintenance teams can schedule interventions during planned production windows rather than responding reactively to failures that disrupt energy-optimized production schedules.

Energy Optimization FAQ

Q1: How does the 1756-M08SE contribute to measurable energy savings compared to analog servo systems?
The 1756-M08SE uses a digital SERCOS fiber-optic interface to communicate with compatible servo drives, eliminating the analog signal losses and noise-induced control errors that cause analog systems to over-drive motors to compensate for positioning uncertainty. The digital interface also enables real-time monitoring of drive-level energy data, allowing engineers to identify and eliminate inefficient motion sequences. When paired with Kinetix 6500 drives, regenerative braking energy is returned to the DC bus rather than dissipated as heat — providing a direct, measurable reduction in energy consumption for high-cycle applications.

Q2: Is the 1756-M08SE compatible with existing ControlLogix chassis and power supplies without hardware upgrades?
The 1756-M08SE is designed for installation in standard ControlLogix 1756 chassis and is powered directly from the chassis backplane. It is compatible with 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 chassis sizes, and works with standard 1756-PA72 and 1756-PB72 power supplies. No dedicated external power supply is required for the module itself. Compatibility with the CPU and Studio 5000 software version should be verified against Rockwell Automation’s product compatibility matrix prior to installation.

Q3: What does the 12-Month Warranty cover, and what testing is performed before shipment?
Every 1756-M08SE supplied by ZYPLC undergoes pre-shipment functional testing that verifies SERCOS ring communication integrity, backplane data exchange, and axis command response across all 8 axes. The 12-Month Warranty covers hardware defects and verified functional failures identified during normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair at no additional cost. Warranty claims are processed through ZYPLC’s technical support team, reachable at plc.sales@zyplc.com or +86 19859288691.

Q4: Can the 1756-M08SE be used as a direct replacement for the 1756-M16SE in applications requiring fewer than 8 active axes?
The 1756-M08SE supports up to 8 SERCOS axes and is a suitable replacement in applications where the 1756-M16SE’s 16-axis capacity is underutilized. Using the 1756-M08SE in place of the 1756-M16SE in low-axis-count applications can reduce backplane power consumption and simplify SERCOS ring topology. However, engineers should verify that the existing SERCOS ring configuration, drive firmware versions, and Studio 5000 project axis assignments are compatible with the 1756-M08SE before substitution. ZYPLC’s technical team can assist with compatibility assessment prior to procurement.
