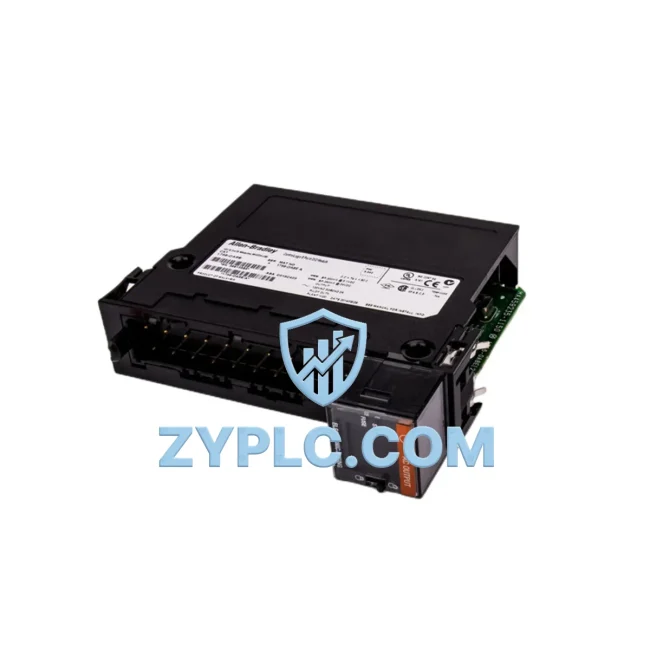

Allen-Bradley 1756-OA8E System-Ready AC Output for ControlLogix Architecture

Allen-Bradley 1756-OA8E System-Ready AC Output for ControlLogix Architecture

The Allen-Bradley 1756-OA8E is an 8-point, 120/240VAC isolated output module engineered for seamless integration within the Rockwell Automation ControlLogix 1756 chassis-based control architecture. Designed to operate as a precision output node within multi-layer industrial automation systems, the 1756-OA8E delivers deterministic signal switching, robust electrical isolation, and full compatibility with the ControlLogix backplane communication infrastructure. Whether deployed in a standalone control cabinet or as part of a distributed, redundant control network, this module provides the output density, diagnostic transparency, and long-term serviceability that demanding industrial environments require.

In a fully realized ControlLogix system architecture, the 1756-OA8E occupies the I/O layer, receiving commanded output states from the CPU layer — typically a 1756-L8x or 1756-L7x series ControlLogix processor — via the high-speed ControlBus backplane. The processor executes the control logic, and the 1756-OA8E faithfully translates those digital commands into 120/240VAC switching signals that drive field devices such as motor starters, solenoid valves, pilot lights, and relay coils. This clean separation of control intelligence and field-level output switching is fundamental to the ControlLogix modular design philosophy, enabling engineers to scale I/O capacity independently of processing power.

The module’s fuse-protected, individually isolated output points provide a critical layer of protection for both the control system and connected field devices. Each output channel is independently fused, meaning a single field fault does not cascade into adjacent channels or compromise the integrity of the broader control loop. This design characteristic is especially valuable in process-critical applications — such as chemical dosing systems, power distribution switchgear, or conveyor drive control — where output channel independence directly supports system uptime and safety.

From a system architecture perspective, the 1756-OA8E integrates naturally alongside complementary ControlLogix modules. On the input side, modules such as the 1756-IA8D or 1756-IB16 provide the digital input signals that feed the processor’s decision logic, while the 1756-OA8E handles the resulting output commands. Analog signal conditioning is managed by modules like the 1756-IF8 or 1756-OF8, which handle process variable feedback and analog output control respectively. For applications requiring motion coordination, the 1756-OA8E coexists within the same chassis as 1756-M02AE or 1756-M08SE servo drive interface modules, allowing a single ControlLogix chassis to manage both discrete output switching and coordinated motion profiles.

Network and communications integration is handled at the chassis level through dedicated communication modules. The 1756-EN2T EtherNet/IP communication module bridges the ControlLogix backplane to plant-level Ethernet networks, enabling the 1756-OA8E’s output status and diagnostic data to be monitored in real time via Rockwell’s Studio 5000 Logix Designer environment or third-party SCADA systems. For legacy or fieldbus-connected installations, the 1756-DNB DeviceNet Bridge or 1756-CN2 ControlNet Bridge modules extend the system’s communication reach without requiring chassis replacement or architectural redesign.

Power integrity across the chassis is maintained by the 1756-PA75 or 1756-PB75 power supply modules, which provide regulated 1.2V, 3.3V, 5.1V, and 24VDC backplane power. The 1756-OA8E draws its logic power from the backplane while sourcing field-side AC power externally, maintaining clean separation between control-side and field-side power domains — a best practice in industrial panel design that reduces noise coupling and simplifies troubleshooting. For high-availability applications, redundant power supply configurations using dual 1756-PA75 units with the 1756-PSCA2 chassis adapter ensure uninterrupted backplane power even during a single power supply failure.

System redundancy at the controller level is achievable through Rockwell’s ControlLogix Redundancy system, where a primary and secondary 1756-L8x processor pair — connected via 1756-RM2 redundancy modules — maintains synchronized program state and performs bumpless switchover in the event of a primary controller fault. The 1756-OA8E, residing in the I/O chassis, continues to execute output commands from whichever controller holds the primary role, making it a fully redundancy-compatible output device within this architecture.

For human-machine interface integration, the 1756-OA8E’s output states are directly accessible to PanelView Plus 7 or PanelView 5500 HMI terminals connected via EtherNet/IP, allowing operators to monitor individual output channel status, acknowledge faults, and initiate manual output overrides from the HMI layer without requiring direct access to the control cabinet. This visibility into the I/O layer is essential for rapid fault diagnosis and minimizes mean time to repair in production environments.

Architecture Specification Table

Coordinated Control System Design

The 1756-OA8E achieves its full operational value when deployed as part of a coordinated ControlLogix system rather than as an isolated component. A typical system configuration pairs the 1756-OA8E with a 1756-L83E ControlLogix 5580 processor as the control intelligence layer, supported by a 1756-PA75 power supply for stable backplane power delivery. Digital input signals are gathered by 1756-IB16 24VDC input modules, while the 1756-OA8E handles the corresponding AC output switching. Analog process variables — such as temperature, pressure, or flow — are managed by 1756-IF8 analog input modules, with setpoint outputs delivered via 1756-OF8 analog output modules.

Network connectivity is established through a 1756-EN2T EtherNet/IP communication module, enabling real-time data exchange with plant SCADA systems and remote I/O adapters. For installations requiring ControlNet deterministic communication, a 1756-CN2 ControlNet Bridge extends the system’s network reach. Terminal block wiring is simplified using 1492-CABLE series pre-wired cables paired with 1492-IFM interface modules, reducing field wiring errors and accelerating commissioning timelines. In redundant controller configurations, the 1756-RM2 Redundancy Module ensures seamless primary-to-secondary controller switchover, with the 1756-OA8E continuing output execution without interruption.

Application in Layered Automation Systems

The 1756-OA8E is deployed across a broad spectrum of industrial sectors where reliable AC output switching is a fundamental control requirement. In power generation and distribution facilities, the module controls switchgear actuators, transformer tap changers, and breaker trip coils within substation automation systems governed by ControlLogix redundant controller pairs. In oil & gas and petrochemical processing plants, it drives solenoid-operated valves, pump motor starters, and emergency shutdown actuators within SIL-rated safety instrumented systems, where its individually fused output channels provide the fault containment required by IEC 61511 process safety standards.

In automotive and discrete manufacturing environments, the 1756-OA8E manages conveyor drive enable signals, robotic cell safety gate interlocks, and assembly station tooling actuators within high-speed production lines coordinated by ControlLogix processors running at sub-millisecond scan rates. Water and wastewater treatment facilities rely on the module to control pump station motor starters, UV disinfection system contactors, and chemical dosing pump enables across geographically distributed lift stations connected via EtherNet/IP wide-area networks. In mining and mineral processing operations, the module’s wide operating temperature range and robust isolation characteristics make it suitable for crusher control panels, conveyor transfer station automation, and ventilation fan control systems operating in harsh, high-vibration environments.

Architecture Engineering FAQ

Q1: Is the 1756-OA8E compatible with both 1756-L7x and 1756-L8x series ControlLogix processors, and does it require any special configuration in Studio 5000?
The 1756-OA8E is fully compatible with all current ControlLogix 1756-L7x and 1756-L8x series processors. In Studio 5000 Logix Designer, the module is added to the I/O tree by selecting its catalog number from the module library. No special firmware or configuration files are required beyond standard module properties setup, including RPI (Requested Packet Interval) configuration and connection type selection. The module supports both direct connection and rack-optimized connection modes, allowing engineers to balance network bandwidth consumption against diagnostic granularity based on application requirements.

Q2: How does the 1756-OA8E support long-term maintenance and spare parts management in a large ControlLogix installation?
The 1756-OA8E’s hot-swap capability — supported by the ControlLogix chassis architecture — allows module replacement without powering down the chassis or interrupting adjacent I/O channels. This significantly reduces planned maintenance windows and eliminates the need for full system shutdowns during module servicing. For spare parts management, the module’s long production lifecycle and broad installed base ensure continued availability through authorized distributors and certified secondary market suppliers. Our 12-Month Warranty covers all supplied units, providing documented assurance of module functionality and reducing the financial risk associated with spare parts procurement for long-term plant maintenance programs.

Q3: Can the 1756-OA8E be used in a ControlLogix Redundancy system, and what are the key architecture considerations for redundant I/O configurations?
Yes, the 1756-OA8E is compatible with ControlLogix Redundancy architectures. In a standard redundant configuration, the primary and secondary controllers — connected via 1756-RM2 redundancy modules — both maintain synchronized output state data. The I/O chassis containing the 1756-OA8E communicates with the active primary controller via EtherNet/IP, and upon a redundancy switchover event, the secondary controller assumes primary role and resumes output command transmission to the 1756-OA8E without requiring module reconfiguration. For applications requiring I/O-level redundancy (dual I/O chassis configurations), the 1756-OA8E can be deployed in mirrored chassis pairs with cross-wired field terminations, providing output channel redundancy independent of controller-level redundancy.
