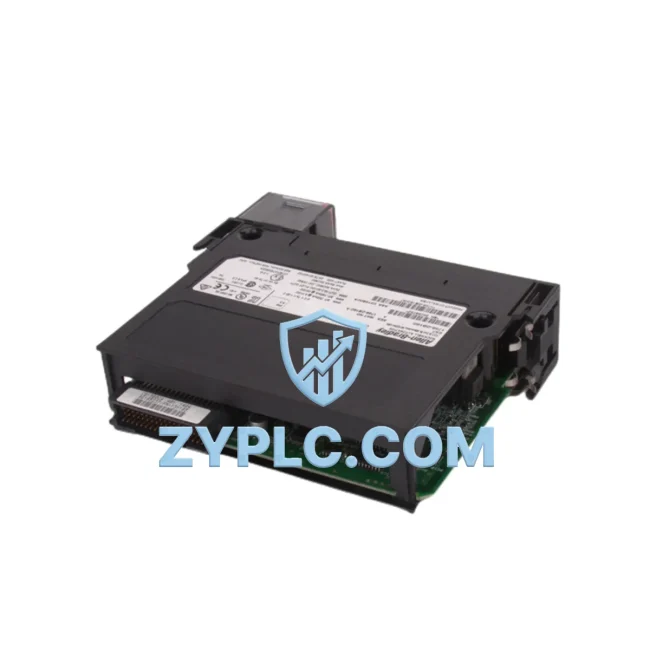

Allen-Bradley 1756-OB16D System-Ready DC Output for ControlLogix Architecture

Allen-Bradley 1756-OB16D System-Ready DC Output for ControlLogix Architecture

The Allen-Bradley 1756-OB16D is a 16-point, 24VDC sourcing diagnostic output module engineered for seamless integration within the Rockwell Automation ControlLogix platform. Rather than functioning as a standalone component, the 1756-OB16D is designed to operate as a precision output layer within a fully coordinated control system architecture — one that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer. Its diagnostic capabilities, deterministic signal delivery, and native ControlLogix compatibility make it a foundational element in high-availability industrial automation environments across manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, packaging lines, and continuous process control.

In a layered automation system, the 1756-OB16D occupies the discrete output position within the I/O layer, receiving commands from the ControlLogix CPU — such as the 1756-L71, 1756-L73, or 1756-L85E — and translating those commands into precise 24VDC switching signals directed at field devices including solenoid valves, motor starters, relay coils, and indicator lamps. The module’s per-point diagnostic feedback loop continuously reports output state, load current, and fault conditions back to the controller, enabling real-time system health monitoring without additional instrumentation. This closed-loop diagnostic architecture significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies that are critical in high-uptime production environments.

System consistency is further reinforced by the 1756-OB16D’s native compatibility with the 1756 ControlLogix backplane. Installed in any standard 1756-A4, 1756-A7, 1756-A10, or 1756-A17 chassis, the module communicates over the ControlLogix backplane at full bandwidth, ensuring zero latency between the CPU scan cycle and output actuation. When paired with a 1756-PA72 or 1756-PB72 power supply, the system maintains stable 24VDC rail voltage across all I/O modules, preventing voltage sag that could otherwise cause spurious output transitions in high-density I/O configurations.

Architecture Specification Table

Coordinated Control System Design

The 1756-OB16D achieves its full performance potential when deployed within a coordinated ControlLogix system architecture. At the control layer, a 1756-L73 or 1756-L85E controller manages the program scan and issues output commands to the 1756-OB16D via the chassis backplane. For redundant control architectures, a 1756-RM2 redundancy module paired with a secondary 1756-L7x controller ensures seamless bumpless transfer, maintaining output states across controller switchover events — a critical requirement in continuous process industries such as petrochemical refining and power generation.

At the network layer, a 1756-EN3TR dual-port EtherNet/IP communication module bridges the ControlLogix chassis to the plant-wide EtherNet/IP network, enabling remote I/O monitoring, program downloads, and integration with SCADA systems such as Rockwell’s FactoryTalk View SE. For legacy DeviceNet or ControlNet installations, a 1756-DNB or 1756-CNB bridge module can be added to the same chassis, allowing the 1756-OB16D to coexist within mixed-protocol architectures without requiring separate gateway hardware.

At the power layer, the 1756-PA72 AC input power supply or 1756-PB72 DC input power supply provides stable backplane power to the entire chassis, including the 1756-OB16D. In high-availability installations, dual power supplies with a 1756-PSCA2 power supply chassis adapter enable N+1 power redundancy, eliminating the power supply as a single point of failure. At the human-machine interface layer, a PanelView Plus 7 terminal connected via EtherNet/IP provides operators with real-time output status visualization, alarm acknowledgment, and diagnostic fault display — all driven by the diagnostic data generated by the 1756-OB16D’s per-point feedback circuitry.

At the execution layer, the 1756-OB16D’s 16 sourcing outputs directly drive field devices including 24VDC solenoid valves, motor contactor coils, pilot lights, and relay modules such as the 1492-AIFM8-F-5 analog interface module terminal blocks, ensuring clean signal termination and simplified field wiring within the control cabinet.

Application in Layered Automation Systems

In discrete manufacturing environments — automotive assembly, electronics production, and consumer goods packaging — the 1756-OB16D controls pneumatic actuators, conveyor drive contactors, and safety gate interlocks. Its diagnostic output capability allows maintenance teams to detect a failed solenoid coil before it causes an unplanned line stoppage, shifting maintenance from reactive to predictive.

In power generation and electrical utilities, the module is deployed in switchgear control panels and transformer protection systems, where its 2A per-point output rating and short-circuit protection prevent cascading failures in high-consequence switching operations. The 12-Month Warranty and guaranteed spare parts availability through ZYPLC ensure that utility operators can maintain critical system uptime without exposure to long lead-time procurement risks.

In petrochemical and oil & gas processing facilities, the 1756-OB16D operates within SIL-rated safety architectures alongside 1756-L7xS Safety controllers, controlling emergency shutdown (ESD) valve actuators and flare system igniters. Its per-point diagnostic feedback integrates directly with the safety PLC’s fault logging, providing the audit trail required for functional safety compliance under IEC 61511.

In water and wastewater treatment plants, the module drives pump motor starters, chemical dosing valve actuators, and UV disinfection system contactors across distributed remote I/O architectures. When deployed with 1756-EN3TR EtherNet/IP modules, the 1756-OB16D supports fiber-optic network topologies that span large treatment facility footprints, maintaining deterministic control response times regardless of physical distance.

In mining and metallurgical operations, the module’s wide operating temperature range and robust diagnostic architecture make it suitable for crusher control panels, conveyor drive systems, and smelter process control cabinets, where ambient temperatures and vibration levels exceed typical factory conditions. Contextual Integration with existing ControlLogix infrastructure means the 1756-OB16D can be added to an existing chassis without reprogramming the controller — a significant advantage during planned maintenance windows.

Architecture Engineering FAQ

Q1: Is the 1756-OB16D compatible with both older 1756-A series chassis and newer ControlLogix 5580 controllers?
Yes. The 1756-OB16D is fully compatible with all 1756-series ControlLogix chassis (1756-A4, A7, A10, A17) and communicates natively with all ControlLogix controllers from the 1756-L55 through the current 1756-L8x generation, including the 1756-L85E. No firmware or hardware modifications are required. The module’s backplane interface is backward and forward compatible within the ControlLogix platform, supporting Contextual Integration into both legacy and new system architectures without disruption to existing I/O addressing or ladder logic programs.

Q2: Can the 1756-OB16D be used in a redundant ControlLogix architecture, and how does output state transfer work during controller switchover?
Yes. In a ControlLogix redundancy system using the 1756-RM2 redundancy module, the 1756-OB16D participates in bumpless transfer. During a switchover event, the secondary controller assumes control of the chassis and the 1756-OB16D maintains its last commanded output state until the new controller scan cycle updates the output image table. This behavior is configurable in the RSLogix 5000 / Studio 5000 project, and the module’s diagnostic feedback ensures that any output state discrepancy is immediately flagged to the new primary controller, supporting rapid fault recovery in high-availability process control systems.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the 1756-OB16D?
The 12-Month Warranty covers manufacturing defects, electrical component failures, and backplane interface faults under normal operating conditions as defined in the Rockwell Automation 1756-OB16D installation instructions. ZYPLC maintains dedicated inventory of the 1756-OB16D and related ControlLogix components to support rapid replacement during warranty claims and beyond. Our engineering support team provides pre-sales architecture consultation, installation guidance, and post-sales technical assistance to ensure the 1756-OB16D performs reliably within your specific control system architecture throughout its operational lifecycle.
