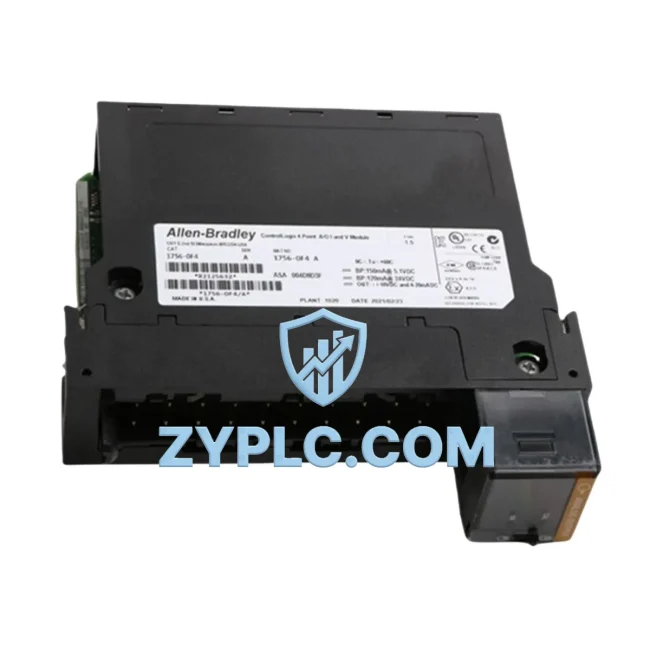

Allen-Bradley 1756-OF4 Energy-Saving Analog Output Module

Allen-Bradley 1756-OF4 Energy-Saving Analog Output Module: Precision Control for Optimized ControlLogix Automation

The Allen-Bradley 1756-OF4 is a 4-channel analog output module engineered for the ControlLogix platform, delivering high-resolution signal output that directly translates into measurable energy savings on the production floor. In modern industrial environments where energy costs and equipment utilization rates are under constant scrutiny, the 1756-OF4 provides the precision control layer that bridges PLC logic and field-level actuators — ensuring that every watt consumed by a drive, valve, or motor is purposeful and accountable.

With 16-bit output resolution across current (4–20 mA) and voltage (0–10 V / ±10 V) signal ranges, the 1756-OF4 eliminates the signal drift and output inaccuracy that cause over-driving of actuators and unnecessary energy consumption. When paired with a PowerFlex 755 variable frequency drive, for example, the module’s stable analog reference signal ensures the drive operates at the precise speed setpoint demanded by the process — not above it — directly reducing motor energy draw during partial-load cycles.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-OF4 does not operate in isolation — its energy optimization value is fully realized when it functions as part of a tightly integrated ControlLogix automation architecture. In a typical energy-aware production cell, the 1756-L85E ControlLogix controller executes the process logic and issues analog setpoints through the 1756-OF4 to field devices such as PowerFlex 525 and PowerFlex 755 variable frequency drives. These drives regulate motor speed in direct proportion to the analog reference, eliminating the energy penalty of fixed-speed operation during variable-load conditions.

On the input side, the 1756-IF16 analog input module collects real-time process feedback — flow rates, pressure, temperature — and feeds this data back to the controller. This closed-loop architecture, anchored by the 1756-OF4’s output precision, ensures that the control system continuously adjusts drive and actuator commands to match actual process demand rather than running at conservative fixed setpoints that waste energy.

For facilities implementing energy monitoring at the panel level, the 1756-OF4 works alongside power monitoring devices such as the PowerMonitor 5000, which measures real-time kWh consumption per circuit. When the controller detects that a drive circuit is consuming above its baseline energy profile — captured via the PowerMonitor 5000 — it can issue corrective analog commands through the 1756-OF4 to reduce the speed reference and bring consumption back within target. This feedback-driven energy correction loop is one of the most effective methods for reducing idle and partial-load energy waste in continuous process lines.

Communication across the system is handled via EtherNet/IP, with the 1756-EN2T communication module bridging the ControlLogix backplane to the plant network. This allows energy data, drive status, and output channel diagnostics to be surfaced in real time on a PanelView Plus 7 HMI, giving operators immediate visibility into energy consumption trends without requiring a separate SCADA layer. The 1756-OB16E digital output module complements the 1756-OF4 by handling discrete switching commands — contactors, solenoids, and relay-driven loads — while the analog module manages the continuous modulation tasks that have the greatest impact on energy efficiency.

In servo-driven applications, the 1756-OF4 can provide analog velocity or torque reference signals to Kinetix 5500 servo drives operating in analog command mode, enabling smooth, energy-efficient motion profiles that reduce mechanical stress and peak current draw during acceleration phases. This is particularly valuable in packaging and assembly lines where frequent start-stop cycles represent a significant portion of total energy consumption.

Power Optimization in Real Production Lines

On a typical continuous process line — such as a water treatment facility, chemical dosing system, or HVAC plant — the 1756-OF4 delivers its energy optimization value through precise pump and fan speed control. By providing a stable, drift-free 4–20 mA reference to a variable frequency drive controlling a centrifugal pump, the module ensures the pump operates on its efficiency curve rather than at a fixed speed with a throttling valve absorbing excess head. This single change — replacing a fixed-speed, valve-throttled pump with a VFD controlled by a high-resolution analog output — can reduce pump energy consumption by 30–50% in partial-load conditions, according to standard affinity law calculations.

In discrete manufacturing environments, the 1756-OF4 contributes to production line takt time optimization by enabling smooth, proportional control of conveyor speeds, tension control systems, and temperature-regulated processes. Rather than relying on on/off control that causes process oscillation and energy spikes, the analog output module allows the controller to maintain setpoints with fine granularity, reducing the frequency of corrective actions and the associated energy transients.

Predictive maintenance integration is another area where the 1756-OF4 adds operational value. When the module’s channel diagnostics detect output deviation — a sign of wiring degradation or load impedance change — the ControlLogix controller can log the event and trigger a maintenance alert before the issue escalates to an unplanned shutdown. Reducing unplanned downtime directly improves Overall Equipment Effectiveness (OEE) and eliminates the energy waste associated with restart cycles, purge sequences, and production ramp-up after an emergency stop.

All units supplied by ZYPLC are sourced from verified supply channels, undergo pre-shipment functional testing covering output accuracy, channel isolation, and backplane communication integrity, and are covered by a 12-month warranty. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and urgent replacement requirements.

Energy Optimization FAQ

Q1: How does the 1756-OF4 contribute to measurable energy savings in a VFD-controlled motor system?
The 1756-OF4 provides a 16-bit analog reference signal to variable frequency drives such as the PowerFlex 525 or PowerFlex 755. The high resolution of this signal means the drive receives an accurate speed setpoint with minimal quantization error, preventing the drive from running the motor faster than the process requires. In systems where even a 5% reduction in motor speed yields a 14% reduction in power consumption (cube law), the output accuracy of the 1756-OF4 directly translates into energy cost savings over continuous operation.

Q2: Is the 1756-OF4 compatible with existing ControlLogix chassis and Studio 5000 projects?
Yes. The 1756-OF4 is a standard 1756-series module and is fully compatible with any ControlLogix 1756 chassis. It is configured and programmed through Studio 5000 Logix Designer using the standard Add-On Profile (AOP), making it a drop-in replacement or expansion module in existing projects without requiring controller firmware upgrades in most cases. Always verify chassis power supply capacity when adding modules to an existing system.

Q3: What is the recommended replacement or upgrade path if the 1756-OF4 is end-of-life in my application?
For applications requiring higher channel density, the 1756-OF8 (8-channel analog output) is the natural upgrade within the ControlLogix platform. For new system designs, Rockwell Automation’s 5069 Compact I/O analog output modules offer a more compact form factor with comparable resolution. ZYPLC can advise on cross-reference and compatibility based on your specific chassis, controller revision, and process requirements.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1756-OF4 unit shipped by ZYPLC undergoes pre-shipment testing that verifies output accuracy across all four channels, backplane communication integrity, and channel isolation. The 12-month warranty covers functional failure under normal operating conditions and includes replacement or repair support. Units are packaged in anti-static protection and shipped with documentation. Contact our technical team at [email protected] or +86 19859288691 for warranty claims or pre-purchase technical consultation.
