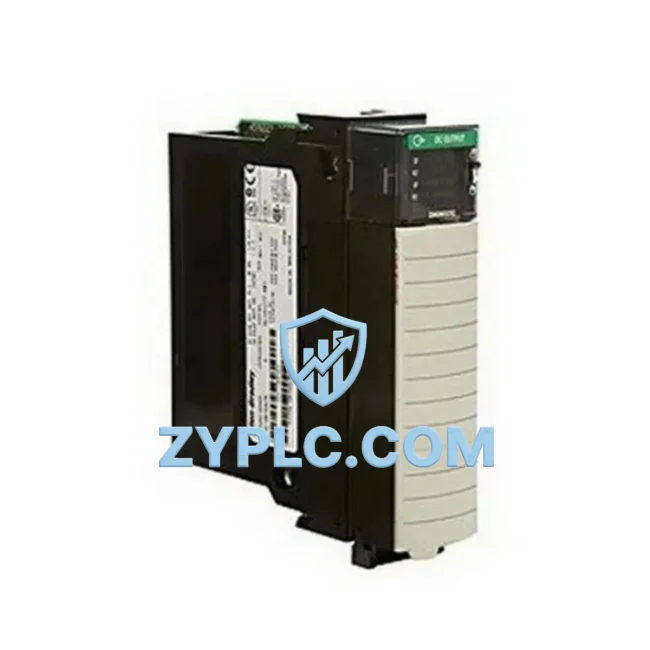

The Allen-Bradley 1756-OG16 is a 16-point TTL (Transistor-Transistor Logic) digital output module engineered for seamless integration within the Rockwell Automation ControlLogix platform. Designed to operate as a precision output interface in demanding industrial environments, the 1756-OG16 delivers reliable, high-speed signal switching that supports the full spectrum of layered automation architectures — from discrete manufacturing lines to complex process control systems in power generation, petrochemical refining, water treatment, and mining operations.

Unlike standalone output devices, the 1756-OG16 is conceived as a system component. Its value is fully realized when deployed within a coordinated ControlLogix chassis alongside complementary modules that together form a coherent, scalable, and redundant control architecture. Understanding its role within the broader system — across the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer — is essential for engineers designing for long-term operational reliability and maintainability.

Architecture Specification Table

Coordinated Control System Design

The 1756-OG16 achieves its highest operational value when integrated within a fully coordinated ControlLogix system. In a typical architecture, the module occupies a slot in a 1756-A10 or 1756-A17 chassis, sharing the backplane with a 1756-L73 or 1756-L85E ControlLogix CPU that executes the ladder logic or function block programs governing output behavior. The CPU communicates scan-cycle output states to the 1756-OG16 across the high-speed ControlLogix backplane, ensuring deterministic signal delivery to connected TTL-level field devices.

Power integrity for the entire chassis — including the 1756-OG16 — is maintained by a 1756-PA75 or 1756-PB75 power supply module, which provides regulated 1.2V, 3.3V, 5V, and 24V DC rails to all installed modules. In redundancy-critical applications such as power substations or continuous process plants, a secondary power supply and a 1756-RM2 redundancy module can be deployed to ensure uninterrupted output control even during primary controller failure.

On the input side, the 1756-OG16 typically works in tandem with digital input modules such as the 1756-IB16 or 1756-IA16, which capture field signals from sensors, limit switches, and proximity detectors. The CPU processes these inputs and drives corresponding outputs through the 1756-OG16 to actuators, relay coils, solenoid valves, or TTL-compatible signal converters. For analog process variables, the 1756-IF8 analog input module or 1756-OF8 analog output module may be co-installed in the same chassis to handle 4–20 mA or 0–10V signals alongside the TTL outputs.

Network connectivity is managed through a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module, which bridges the ControlLogix backplane to the plant-wide Ethernet network, enabling integration with SCADA systems, MES platforms, and remote I/O adapters. For legacy installations requiring ControlNet or DeviceNet connectivity, the 1756-CN2 or 1756-DNB bridge modules provide seamless protocol translation without disrupting the output module’s scan cycle.

At the human-machine interface layer, operator visualization and alarm management are handled by PanelView Plus terminals or FactoryTalk View SE stations communicating via EtherNet/IP to the same ControlLogix controller that drives the 1756-OG16. This closed-loop architecture — from sensor input through CPU logic to TTL output and back to HMI visualization — ensures complete system transparency and rapid fault diagnosis.

All modules sourced through ZYPLC are covered by a 12-Month Warranty and undergo functional testing prior to shipment, ensuring that the 1756-OG16 and its companion modules arrive ready for immediate rack installation and system commissioning.

Application in Layered Automation Systems

In discrete manufacturing environments — automotive assembly, electronics production, and packaging lines — the 1756-OG16 drives TTL-level signals to servo amplifier enable inputs, vision system triggers, barcode scanner gates, and conveyor control relays. Its 16-point density allows a single module to manage an entire production cell’s digital output requirements, reducing chassis slot consumption and simplifying wiring.

In power generation and electrical substation applications, the 1756-OG16 interfaces with protection relay test circuits, breaker control logic, and annunciator panels where TTL-level signaling is required between the ControlLogix controller and downstream protection devices. The module’s optical isolation ensures that high-voltage transients on the field side do not propagate to the backplane, protecting the CPU and communication modules from electrical interference.

In petrochemical and refinery process control systems, the 1756-OG16 is deployed in safety-instrumented system (SIS) architectures where TTL outputs trigger solenoid valve pilot signals, emergency shutdown (ESD) relay coils, and process interlock circuits. When combined with the ControlLogix redundancy module and a hot-standby CPU pair, the system achieves the fault-tolerant output control required for SIL 2 and SIL 3 rated applications.

In water and wastewater treatment facilities, the module controls pump start/stop signals, valve actuator commands, and chemical dosing system triggers across distributed control panels. Its wide operating temperature range and humidity tolerance make it suitable for installation in outdoor control enclosures and pump station panels.

In mining and metallurgical operations, the 1756-OG16 manages conveyor belt control signals, crusher interlock outputs, and ventilation fan control in environments characterized by dust, vibration, and wide temperature swings. The ControlLogix platform’s modular architecture allows maintenance teams to hot-swap the 1756-OG16 without powering down the entire chassis, minimizing production downtime during module replacement.

Architecture Engineering FAQ

Q1: Is the 1756-OG16 compatible with both older and newer ControlLogix chassis and controllers?
Yes. The 1756-OG16 is compatible with all 1756-series chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17, and operates with ControlLogix controllers from the 1756-L55 through the current 1756-L8 series. Firmware compatibility should be verified against the Rockwell Automation Product Compatibility and Download Center (PCDC) for specific controller firmware revisions. ZYPLC provides pre-shipment compatibility verification as part of the 12-Month Warranty service.

Q2: Can the 1756-OG16 be used in a redundant ControlLogix architecture, and what companion modules are required?
The 1756-OG16 can be installed in a redundant ControlLogix system using the 1756-RM2 redundancy module paired with two 1756-L8xE controllers in a primary/secondary chassis configuration. In this architecture, the primary controller drives the 1756-OG16 outputs in normal operation, while the secondary controller maintains a synchronized state and assumes control within milliseconds of a primary failure. The 1756-EN3TR dual-port EtherNet/IP module is recommended for redundant network paths in this configuration. ZYPLC stocks both the 1756-OG16 and its redundancy companion modules, all covered under the same 12-Month Warranty.

Q3: What are the long-term maintenance and inventory supply considerations for the 1756-OG16 in an installed system?
The 1756-OG16 is a mature ControlLogix module with broad installed base across global industrial facilities. ZYPLC maintains dedicated inventory of the 1756-OG16 and related 1756-series modules to support long-term maintenance, emergency replacement, and planned lifecycle refresh programs. All units are tested, serialized, and shipped with a 12-Month Warranty. For facilities managing large ControlLogix installations, ZYPLC offers Contextual Integration support — a service that maps your existing chassis configuration and recommends compatible replacement or expansion modules based on your current architecture, reducing engineering time and procurement risk during maintenance cycles.
