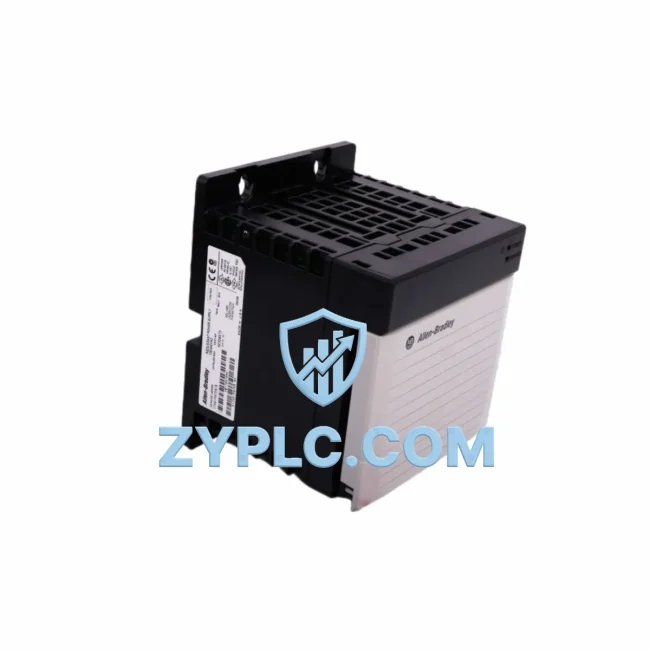

Allen-Bradley 1756-PA75R Energy-Saving ControlLogix Supply

Allen-Bradley 1756-PA75R Energy-Saving ControlLogix Power Supply: Precision Energy Control for Optimized Production Lines

Efficiency Performance Table

Energy-Aware Automation Architecture

The Allen-Bradley 1756-PA75R is a redundant AC power supply engineered for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in global industrial facilities. In high-availability production environments, power supply redundancy is not merely a reliability feature; it is a direct energy optimization strategy. By maintaining two power supplies in active load-sharing mode, the 1756-PA75R prevents the energy spikes and thermal stress associated with cold-start restarts after unplanned outages.

Within a fully integrated ControlLogix system, the 1756-PA75R works in close coordination with the 1756-L85E ControlLogix 5580 CPU, which manages real-time execution of energy-aware ladder logic and function block programs. The CPU communicates with field devices through 1756-EN2T EtherNet/IP communication modules, enabling high-speed data exchange between the power supply status diagnostics and the plant-level SCADA or MES layer. This integration allows operators to monitor power consumption trends and trigger load-shedding routines automatically when energy thresholds are exceeded.

On the drive side, the 1756-PA75R-powered ControlLogix rack typically interfaces with PowerFlex 755 variable frequency drives (VFDs) via EtherNet/IP or DeviceNet. These drives regulate motor speed in response to real-time process demand, dramatically reducing energy consumption during partial-load cycles — a critical factor in pump, fan, and compressor applications where motors traditionally run at fixed speed regardless of actual load. The combination of a stable, redundant power backbone from the 1756-PA75R and adaptive motor control from the PowerFlex 755 can reduce motor-related energy consumption by 20–50% in variable-torque applications.

For servo-driven axes requiring precise positioning and minimal energy waste during deceleration, the ControlLogix platform supports Kinetix 5700 servo drives with shared DC bus architecture. This configuration allows regenerative energy from decelerating axes to be redistributed to accelerating axes within the same bus, rather than being dissipated as heat. The 1756-PA75R ensures the controller backbone remains stable throughout these dynamic energy exchanges, preventing nuisance faults that would otherwise interrupt production cycles.

Power quality and consumption monitoring is handled through 1756-IB16 digital input modules and 1756-OF8 analog output modules that interface with energy meters and smart sensors on the plant floor. When paired with PowerMonitor 5000 power quality analyzers, the ControlLogix system can log real-time kWh data, power factor readings, and harmonic distortion levels — providing the granular energy visibility needed to identify inefficient equipment and prioritize maintenance interventions.

Communication with higher-level energy management systems is facilitated through 1756-ENBT EtherNet/IP bridge modules or 1756-DNB DeviceNet scanner modules, depending on the plant’s existing network topology. These modules allow the ControlLogix rack to publish energy data to Rockwell’s FactoryTalk Energy Manager or third-party ISO 50001-compliant energy management platforms, closing the loop between field-level power consumption and enterprise-level energy reporting.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the 1756-PA75R supports ControlLogix controllers that manage robotic welding sequences with millisecond-level timing precision. By maintaining uninterrupted power to the controller during grid fluctuations, the power supply prevents mid-cycle faults that would require full line restarts — each of which consumes a disproportionate energy surge compared to steady-state operation. Plants that have implemented redundant power supply configurations report a measurable reduction in restart-related energy spikes, contributing to smoother overall energy demand profiles and lower peak demand charges.

In food and beverage processing facilities, where continuous operation is essential for product quality and hygiene compliance, the 1756-PA75R enables the ControlLogix system to maintain conveyor speed control, temperature regulation, and packaging line synchronization without interruption. The redundant power architecture means that a failing power supply can be hot-swapped during production without stopping the line — eliminating the energy cost of a full shutdown and restart cycle, which in large facilities can represent thousands of kilowatt-hours per incident.

For water treatment and pumping stations, where variable-speed pump control is the primary energy optimization lever, the 1756-PA75R provides the reliable controller power needed to sustain closed-loop PID control of pump VFDs. Stable controller operation ensures that pump speed tracks actual flow demand continuously, preventing the energy waste associated with fixed-speed operation or controller-induced hunting behavior. Predictive maintenance routines programmed in Studio 5000 can monitor motor current signatures and bearing vibration data, scheduling maintenance before failures occur and avoiding the energy-intensive process of emergency repairs and system recommissioning.

Inventory availability is maintained to support rapid deployment in both planned upgrades and emergency replacement scenarios. Every unit undergoes functional load testing prior to shipment, verifying output voltage stability, redundancy switchover response time, and thermal performance under rated load conditions. This pre-shipment verification process ensures that the 1756-PA75R arrives ready for immediate installation, minimizing the downtime window and its associated energy and productivity costs.

Energy Optimization FAQ

Q1: How does the 1756-PA75R contribute to energy savings compared to a standard single power supply?
The 1756-PA75R operates in load-sharing mode with a second power supply in the same chassis, distributing the electrical load between two units. This reduces thermal stress on each unit, extends component lifespan, and eliminates the energy-intensive cold-start restarts that follow unplanned power supply failures. The net effect is a more stable energy demand profile and lower total cost of ownership over the system lifecycle.

Q2: Is the 1756-PA75R compatible with existing ControlLogix 1756 chassis and backplanes?
Yes. The 1756-PA75R is fully compatible with all standard ControlLogix 1756 series chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 configurations. It supports hot-swap replacement without requiring chassis power-down, provided a second power supply is installed and operational in the redundant slot.

Q3: What is the recommended replacement or upgrade path for aging ControlLogix power supplies?
For systems currently running single non-redundant power supplies such as the 1756-PA72 or 1756-PB72, upgrading to a dual 1756-PA75R configuration is the recommended path for facilities seeking to improve system availability and energy efficiency simultaneously. The upgrade requires a chassis with dual power supply slots and appropriate backplane support, which is standard in most 1756 series chassis manufactured after 2005.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 1756-PA75R units supplied by ZYPLC are covered by a 12-month warranty against defects in materials and workmanship. Prior to shipment, each unit undergoes a comprehensive functional test protocol including input voltage range verification (85–265 VAC), output voltage regulation under rated load, redundancy switchover timing measurement, and thermal performance assessment. Test records are available upon request. Units that do not meet factory specifications are quarantined and not offered for sale.
