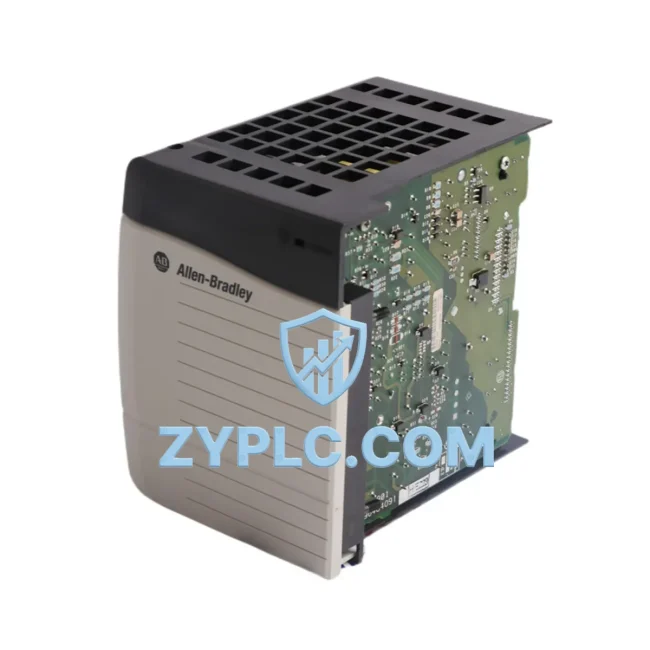

Allen-Bradley 1756-PB75 System-Ready Power Supply for ControlLogix Architecture

Allen-Bradley 1756-PB75 System-Ready Power Supply for ControlLogix Architecture

The Allen-Bradley 1756-PB75 is a 75-watt DC-input power supply module engineered specifically for the Rockwell Automation ControlLogix 1756 platform. Within a layered industrial automation architecture, the power supply is not a peripheral component — it is the foundational layer upon which every other module depends. The 1756-PB75 delivers stable, regulated DC power directly to the 1756 backplane, ensuring that CPU modules, I/O modules, communication adapters, and specialty modules all receive consistent, noise-free power throughout the full operating cycle. Its role in the system is to eliminate power-related faults before they propagate upward into the control logic layer, the network layer, or the human-machine interface layer.

In modern industrial control system design, power architecture is treated as a first-class engineering concern. Engineers specifying a ControlLogix chassis — whether for a standalone machine controller or a distributed process control network — must account for total backplane current draw across all installed modules. The 1756-PB75 is rated to supply up to 75 watts of backplane power, making it suitable for mid-density chassis configurations where a mix of 1756-L7x or 1756-L8x series CPUs, 1756-EN2T or 1756-EN3TR Ethernet/IP communication modules, 1756-IB16 or 1756-OB16E digital I/O modules, and 1756-IF8 or 1756-OF8 analog I/O modules are installed together. Proper power budgeting at the design stage prevents thermal stress, unexpected module resets, and diagnostic faults that are difficult to trace during commissioning.

The 1756-PB75 accepts a 19.2–30 VDC input range, which makes it compatible with standard 24 VDC plant power distribution systems. This input range provides tolerance for voltage sag conditions common in large facilities where long cable runs or high-inrush loads cause transient drops. The module’s internal DC-DC conversion architecture isolates the backplane from input-side noise, protecting sensitive CPU logic and analog signal conditioning circuits from electromagnetic interference generated by variable frequency drives, contactors, and other switching loads present in the same control cabinet.

From a system redundancy perspective, the 1756-PB75 can be paired with a second power supply in a redundant power configuration using the 1756-PSCA2 power supply chassis adapter. This configuration is particularly relevant in high-availability applications such as continuous process plants, power generation facilities, and water treatment systems where unplanned downtime carries significant operational or safety consequences. In a redundant power arrangement, both supplies share the backplane load under normal conditions, and either supply can sustain full system operation independently if the other fails — without requiring a controller restart or I/O scan interruption.

At the network and communication layer, the 1756-PB75 supports the stable operation of EtherNet/IP communication modules such as the 1756-EN2T and 1756-EN3TR, which handle real-time I/O messaging, produced/consumed tag exchange, and explicit messaging to SCADA systems and historian servers. Communication modules are among the highest current consumers in a ControlLogix chassis, and a correctly sized power supply is essential to prevent communication timeouts or CIP connection drops that would otherwise appear as network faults rather than power faults. Similarly, the DeviceNet scanner module 1756-DNB and the ControlNet module 1756-CNB/E depend on stable backplane power to maintain deterministic scan cycles across field device networks.

In the I/O layer, the 1756-PB75 supports the full range of 1756 series digital and analog I/O modules. High-density output modules such as the 1756-OB32 draw significant backplane current during simultaneous output switching events, and the 1756-PB75’s regulated output ensures that these transient current demands do not affect the voltage stability seen by the CPU or communication modules sharing the same chassis. For analog I/O applications — including the 1756-IF16 16-channel analog input module used in temperature, pressure, and flow measurement — power supply stability directly affects measurement accuracy and signal resolution.

From a maintenance and lifecycle management perspective, the 1756-PB75 is a field-replaceable module that can be swapped without removing the chassis from the panel or disconnecting field wiring. This hot-swap capability, combined with the module’s diagnostic LED indicators for power good, input voltage status, and fault conditions, significantly reduces mean time to repair in production environments. Maintenance teams can identify a failing power supply before it causes a system shutdown, order a replacement from verified inventory, and complete the swap during a planned maintenance window rather than an emergency response.

For system integrators and OEM machine builders, sourcing the 1756-PB75 from a reliable supply chain partner with documented 12-Month Warranty coverage is a critical procurement requirement. Warranty coverage ensures that any module exhibiting early-life failure — whether due to manufacturing defect or shipping damage — can be replaced without additional cost, protecting the project budget and the commissioning schedule. Our inventory of 1756-PB75 modules is maintained in climate-controlled storage, inspected prior to shipment, and supported by full after-sales technical assistance for architecture compatibility questions, power budget calculations, and installation guidance.

Architecture Specification Table

Coordinated Control System Design

The 1756-PB75 operates at the base of a coordinated ControlLogix system architecture. A typical mid-scale system built around this power supply might include a 1756-L73 ControlLogix CPU as the primary logic controller, supported by a 1756-EN2T EtherNet/IP communication module for upstream SCADA connectivity and peer-to-peer controller messaging. Digital field signals are collected through 1756-IB16 24VDC digital input modules and controlled via 1756-OB16E electronically fused digital output modules, while process variables such as temperature, pressure, and flow are handled by 1756-IF8 analog input modules. Analog control outputs to positioners and control valves are issued through 1756-OF8 analog output modules.

For applications requiring motion control integration, the 1756-PB75 supports chassis configurations that include 1756-M02AE servo drive interface modules coordinating with Kinetix series servo drives on the machine axis layer. Where legacy field devices communicate over DeviceNet, a 1756-DNB DeviceNet scanner module bridges the field network to the ControlLogix backplane. In high-availability process applications, a second 1756-PB75 is installed alongside the primary supply using the 1756-PSCA2 redundant power chassis adapter, ensuring that a single power supply failure does not interrupt the control system. The entire chassis assembly is typically mounted within a 1756-A10 or 1756-A17 ControlLogix chassis, selected based on the total module count required by the application.

Application in Layered Automation Systems

The 1756-PB75 is deployed across a wide range of industrial sectors where the ControlLogix platform is the standard control architecture. In automotive manufacturing and general discrete manufacturing, it powers ControlLogix systems managing robotic welding cells, conveyor sequencing, and assembly line interlocking, where high-speed digital I/O scanning and deterministic EtherNet/IP communication are essential. In oil and gas processing and petrochemical plants, the 1756-PB75 supports SIL-rated safety instrumented system architectures where redundant power is a design requirement, and where the module’s Class I Division 2 certification allows installation in hazardous area control rooms.

In water and wastewater treatment facilities, the 1756-PB75 powers ControlLogix systems managing pump station sequencing, chemical dosing control, and SCADA telemetry — applications where continuous operation over multi-year maintenance cycles demands a power supply with proven reliability and available spare inventory. In mining and minerals processing, the module supports crusher control, conveyor drive coordination, and process monitoring systems operating in high-vibration, high-dust environments. In power generation and electrical utilities, ControlLogix systems powered by the 1756-PB75 handle turbine auxiliary control, switchgear automation, and substation protection relay coordination. Across all these sectors, the combination of 75-watt backplane capacity, 24 VDC input compatibility, redundancy support, and 12-Month Warranty coverage makes the 1756-PB75 a reliable long-term component choice for both new system builds and existing system maintenance programs.

Architecture Engineering FAQ

Q1: Is the 1756-PB75 compatible with all ControlLogix 1756 chassis sizes, and how do I calculate whether it provides sufficient power for my configuration?
The 1756-PB75 is compatible with all standard 1756 ControlLogix chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. To verify power sufficiency, sum the backplane current draw (in watts) of all modules installed in the chassis — including the CPU, all I/O modules, communication modules, and any specialty modules — and confirm the total does not exceed 75 W. Rockwell Automation’s Chassis Power Estimator tool and individual module specifications in the 1756 Selection Guide provide the per-module power consumption values needed for this calculation. If the total exceeds 75 W, a higher-capacity supply such as the 1756-PA75 (AC input) or a redundant dual-supply configuration should be considered.

Q2: Can the 1756-PB75 be used in a redundant power supply configuration, and what additional hardware is required?
Yes. The 1756-PB75 supports redundant power operation when used with the 1756-PSCA2 Power Supply Chassis Adapter. Two 1756-PB75 modules are installed in the PSCA2 adapter, which connects to the chassis power supply slot. Under normal operation, both supplies share the load. If one supply fails, the other assumes full load without interrupting the controller or I/O scan. This configuration is recommended for all applications where unplanned downtime is unacceptable, including continuous process control, safety-critical systems, and 24/7 production environments. No firmware changes or controller configuration modifications are required to enable redundant power operation.

Q3: What does the 12-Month Warranty cover, and how does it support long-term system maintenance planning?
The 12-Month Warranty covers the 1756-PB75 module against defects in materials and workmanship from the date of shipment. If the module exhibits any failure attributable to manufacturing defect within the warranty period, it will be replaced at no additional cost. For system maintenance planning, this warranty provides a defined risk-free period during which spare inventory can be established, commissioning can be completed, and the system can be validated under production conditions. Our technical support team is available to assist with power budget verification, redundancy configuration, and installation troubleshooting throughout the warranty period and beyond. Contextual Integration support ensures that the 1756-PB75 is correctly specified within the broader ControlLogix architecture from initial design through long-term operation.
