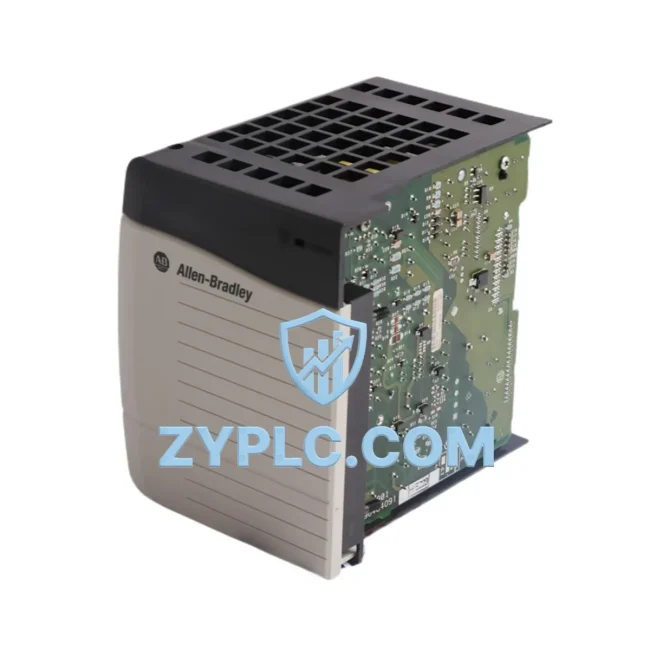

Allen-Bradley 1756-PB75R Energy-Saving Power Supply ControlLogix

Allen-Bradley 1756-PB75R Energy-Saving Power Supply for ControlLogix Automation

The Allen-Bradley 1756-PB75R is a high-efficiency 75W DC input power supply module engineered for the ControlLogix platform — one of Rockwell Automation’s most widely deployed industrial control architectures. Designed to deliver stable, regulated power to ControlLogix chassis backplanes, the 1756-PB75R plays a foundational role in reducing unnecessary energy draw at the control layer, ensuring that every watt consumed by the automation system translates directly into productive machine operation rather than thermal loss or voltage instability.

In modern manufacturing environments where energy cost per production unit is under constant scrutiny, the power supply is often an overlooked optimization point. The 1756-PB75R addresses this by providing tightly regulated DC bus power that minimizes ripple and transient spikes — conditions that force downstream modules such as the 1756-L85E or 1756-L84E ControlLogix processors to compensate, consuming additional processing cycles and generating excess heat. By maintaining a clean power envelope, the 1756-PB75R directly supports the efficiency of the entire control rack.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-PB75R does not operate in isolation — its efficiency impact is amplified when integrated within a well-designed ControlLogix automation architecture. In a typical high-throughput production cell, the power supply feeds a chassis populated with modules such as the 1756-EN2T EtherNet/IP communication module, which handles real-time data exchange between the PLC and upstream SCADA or MES systems. Accurate, low-latency data transmission enabled by a stable power rail means the control system can respond to energy anomalies — such as motor overcurrent or drive fault conditions — within milliseconds rather than scan-cycle delays.

On the drive side, the 1756-PB75R-powered ControlLogix processor typically interfaces with PowerFlex 755 variable frequency drives via EtherNet/IP or DeviceNet, enabling closed-loop speed regulation on conveyor motors, pump systems, and compressor drives. When the PLC receives feedback from a 1756-IB16 digital input module indicating a downstream bottleneck — such as a filled buffer or a paused downstream station — it can command the PowerFlex 755 to ramp down motor speed, cutting energy consumption proportionally to the cube of speed reduction. This dynamic load management is only reliable when the control rack itself draws consistent, predictable power, which the 1756-PB75R ensures.

For analog process control loops — such as pressure regulation in pneumatic systems or temperature control in curing ovens — the 1756-OF8 analog output module and 1756-IF16 analog input module provide the signal conditioning layer. These modules are sensitive to power quality; voltage sag or ripple on the backplane bus can introduce offset errors in analog signals, leading to over-actuation of control valves or heaters and unnecessary energy expenditure. The 1756-PB75R’s regulated output eliminates this source of control inefficiency.

In redundant control architectures — where the “R” suffix of the 1756-PB75R is particularly relevant — a secondary power supply operates in hot-standby mode alongside a 1756-RM2 redundancy module. This configuration ensures zero-downtime switchover during power supply degradation events, preventing the energy waste and production loss associated with unplanned shutdowns. Paired with a 1756-L85E redundant controller, the system maintains continuous program execution and I/O scanning without interruption.

At the field device level, 1756-IB32 high-density digital input modules aggregate status signals from sensors, limit switches, and proximity detectors across the production line. The 1756-PB75R’s ability to sustain full chassis power under peak I/O scan loads — without voltage droop — ensures that all 32 input channels report accurately and simultaneously, supporting the precise timing required for high-speed assembly or packaging lines where production rhythm (takt time) is measured in milliseconds.

For human-machine interface integration, the ControlLogix system communicates with PanelView Plus 7 HMI terminals over EtherNet/IP, providing operators with real-time visibility into energy consumption metrics, drive status, and alarm conditions. When energy monitoring data — sourced from PowerMonitor 5000 power quality meters installed at the MCC level — is fed back into the ControlLogix program via the 1756-EN2T, operators can correlate production throughput with energy draw in real time, identifying inefficient operating windows and scheduling high-energy processes during off-peak tariff periods.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, where ControlLogix systems coordinate robot controllers, servo axes, and weld timers simultaneously, the 1756-PB75R’s redundant power architecture prevents the single-point failures that cause line stoppages. A 60-second unplanned stop on a high-volume welding line can represent thousands of dollars in lost production and wasted energy from idle heating systems and pressurized pneumatics. By eliminating power supply as a failure mode, the 1756-PB75R directly reduces the frequency and duration of such events.

In food and beverage processing facilities, where variable-speed conveyor systems and CIP (clean-in-place) pump stations are controlled by ControlLogix PLCs, the ability to dynamically adjust motor speeds based on real-time production demand — enabled by stable PLC operation — can reduce motor energy consumption by 20–40% compared to fixed-speed operation. The 1756-PB75R ensures the control system remains online and responsive throughout these demand-variable operating cycles.

For water and wastewater treatment applications, where pump stations may run continuously for months between maintenance intervals, the 1756-PB75R’s industrial-grade design supports extended MTBF (mean time between failures). Predictive maintenance strategies — implemented through ControlLogix program logic that monitors drive current signatures and compares them against baseline profiles — depend on the PLC remaining operational without interruption. A power supply failure in this context not only causes a control outage but can trigger regulatory compliance violations due to unmonitored discharge events.

Every unit shipped from ZYPLC undergoes functional load testing prior to dispatch, verifying output voltage stability under rated load conditions. This pre-shipment testing protocol, combined with the 12-month warranty, ensures that the 1756-PB75R arrives ready for immediate installation and commissioning — minimizing the engineering time and energy associated with incoming inspection and burn-in testing at the customer’s facility.

Energy Optimization FAQ

Q1: How does the 1756-PB75R contribute to energy savings in a ControlLogix system?
The 1756-PB75R provides a stable, regulated DC bus that eliminates voltage compensation overhead in connected I/O and communication modules. This reduces the aggregate power draw of the control rack and enables reliable closed-loop energy management strategies — such as variable-speed drive control and demand-based load shedding — to execute without control system interruptions.

Q2: Is the 1756-PB75R compatible with both 5570 and 5580 series ControlLogix processors?
Yes. The 1756-PB75R is compatible with the full range of 1756 ControlLogix chassis and supports both the 5570 series (e.g., 1756-L71, 1756-L75) and 5580 series (e.g., 1756-L82E, 1756-L85E) processors. It is also compatible with redundancy configurations using the 1756-RM2 module.

Q3: What is the recommended replacement or upgrade path for aging ControlLogix power supplies?
For systems currently running the 1756-PA75 (AC input) or earlier DC power supply variants, the 1756-PB75R offers a direct form-factor replacement for DC-input applications. Before replacement, verify the chassis slot configuration and input voltage source. ZYPLC can provide pre-replacement consultation to confirm compatibility and minimize commissioning time.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 1756-PB75R units supplied by ZYPLC are tested under rated load conditions to verify output voltage regulation, ripple performance, and redundancy switching function (where applicable). The 12-month warranty covers functional defects arising from normal industrial use. Units that fail during the warranty period are replaced or repaired at no additional cost, with expedited dispatch to minimize production downtime.
