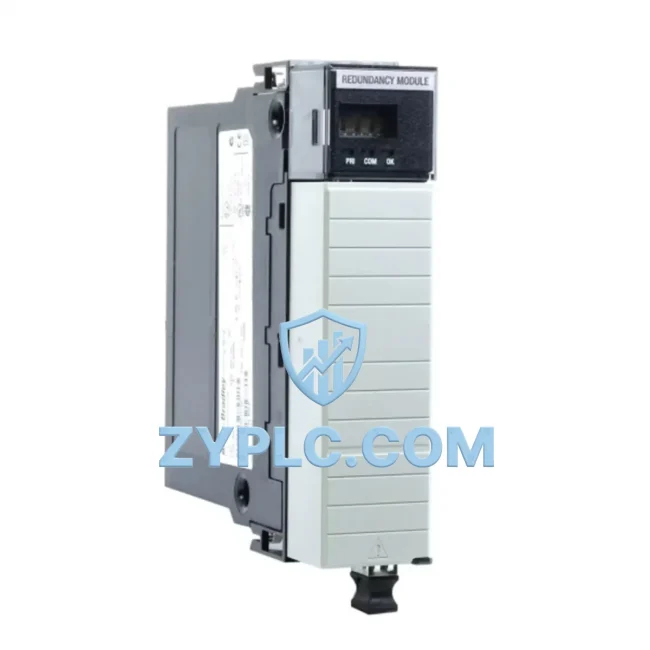

Allen-Bradley 1756-RM/B Energy-Saving Redundancy Module

Allen-Bradley 1756-RM/B Energy-Saving Redundancy Module: Efficiency Control and Production Line Optimization

The Allen-Bradley 1756-RM/B is a high-performance redundancy module designed for the ControlLogix platform, engineered to deliver continuous system availability while minimizing unnecessary energy consumption across mission-critical industrial automation environments. In modern manufacturing, unplanned downtime is not merely a productivity loss — it is a direct driver of energy waste, as idle actuators, cooling systems, and auxiliary drives continue to draw power during recovery cycles. The 1756-RM/B eliminates this inefficiency by enabling seamless controller switchover in under 10 milliseconds, ensuring that production lines maintain their operational rhythm without energy-intensive restart sequences.

Deployed within a ControlLogix chassis alongside the 1756-L7x or 1756-L8x series controllers, the 1756-RM/B synchronizes primary and secondary controller states in real time. This synchronization extends beyond logic execution — it encompasses I/O data, motion state, and communication status, meaning that when a switchover occurs, variable-frequency drives such as the PowerFlex 755 or PowerFlex 525 do not experience abrupt stop-start cycles that spike current draw and accelerate motor wear. The result is a measurable reduction in peak energy demand and a significant extension of motor and drive service life.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756-RM/B operates as the backbone of a redundant ControlLogix system, but its energy impact is best understood in the context of the broader automation architecture it supports. In a typical high-availability production cell, the primary controller — a 1756-L74 or 1756-L83 — manages real-time execution of motion profiles, PID loops, and sequential logic. The 1756-RM/B maintains a live mirror of this state in the secondary chassis, so that if a fault occurs, the secondary controller assumes control without interrupting the 1756-OB16D digital output modules driving solenoids, conveyors, or press actuators.

On the drive side, the PowerFlex 755 variable-frequency drives connected via the 1756-EN2T EtherNet/IP communication module continue their speed ramp profiles uninterrupted. This is critical for energy efficiency: a drive that is allowed to coast and restart from zero speed consumes two to three times more energy during acceleration than one that maintains its operating point through a bumpless controller transfer. The 1756-RM/B makes this possible by preserving the drive reference values and feedback states across the switchover event.

For energy monitoring, the system integrates with power measurement devices such as the PowerMonitor 5000, which feeds real-time kWh, power factor, and harmonic distortion data back to the ControlLogix platform via EtherNet/IP. The 1756-RM/B ensures that this monitoring loop is never interrupted, providing continuous visibility into energy consumption even during controller maintenance windows. Operators using a PanelView Plus 7 HMI can observe live energy dashboards and receive alerts when consumption deviates from baseline — enabling immediate corrective action before inefficiency compounds into measurable cost.

The 1756-IB16 and 1756-OB16I I/O modules within the same chassis provide the discrete signal infrastructure for energy-relevant interlocks — motor run permissives, cooling fan controls, and compressed air valve sequencing. By maintaining these I/O states through a redundancy switchover, the 1756-RM/B prevents the false-start conditions that cause pneumatic and hydraulic systems to cycle unnecessarily, a common but overlooked source of energy waste in automated assembly lines.

For servo-driven axes, the Kinetix 5700 servo drives coordinated through the 1756-L8x controller retain their position and velocity references during switchover, eliminating the homing cycles that consume both time and energy. In high-throughput packaging or machining applications, avoiding even one unnecessary homing sequence per shift can recover several kilowatt-hours of energy and meaningfully improve overall equipment effectiveness (OEE).

Power Optimization in Real Production Lines

In process industries such as water treatment, chemical processing, and oil and gas, the 1756-RM/B delivers its most significant energy optimization value by preventing the uncontrolled shutdown of large pump and compressor motors. When a primary controller fails without redundancy, variable-speed pump drives typically trip on loss-of-reference, causing the pump to decelerate uncontrolled and then restart at full speed — a sequence that generates substantial inrush current and mechanical stress. With the 1756-RM/B maintaining controller continuity, the PowerFlex 755 drives managing these pumps receive uninterrupted speed references, allowing them to continue operating at their energy-optimal points on the pump curve.

In discrete manufacturing — automotive body shops, electronics assembly, food and beverage lines — the energy benefit manifests differently. Here, the 1756-RM/B prevents the production line from entering an unscheduled stop state, which would require operators to manually re-initialize conveyors, re-home robots, and re-prime filling systems. Each of these restart activities consumes energy and, more importantly, generates scrap that represents embedded energy already spent in upstream processes. By keeping the line running through controller faults, the 1756-RM/B reduces both direct energy consumption and the indirect energy cost of rework and waste.

Predictive maintenance integration further amplifies these gains. The 1756-RM/B exposes diagnostic counters — switchover counts, synchronization loss events, and communication error rates — that can be trended in FactoryTalk Historian or exported via the 1756-ENBT communication module to cloud analytics platforms. Maintenance teams that monitor these trends can identify degrading network infrastructure or aging power supplies before they cause unplanned outages, shifting from reactive to predictive maintenance postures that reduce both downtime and the energy cost of emergency recovery operations.

Every unit supplied by ZYPLC undergoes a full functional test prior to shipment, including redundancy switchover verification, communication integrity checks, and power supply load testing. This outgoing quality process ensures that the 1756-RM/B arrives ready for immediate installation, backed by a 12-month warranty that covers both parts and labor for any manufacturing defects identified during normal operation.

Energy Optimization FAQ

Q1: How does the 1756-RM/B reduce energy consumption compared to a non-redundant ControlLogix system?
By enabling bumpless controller switchover in under 10 milliseconds, the 1756-RM/B eliminates the stop-start energy spikes associated with unplanned controller faults. Variable-frequency drives, servo axes, and process pumps maintain their operating points through the switchover, avoiding the high inrush currents and mechanical losses that occur during full restarts. In high-utilization facilities, this can reduce peak demand charges and improve overall energy efficiency by several percentage points annually.

Q2: Is the 1756-RM/B compatible with my existing ControlLogix chassis and firmware?
The 1756-RM/B is compatible with ControlLogix 1756-L7x and 1756-L8x series controllers running RSLogix 5000 or Studio 5000 Logix Designer. It requires a matched pair of identical chassis and power supplies (such as the 1756-PA75 or 1756-PB75) and is configured through the redundancy module configuration utility within Studio 5000. If you are upgrading from an earlier redundancy module, firmware compatibility should be verified against Rockwell Automation’s compatibility matrix prior to installation.

Q3: Can the 1756-RM/B replace an older 1756-RM or 1756-RMA module?
The 1756-RM/B is the B-series revision of the ControlLogix redundancy module and offers improved synchronization performance and diagnostic capabilities over earlier revisions. Direct replacement is generally supported within the same chassis form factor, but firmware levels on both the module and the paired controllers must be aligned. ZYPLC’s technical team can assist with compatibility assessment and provide tested, matched module pairs to simplify the upgrade process.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1756-RM/B supplied by ZYPLC is tested prior to shipment through a structured outgoing quality control process that includes redundancy switchover functional verification, EtherNet/IP communication integrity testing, and power supply load cycling. The 12-month warranty covers defects in materials and workmanship identified during normal operation within the specified environmental and electrical ratings. Warranty claims are processed directly through ZYPLC, with replacement units dispatched from in-stock inventory to minimize any impact on production continuity.
