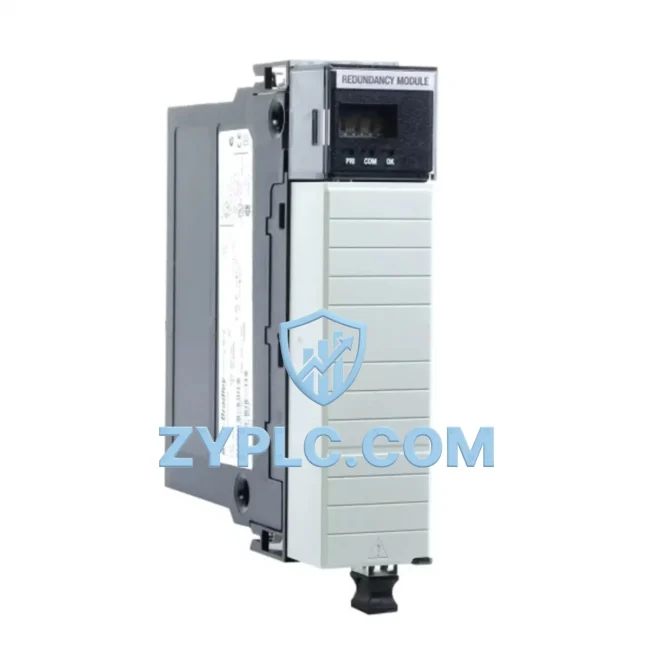

Allen-Bradley 1756-RM Energy-Saving Redundancy Module: Precision Control for Production Line Efficiency
The Allen-Bradley 1756-RM is a high-performance redundancy module engineered for the ControlLogix platform, purpose-built to eliminate unplanned downtime, reduce energy waste, and sustain optimal production line throughput in demanding industrial environments. By enabling seamless controller switchover without process interruption, the 1756-RM ensures that energy-intensive production assets — motors, drives, conveyors, and process equipment — continue operating at peak efficiency even during controller faults, dramatically reducing the energy cost of restart cycles and idle-state losses.
In modern manufacturing, unplanned shutdowns are among the most significant sources of hidden energy waste. Every emergency stop triggers a cold-start sequence that consumes disproportionate power, stresses mechanical components, and disrupts production rhythm. The 1756-RM addresses this at the control architecture level, maintaining continuous execution of the ControlLogix control program and preserving the operational state of connected field devices — including variable frequency drives, servo amplifiers, and distributed I/O modules — so that energy consumption remains stable and predictable.
Efficiency Performance Table
| Parameter |
Specification / Value |
| SKU / Part Number |
1756-RM |
| Brand / Series |
Allen-Bradley / ControlLogix |
| Product Category |
Redundancy Module |
| Switchover Time |
< 1 scan cycle (bumpless transfer) |
| Power Consumption |
Low-standby architecture; active only during switchover events |
| Operating Efficiency |
Eliminates cold-start energy spikes; sustains continuous process state |
| Compatible Systems |
ControlLogix 1756 chassis, Logix 5000 firmware, EtherNet/IP networks |
| Application Environment |
Process manufacturing, oil & gas, water treatment, automotive, power generation |
| Energy Optimization Value |
Prevents restart energy surges; maintains drive and motor operational state |
| Origin |
United States |
| Warranty |
12-Month Warranty |
| Stock Status |
In Stock — Ships After Outgoing Test |
Energy-Aware Automation Architecture
The 1756-RM operates at the heart of a redundant ControlLogix system, working in concert with a primary and secondary 1756-L7x or 1756-L8x ControlLogix CPU installed in paired 1756 chassis. The redundancy module continuously synchronizes program data, I/O state, and communication status between the two controllers, ensuring that the secondary controller can assume control instantaneously without disrupting downstream field devices.
On the drive side, the 1756-RM preserves the commanded speed references and torque setpoints sent to PowerFlex 755 variable frequency drives and PowerFlex 525 compact drives, preventing the energy-intensive deceleration and re-acceleration cycles that occur when a drive loses its reference signal. In servo-driven axes, the module maintains the motion state managed by the 1756-M02AE servo drive interface module, keeping positioning accuracy and cycle time intact across a controller switchover.
At the I/O level, the 1756-RM works alongside 1756-EN2T EtherNet/IP communication modules to maintain real-time data exchange with remote I/O adapters and distributed field panels. This ensures that analog input signals from energy meters, flow transmitters, and temperature sensors — feeding into the control program via 1756-IF16 analog input modules — remain uninterrupted, preserving the accuracy of energy consumption calculations and process control loops.
For power quality monitoring, the redundant ControlLogix system integrates with PowerMonitor 5000 energy analyzers via EtherNet/IP, enabling continuous tracking of kWh consumption, power factor, and harmonic distortion across production zones. The 1756-RM ensures that this monitoring data stream is never interrupted by a controller fault, giving energy managers a complete and unbroken record of facility power usage for demand management and utility billing verification.
On the operator interface side, PanelView Plus 7 HMI terminals connected via EtherNet/IP continue to display live process data and energy dashboards without screen blanking or reconnection delays during a switchover event, maintaining operator situational awareness and preventing manual interventions that could disrupt energy-optimized process setpoints.
Power Optimization in Real Production Lines
In continuous process industries — chemical plants, water treatment facilities, and food and beverage production lines — the 1756-RM delivers measurable energy savings by eliminating the restart energy penalty. When a conventional single-controller system faults, the controlled process must be safely shut down and restarted, a sequence that typically consumes 3–7 times the steady-state power draw of the affected motor and drive systems during the acceleration phase. With the 1756-RM providing bumpless controller switchover, this energy spike is entirely avoided.
In automotive body shop and assembly line applications, the module preserves the production line beat — the carefully optimized cycle time that determines throughput per unit of energy consumed. A single unplanned stop in a synchronized multi-robot cell can cascade into minutes of idle energy consumption across dozens of servo axes and pneumatic actuators waiting for the line to restart. The 1756-RM prevents this cascade by keeping the control system live through any single controller failure.
For predictive maintenance programs, the continuous operation enabled by the 1756-RM allows condition monitoring algorithms running in the ControlLogix program to accumulate uninterrupted runtime data on motor current signatures, drive thermal loads, and vibration trends. This data continuity is essential for accurate remaining useful life calculations — interruptions in the data stream can reset trend baselines and delay the detection of developing faults, leading to higher energy consumption from degraded equipment running past its optimal maintenance window.
From a supply and logistics perspective, the 1756-RM is maintained in verified stock, undergoes outgoing functional testing prior to shipment, and is covered by a 12-month warranty, ensuring that replacement units are available for rapid deployment in critical redundancy applications without extended lead times that could force production compromises.
Energy Optimization FAQ
Q1: How does the 1756-RM directly reduce energy consumption in a production facility?
By enabling bumpless controller switchover, the 1756-RM eliminates the high-current restart transients that occur when a faulted controller forces a process shutdown and cold restart. In motor and drive-intensive applications, these restart surges can represent significant demand charges on utility bills. Continuous operation also allows energy optimization algorithms in the ControlLogix program — such as load shedding, speed profiling, and power factor correction routines — to run without interruption.
Q2: Is the 1756-RM compatible with existing ControlLogix systems, and what firmware is required?
The 1756-RM is designed for the Allen-Bradley ControlLogix 1756 platform and is compatible with Logix 5000 firmware. It requires a matched pair of ControlLogix chassis with compatible CPU modules (such as the 1756-L71, 1756-L73, or 1756-L75) and the appropriate redundancy firmware bundle. Compatibility should be verified against the specific firmware revision of the installed CPUs before deployment.
Q3: Can the 1756-RM replace an older redundancy module, and what is the recommended upgrade path?
The 1756-RM is the standard redundancy module for the ControlLogix platform and can replace earlier-generation redundancy modules in existing 1756 chassis installations, subject to firmware compatibility verification. When upgrading from an older module, it is recommended to update the ControlLogix CPU firmware to the latest compatible redundancy bundle version and to perform a full switchover test after installation to validate bumpless transfer performance before returning the system to production.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1756-RM unit is subject to outgoing functional testing to verify communication synchronization, switchover initiation, and module health reporting before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped from verified stock with full traceability documentation, supporting quality management requirements in regulated industries.
