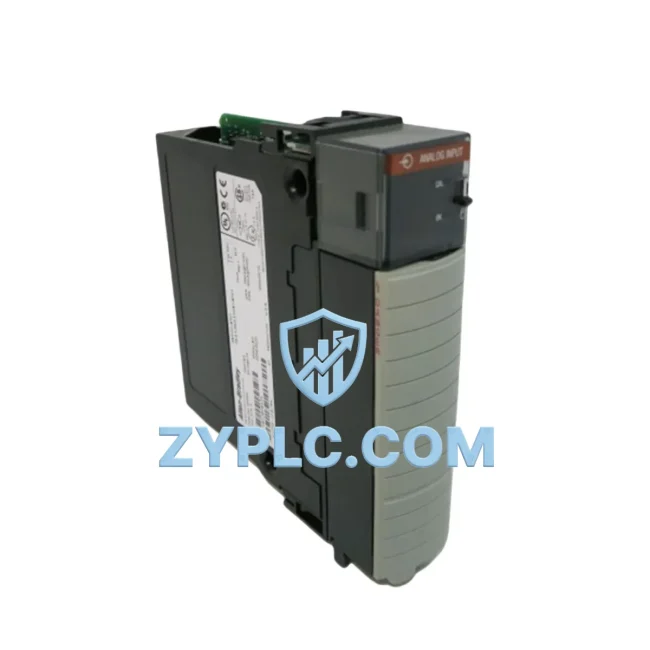

Allen-Bradley 1756SC-IF8U Energy-Saving Analog Input Module

Allen-Bradley 1756SC-IF8U Energy-Saving Analog Input Module: Precision Energy Control for Optimized ControlLogix Automation

The Allen-Bradley 1756SC-IF8U is a high-performance universal analog input module engineered for the ControlLogix platform, purpose-built to deliver measurable improvements in energy efficiency, motor control accuracy, and production line throughput. In modern industrial environments where energy costs and equipment utilization directly impact profitability, the 1756SC-IF8U provides the signal acquisition precision that enables smarter, leaner automation decisions across the entire drive and control chain.

Designed for demanding process and discrete manufacturing environments, the 1756SC-IF8U accepts a wide range of analog signal types — including voltage, current, thermocouple, and RTD inputs — making it a versatile front-end sensor interface for energy monitoring systems, motor feedback loops, and process variable acquisition. Its universal input capability eliminates the need for multiple specialized modules, reducing panel footprint, wiring complexity, and associated energy losses from redundant hardware.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1756SC-IF8U does not operate in isolation — it is the sensory nerve of a broader energy-aware automation architecture. In a typical ControlLogix-based production system, the module interfaces directly with the 1756-L73 ControlLogix CPU, where real-time analog data is processed and translated into actionable control outputs. This tight integration with the processor ensures minimal scan-time latency, which is critical for responsive energy management in high-cycle applications.

On the drive side, the analog feedback signals captured by the 1756SC-IF8U are frequently used to govern PowerFlex 755 variable frequency drives, enabling precise speed and torque regulation of AC induction motors. By feeding accurate process variables — such as flow rate, pressure, or temperature — directly into the VFD control loop, the system eliminates motor over-speeding and the associated energy waste. In pump and fan applications alone, this closed-loop approach can reduce motor energy consumption by 20–40% compared to fixed-speed operation.

For servo-driven axes, the 1756SC-IF8U works alongside Kinetix 5700 servo drives and their associated 2198-Dxxx servo drive modules to provide analog position and force feedback, enabling energy-efficient motion profiles that minimize jerk, overshoot, and regenerative braking losses. The result is smoother production line rhythm, reduced mechanical wear, and lower peak power demand — all of which contribute to measurable energy savings over a production shift.

On the I/O expansion side, the 1756SC-IF8U is commonly deployed alongside 1756-IB16 digital input modules and 1756-OB16E digital output modules within the same ControlLogix chassis, creating a unified data acquisition and control layer. This co-location minimizes inter-module communication overhead and supports deterministic control timing — a prerequisite for energy-efficient sequencing in multi-axis or multi-zone production lines.

For energy monitoring and power quality analysis, the 1756SC-IF8U integrates naturally with PowerMonitor 5000 energy meters, which provide harmonic analysis, power factor measurement, and demand forecasting. The analog outputs from PowerMonitor 5000 can be fed back into the 1756SC-IF8U for closed-loop power factor correction strategies, enabling the ControlLogix system to dynamically adjust drive parameters and reduce reactive power penalties.

At the human-machine interface layer, operators interact with the energy data collected by the 1756SC-IF8U through PanelView Plus 7 HMI terminals, which display real-time energy consumption trends, alarm states, and production efficiency KPIs. This visibility empowers line supervisors to make informed decisions about equipment scheduling, load balancing, and preventive maintenance — all without leaving the production floor.

Network connectivity is handled through the 1756-EN2T EtherNet/IP communication module, which bridges the ControlLogix backplane to the plant-wide SCADA and MES infrastructure. This enables the energy data captured by the 1756SC-IF8U to be aggregated at the enterprise level, supporting ISO 50001 energy management reporting and continuous improvement initiatives.

Power Optimization in Real Production Lines

In real-world production environments, the 1756SC-IF8U delivers its greatest energy impact through the quality and consistency of its analog signal acquisition. Poorly conditioned or noisy analog signals force control systems into conservative, energy-wasteful operating modes — wider dead bands, slower response times, and higher safety margins on motor speed and torque. The 1756SC-IF8U’s 16-bit resolution and high common-mode rejection ratio eliminate these inefficiencies, allowing drives and actuators to operate closer to their optimal efficiency points.

In a food and beverage bottling line, for example, the 1756SC-IF8U monitors fill-level sensors and conveyor tension transducers in real time. The ControlLogix CPU uses this data to dynamically adjust the speed of PowerFlex 755 drives on the conveyor and filling stations, eliminating the energy waste associated with fixed-speed operation during low-demand periods. The result is a measurable reduction in kWh per unit produced — a key metric for sustainability reporting and operational cost reduction.

In HVAC and building automation applications integrated with industrial processes, the 1756SC-IF8U captures temperature and humidity signals from field sensors, enabling the ControlLogix system to optimize chiller and air handling unit operation based on actual thermal load rather than scheduled setpoints. This demand-driven approach reduces compressor run time, lowers peak electrical demand charges, and extends equipment service life.

Predictive maintenance is another area where the 1756SC-IF8U contributes to energy optimization. By continuously monitoring vibration transducer outputs, motor current signatures, and bearing temperature sensors, the module provides the raw data needed for condition-based maintenance algorithms. Early detection of motor bearing degradation or pump cavitation allows maintenance teams to intervene before efficiency losses become significant — avoiding both unplanned downtime and the energy waste associated with degraded equipment operating under increased load.

All units are sourced from verified inventory, subjected to full functional testing prior to shipment, and covered by a 12-Month Warranty. Fast dispatch from in-stock inventory ensures minimal lead time for replacement or expansion projects, reducing production downtime and the associated energy and productivity losses.

Energy Optimization FAQ

Q1: How does the 1756SC-IF8U contribute to measurable energy savings in motor-driven applications?
The 1756SC-IF8U provides high-resolution analog feedback from process sensors directly to the ControlLogix CPU, enabling precise closed-loop control of variable frequency drives such as the PowerFlex 755. By accurately reflecting actual process conditions — flow, pressure, temperature — the system eliminates motor over-speeding and reduces energy consumption by 20–40% in variable-torque applications compared to fixed-speed operation.

Q2: Is the 1756SC-IF8U compatible with existing ControlLogix and GuardLogix systems?
Yes. The 1756SC-IF8U is designed for direct installation in standard ControlLogix and GuardLogix chassis. It is compatible with the full range of 1756-series processors, including the 1756-L71, 1756-L73, and 1756-L85E, and communicates via the ControlLogix backplane without requiring additional gateways or adapters.

Q3: What is the recommended replacement or upgrade path for aging analog input modules in a ControlLogix system?
For systems currently using older 1756-IF8 or 1756-IF16 modules, the 1756SC-IF8U offers a direct form-factor replacement with enhanced universal input capability and improved signal conditioning. No chassis or wiring changes are required in most installations, making it a cost-effective upgrade that improves measurement accuracy and reduces the risk of control errors that lead to energy waste.

Q4: What does the 12-Month Warranty cover, and what is the testing process before shipment?
Every 1756SC-IF8U unit undergoes full functional testing — including channel-by-channel signal verification across all supported input types — before dispatch. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, replacement units are dispatched from in-stock inventory to minimize production downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty support.
