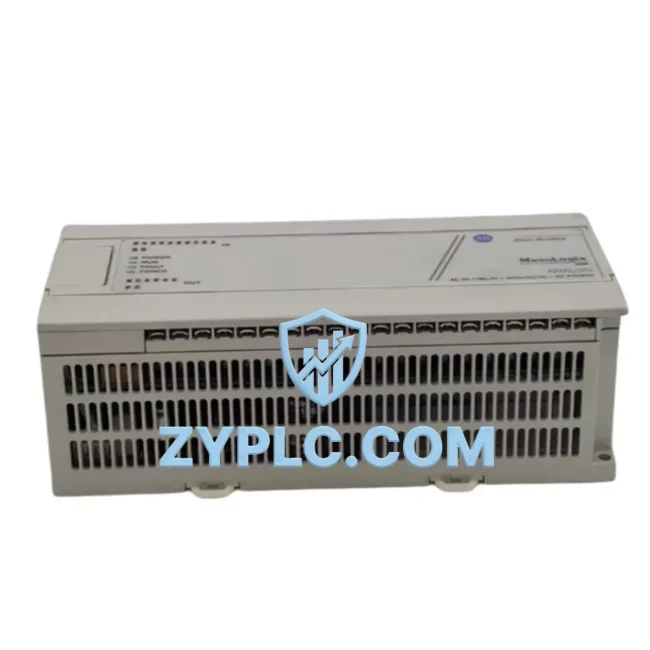

Allen-Bradley 1761-L20AWA-5A Energy-Saving PLC MicroLogix 1000

Allen-Bradley 1761-L20AWA-5A Energy-Saving PLC MicroLogix 1000: Precision Efficiency Control for Industrial Automation

The Allen-Bradley 1761-L20AWA-5A is a compact, high-reliability Programmable Logic Controller from Rockwell Automation’s MicroLogix 1000 series, engineered to deliver precise, energy-aware control across a wide range of industrial automation environments. Designed for applications where minimizing energy waste is as critical as maintaining production throughput, this PLC module integrates seamlessly into modern and legacy control architectures, enabling factories to reduce idle-state power consumption, optimize motor drive cycles, and improve overall equipment effectiveness (OEE) without costly infrastructure overhauls.

With 20 I/O points (12 discrete inputs, 8 relay outputs), AC power supply, and native support for Rockwell’s DF1 and DH-485 communication protocols, the 1761-L20AWA-5A provides the control backbone for energy-conscious production lines in manufacturing, material handling, HVAC automation, and process control sectors. Every unit shipped by ZYPLC undergoes full functional testing and is backed by a 12-month warranty.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully optimized industrial control system, the 1761-L20AWA-5A serves as the central decision-making node, coordinating energy flows across multiple subsystems. When paired with a PowerFlex 4M AC drive (22F-D2P5N103), the PLC can implement variable-speed motor control strategies that dramatically reduce energy consumption during partial-load conditions — a common source of waste in conveyor and pump applications. Rather than running motors at fixed speed, the MicroLogix 1000 issues analog or discrete commands to the drive, enabling demand-responsive acceleration and deceleration profiles.

For energy monitoring at the field level, the 1761-L20AWA-5A integrates with Allen-Bradley 1761-NET-AIC Advanced Interface Converters to extend DH-485 networks across larger plant floors, allowing energy data from distributed I/O nodes to be aggregated at a central PanelView 600 HMI terminal. Operators gain real-time visibility into per-zone power consumption, enabling informed decisions about load scheduling and shift-based energy management.

On the I/O expansion side, the 1762-IQ8 and 1762-OW8 MicroLogix expansion modules extend the base controller’s discrete I/O capacity, supporting additional sensor inputs from current transducers, power factor meters, and temperature probes — all critical data points for an energy-aware control loop. When combined with a 1761-NET-ENI Ethernet Interface module, the system gains EtherNet/IP connectivity, enabling integration with plant-level SCADA platforms and energy management information systems (EMIS).

For servo-driven axes requiring precise positioning with minimal energy overshoot, the 1761-L20AWA-5A can coordinate with Kinetix 300 servo drives via a gateway controller, ensuring that motion profiles are executed with energy-optimal acceleration curves. Similarly, integration with Allen-Bradley 1734 POINT I/O modules over DeviceNet or EtherNet/IP allows granular, zone-level control of actuators and solenoids, eliminating unnecessary energization of idle devices.

Power quality at the panel level is further supported by pairing the system with a PowerMonitor 500 unit, which provides harmonic analysis, power factor correction data, and demand interval tracking — feeding actionable energy intelligence back into the MicroLogix 1000’s control logic for closed-loop efficiency management.

Power Optimization in Real Production Lines

In discrete manufacturing environments, energy waste most commonly occurs during machine idle states, uncoordinated motor starts, and inefficient sequencing of production equipment. The Allen-Bradley 1761-L20AWA-5A addresses each of these vectors through its flexible ladder logic programming environment and robust I/O architecture.

Reducing Idle-State Energy Draw: By programming time-based or event-triggered shutdown routines in RSLogix 500, plant engineers can configure the 1761-L20AWA-5A to de-energize non-critical loads — conveyor sections, lighting circuits, pneumatic solenoids — during scheduled breaks or low-demand periods. This alone can reduce standby power consumption by 15–30% in typical light manufacturing cells.

Optimizing Motor Start Sequences: Uncoordinated motor starts create inrush current spikes that inflate peak demand charges on utility bills. The MicroLogix 1000’s precise timing control allows engineers to implement staggered start sequences across multiple motor circuits, smoothing the current profile and reducing peak demand — a direct cost saving that compounds over time.

Improving Production Line Throughput: By tightly synchronizing upstream and downstream conveyor segments, the 1761-L20AWA-5A eliminates buffer accumulation and starvation events that force equipment to run unnecessarily. Tighter line synchronization translates to fewer motor run-hours per unit produced — a measurable improvement in energy intensity (kWh per unit output).

Predictive Maintenance Integration: When connected to vibration or temperature sensors via its discrete inputs, the MicroLogix 1000 can trigger maintenance alerts before equipment failures occur. Preventing unplanned downtime not only protects production schedules but also avoids the energy-intensive restart cycles associated with cold equipment startups after emergency shutdowns.

Inventory Availability & Shipping: ZYPLC maintains ready stock of the 1761-L20AWA-5A to support urgent MRO (Maintenance, Repair & Operations) requirements. All units are sourced from verified supply channels, undergo pre-shipment functional testing, and are dispatched within 1–3 business days. A 12-month warranty covers all units against manufacturing defects and operational failures under normal use conditions.

Energy Optimization FAQ

Q1: How does the 1761-L20AWA-5A contribute to measurable energy savings on a production line?
The 1761-L20AWA-5A enables energy savings through programmable load control, demand-based motor sequencing, and idle-state shutdown routines. When integrated with variable frequency drives such as the PowerFlex 4M, the system can reduce motor energy consumption by 20–40% compared to fixed-speed operation, depending on the application duty cycle.

Q2: Is the 1761-L20AWA-5A compatible with modern Rockwell Automation systems and communication networks?
Yes. The 1761-L20AWA-5A natively supports DF1 and DH-485 protocols and can be extended to EtherNet/IP networks via the 1761-NET-ENI interface module. It is fully programmable with RSLogix 500 and can coexist within larger control architectures managed by ControlLogix or CompactLogix platforms through gateway configurations.

Q3: What is the recommended replacement or upgrade path if the 1761-L20AWA-5A is being phased out of a legacy system?
For applications requiring expanded I/O, higher processing speed, or native EtherNet/IP support, the MicroLogix 1100 (1763-L16AWA) or MicroLogix 1400 (1766-L32AWA) series offer direct functional upgrades while maintaining compatibility with existing RSLogix 500 program logic. ZYPLC can advise on migration strategies to minimize reprogramming effort.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1761-L20AWA-5A unit shipped by ZYPLC undergoes a pre-shipment functional test that verifies I/O operation, communication port integrity, and power supply performance. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support to minimize production downtime.
