Allen-Bradley 1769-ECR Energy-Saving End Cap | CompactLogix

Allen-Bradley 1769-ECR Energy-Saving End Cap | CompactLogix

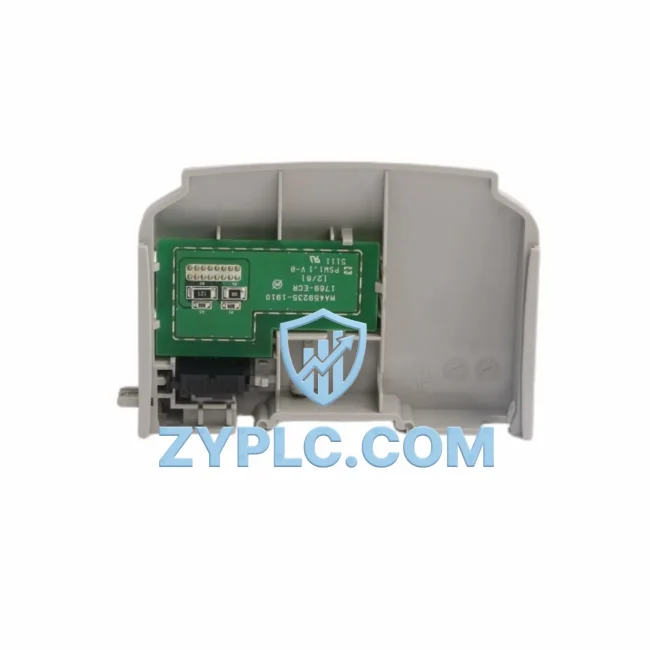

The Allen-Bradley 1769-ECR is a right-side end cap terminator designed for the CompactLogix 1769 I/O system. Far from a passive accessory, this component plays a critical role in maintaining the electrical integrity of the I/O bus — directly influencing system power distribution efficiency, signal stability, and overall energy consumption across the control architecture. In modern industrial environments where every watt counts, proper bus termination with the 1769-ECR prevents signal reflection, reduces electromagnetic interference, and ensures that connected I/O modules operate within their rated power envelopes without unnecessary energy dissipation.

When integrated into a well-designed CompactLogix system, the 1769-ECR supports tighter control loop performance, enabling the 1769-L33ER or 1769-L36ERM processor to execute scan cycles with minimal latency. This directly translates to improved production line throughput and reduced idle-state energy draw — two of the most impactful levers in factory energy optimization.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1769-ECR does not operate in isolation — its value is realized within a broader energy-aware control architecture. In a typical CompactLogix deployment, the 1769-ECR terminates an I/O bank that may include digital input modules such as the 1769-IQ16 or 1769-IQ32, analog input modules like the 1769-IF4 for real-time process variable acquisition, and output modules such as the 1769-OB16 for driving actuators and relay coils. Proper termination ensures that these modules share the backplane bus power cleanly, without voltage fluctuation that could trigger false reads or unnecessary re-execution of control logic.

On the drive side, the CompactLogix processor communicates with variable frequency drives such as the PowerFlex 525 or PowerFlex 755 via EtherNet/IP, enabling closed-loop motor speed control that dramatically reduces energy waste during partial-load operation. The 1769-ECR’s role in maintaining a stable I/O bus ensures that the feedback signals from current transducers and encoder inputs — often routed through 1769-IF8 analog modules — are read accurately, allowing the drive to make precise torque and speed adjustments without hunting or overcorrection.

For energy monitoring at the panel level, the system may incorporate a PowerMonitor 5000 or 1420 PowerMonitor connected via DeviceNet or EtherNet/IP, feeding real-time kWh, power factor, and demand data back to the controller. The integrity of this data chain depends on a clean, well-terminated I/O bus — exactly what the 1769-ECR provides. HMI visualization through a PanelView Plus 7 terminal allows operators to monitor energy KPIs in real time, while the Studio 5000 Logix Designer environment enables engineers to implement energy-saving logic routines such as load shedding, motor coast-to-stop sequences, and scheduled equipment hibernation.

Communication reliability is further supported by 1769-L33ER dual-port EtherNet/IP controllers, which reduce network scan overhead and allow faster I/O updates — a key factor in minimizing the energy cost of control system overhead in high-cycle-rate applications.

Power Optimization in Real Production Lines

In discrete manufacturing environments — automotive assembly, food and beverage packaging, electronics production — the CompactLogix 1769 system with proper end-cap termination delivers measurable energy and operational benefits. A poorly terminated I/O bus can introduce backplane noise that causes analog modules to report erratic values, forcing the PLC to execute additional diagnostic routines and increasing CPU scan time. Over thousands of scan cycles per hour, this translates into measurable increases in processor load and, consequently, panel cooling demand.

By installing the 1769-ECR correctly, plant engineers eliminate this source of inefficiency. The result is a more deterministic scan cycle, lower average CPU utilization, and reduced heat generation inside the control panel — all of which contribute to lower energy consumption and extended component lifespan. In multi-axis servo applications where a Kinetix 5500 or Kinetix 6500 servo drive is coordinated through the CompactLogix controller, stable I/O communication is essential for maintaining synchronization between axes. Any bus instability that causes a missed I/O update can result in a servo fault, triggering an unplanned stop and a full restart sequence — one of the most energy-intensive events in a production cycle.

Predictive maintenance strategies also benefit from a stable I/O architecture. When vibration sensors, temperature probes, and current monitoring inputs are reliably read through a properly terminated 1769 I/O bank, condition monitoring algorithms can detect early signs of motor bearing wear, drive overheating, or conveyor belt misalignment — allowing maintenance teams to intervene during scheduled downtime rather than responding to catastrophic failures. This shift from reactive to predictive maintenance reduces both energy waste from degraded equipment and the cost of emergency repair logistics.

Every unit of 1769-ECR shipped from ZYPLC undergoes functional verification and outgoing quality inspection before dispatch. Stock is maintained for immediate availability, and all units are covered by a 12-month warranty from the date of purchase, ensuring your production line stays protected and your energy optimization investment is secured.

Energy Optimization FAQ

Q1: How does the 1769-ECR contribute to energy efficiency in a CompactLogix system?
The 1769-ECR terminates the 1769 I/O backplane bus, preventing signal reflection and electromagnetic interference. This keeps the PLC scan cycle deterministic and reduces unnecessary CPU processing overhead, which lowers panel heat generation and decreases the load on cooling systems — resulting in measurable energy savings over continuous operation.

Q2: Is the 1769-ECR compatible with all CompactLogix 1769 controllers and I/O modules?
Yes. The 1769-ECR is designed for use with all 1769 CompactLogix I/O expansion banks, including those paired with 1769-L1x, L2x, L3x, and L4x series controllers. It is required at the right end of every 1769 I/O bank to complete the bus circuit. Always verify the number of I/O banks in your system to ensure you have the correct quantity of end caps.

Q3: Can the 1769-ECR replace an existing end cap that has been damaged or lost?
Absolutely. The 1769-ECR is a direct replacement for any damaged or missing right-side end cap in a 1769 I/O system. Operating without a proper end cap risks bus instability, potential I/O module faults, and increased electromagnetic emissions. ZYPLC maintains in-stock inventory for rapid dispatch, minimizing downtime during replacement.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 1769-ECR units supplied by ZYPLC are inspected and functionally verified prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded. For critical production environments, we recommend maintaining at least one spare 1769-ECR per I/O bank as part of your standard spare parts inventory strategy.
