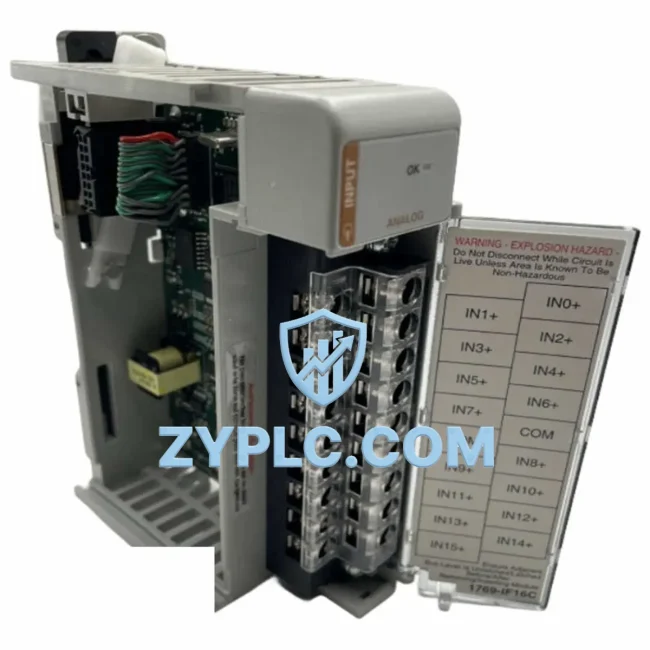

Allen-Bradley 1769-IF16C Energy-Saving Analog Input Module: Precision Energy Control and Production Line Optimization
The Allen-Bradley 1769-IF16C is a 16-channel analog current input module engineered for the CompactLogix 1769 series platform. Designed to deliver high-resolution signal acquisition across demanding industrial environments, the 1769-IF16C plays a central role in energy-aware automation architectures — enabling plant engineers to capture real-time process data, reduce unnecessary energy consumption, and optimize motor-driven production cycles with measurable precision.
In modern manufacturing, energy waste is rarely the result of a single failure — it accumulates through inefficient signal sampling, delayed feedback loops, and uncoordinated drive control. The 1769-IF16C addresses this at the source by providing 16 independent 4–20 mA current input channels with 16-bit resolution, allowing the CompactLogix controller to receive accurate, low-latency process signals from field instruments including flow transmitters, pressure sensors, temperature transducers, and power transducers. When every channel is actively monitored, the controller can make faster, more informed decisions — reducing idle motor run time, preventing over-drive conditions, and maintaining optimal process setpoints without manual intervention.
Efficiency Performance Table
| Parameter |
Specification |
| SKU / Part Number |
1769-IF16C |
| Brand / Series |
Allen-Bradley / CompactLogix 1769 |
| Input Channels |
16 x Analog Current (4–20 mA) |
| Resolution |
16-bit |
| Power Consumption |
≤ 4.5 W (backplane); optimized for low-draw operation |
| Operating Efficiency |
High-speed simultaneous sampling; minimizes controller polling overhead |
| Compatible Systems |
CompactLogix L1x, L2x, L3x, L4x, L43, L45 controllers; Studio 5000 Logix Designer |
| Application Environment |
Industrial automation, energy monitoring, motor control, process manufacturing |
| Energy Optimization Value |
Enables real-time load profiling, reduces over-sampling waste, supports predictive maintenance triggers |
| Origin |
USA |
| Warranty |
12-Month Warranty — tested and verified before shipment |
Energy-Aware Automation Architecture
The 1769-IF16C is most effective when integrated into a complete energy-aware control architecture. In a typical CompactLogix-based system, the module sits on the 1769 backplane alongside digital I/O modules such as the 1769-IQ16 and output modules like the 1769-OB16, forming a tightly coupled I/O subsystem that feeds real-time data to the 1769-L33ER or 1769-L36ERM CompactLogix controller. The controller processes analog signals from the 1769-IF16C and issues corrective commands to downstream drive systems — including PowerFlex 525 and PowerFlex 755 variable frequency drives — adjusting motor speed in response to actual load demand rather than fixed setpoints.
For energy monitoring at the panel level, the 1769-IF16C channels can be wired to current transformers and power transducers, feeding consumption data directly into the controller’s tag database. This data can then be surfaced on a PanelView Plus 7 HMI terminal, giving operators a live view of per-zone energy draw without requiring a separate energy management system. When paired with the 1769-SDN DeviceNet scanner or an 1769-L19ER compact controller with EtherNet/IP, the module’s data can be published to a plant-wide SCADA or MES platform for cross-line energy benchmarking.
In servo-driven applications, the 1769-IF16C complements the Kinetix 5500 servo drive system by providing analog feedback from torque sensors and load cells, enabling the CompactLogix controller to fine-tune servo motion profiles based on real mechanical load — reducing regenerative energy waste and extending servo amplifier service life. For communication-intensive lines, the module integrates seamlessly with 1769-L30ER controllers running EtherNet/IP, enabling remote diagnostics and energy data logging without additional hardware.
Power Optimization in Real Production Lines
On a typical discrete manufacturing line, unmonitored analog signals are one of the most common sources of hidden energy waste. Motors run at full speed regardless of actual demand, pumps cycle unnecessarily, and compressed air systems over-pressurize — all because the controller lacks accurate, real-time feedback. The 1769-IF16C eliminates this blind spot by providing 16 simultaneous high-resolution input channels that the CompactLogix controller can scan at sub-millisecond intervals.
In a bottling or packaging application, for example, the 1769-IF16C can monitor fill-level sensors, conveyor tension transducers, and motor current feedback signals simultaneously. When the controller detects that a downstream buffer is full, it can immediately signal the PowerFlex 525 drive to ramp down the infeed conveyor motor — reducing energy consumption during low-demand periods without stopping the line. This kind of demand-responsive control, enabled by accurate analog input data, can reduce motor energy consumption by 15–30% in variable-load applications.
For predictive maintenance, the 1769-IF16C’s high-resolution current inputs can track subtle changes in motor current signatures over time. A gradual increase in no-load current on a pump motor, for instance, is an early indicator of bearing wear or impeller fouling. By logging this data through Studio 5000 Logix Designer and trending it on the PanelView Plus 7 HMI, maintenance teams can schedule interventions during planned downtime rather than responding to unplanned failures — reducing both energy waste from degraded equipment and the cost of emergency repairs.
Every unit of the 1769-IF16C supplied by ZYPLC undergoes full functional testing prior to shipment, including channel-by-channel signal verification and backplane communication checks. Stock is maintained in our warehouse for immediate dispatch, and all modules are covered by a 12-month warranty from the date of delivery.
Energy Optimization FAQ
Q1: How does the 1769-IF16C contribute to energy savings in a CompactLogix system?
The 1769-IF16C provides 16 high-resolution analog current inputs that give the CompactLogix controller accurate, real-time visibility into process variables such as motor load, flow rate, and pressure. This enables demand-responsive control strategies — such as variable-speed drive adjustment via PowerFlex 525 or PowerFlex 755 — that reduce energy consumption during low-demand periods without sacrificing throughput.
Q2: Is the 1769-IF16C compatible with my existing CompactLogix system?
Yes. The 1769-IF16C is compatible with all standard 1769 CompactLogix backplane configurations, including systems running L1x, L2x, L3x, L4x, L43, and L45 controllers. It is configured and monitored through Studio 5000 Logix Designer and supports EtherNet/IP communication when used with compatible controllers such as the 1769-L33ER or 1769-L36ERM.
Q3: Can the 1769-IF16C replace an older analog input module in my existing panel?
In most cases, yes. The 1769-IF16C is a direct form-fit replacement for earlier 1769-series analog input modules. Before replacement, verify the channel count, input signal type (current vs. voltage), and controller firmware version in Studio 5000. ZYPLC’s technical team can assist with compatibility verification prior to purchase.
Q4: What does the 12-month warranty cover, and how is the module tested before shipment?
Every 1769-IF16C shipped by ZYPLC is tested for full functional operation, including all 16 analog input channels, backplane communication integrity, and signal accuracy. The 12-month warranty covers defects in materials and workmanship from the date of delivery. Modules that fail during the warranty period are replaced or repaired at no additional cost. Contact our team at plc.sales@zyplc.com for warranty claims or pre-purchase technical support.
