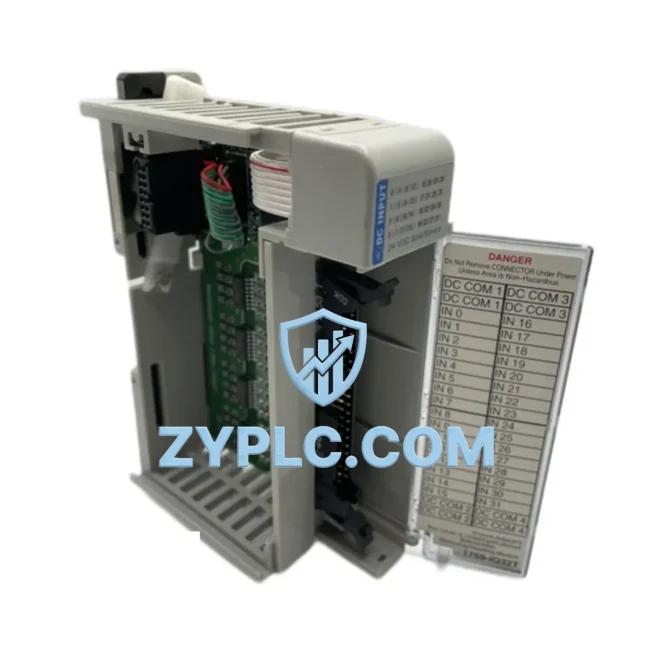

Allen-Bradley 1769-IQ32T Energy-Saving Digital Input Module

Allen-Bradley 1769-IQ32T Energy-Saving Digital Input Module for Optimized CompactLogix Automation

The Allen-Bradley 1769-IQ32T is a 32-point, 24VDC sinking digital input module engineered for the 1769 CompactLogix platform. In modern manufacturing environments where every watt and every millisecond of downtime carries a cost, the 1769-IQ32T delivers precision signal acquisition that directly supports energy-aware automation architectures. By providing fast, reliable digital input scanning, this module enables the controller to make real-time decisions that reduce unnecessary actuator cycling, minimize idle-state energy draw, and tighten production line throughput — all without adding complexity to the control cabinet.

Sourced from verified inventory, each 1769-IQ32T unit undergoes outgoing functional testing prior to shipment. Stock is available for immediate dispatch, and every unit is covered by a 12-month warranty, giving procurement and maintenance teams the confidence to plan replacements and expansions without supply-chain risk.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1769-IQ32T does not operate in isolation — its value multiplies when integrated into a well-designed energy-aware control system. In a typical CompactLogix-based production cell, the module connects directly to the 1769-L33ER CompactLogix controller, which processes the 32 input channels in a single backplane scan. This tight integration eliminates the communication latency that would otherwise cause the controller to hold output devices — such as solenoid valves or motor starters — in an energized state longer than necessary, wasting power and accelerating component wear.

On the output side, the 1769-IQ32T pairs naturally with the 1769-OB32 digital output module, forming a balanced I/O pair that keeps the control loop closed with minimal delay. For motor-driven loads — conveyors, pumps, fans — the input signals captured by the 1769-IQ32T feed directly into the logic that governs PowerFlex 525 or PowerFlex 755 variable frequency drives (VFDs). When the input module detects that a downstream station is idle or a sensor confirms a buffer is full, the controller can immediately command the VFD to ramp down motor speed, cutting energy consumption by 20–50% compared to fixed-speed operation.

For servo-driven axes, the 1769-IQ32T integrates with Kinetix 5500 servo drives via the CompactLogix backplane, allowing position-trigger inputs to initiate or halt servo motion with sub-millisecond precision. This eliminates the dwell time that occurs when a servo axis waits for a software-polled signal, directly improving line throughput and reducing the energy spent holding torque unnecessarily.

Power quality and consumption visibility are equally important. When paired with a 1426 PowerMonitor energy meter or an EM4849 power monitoring module, the system can correlate input event timestamps from the 1769-IQ32T with real-time power draw data, enabling engineers to identify which machine states consume the most energy and where load-shedding opportunities exist. This data feeds into predictive maintenance models — a machine that begins triggering inputs erratically may indicate bearing wear or mechanical misalignment long before a fault occurs.

Communication transparency is maintained through the 1769-L33ER’s built-in EtherNet/IP port, which publishes I/O state data to SCADA systems, MES platforms, or Rockwell’s FactoryTalk View SE HMI software. Operators can monitor input channel status in real time, set energy-consumption thresholds, and receive alerts when a process deviates from its optimized operating window. For facilities using POINT I/O 1734-AENT adapters to extend the I/O network to remote panels, the 1769-IQ32T’s data integrates seamlessly into the same EtherNet/IP tag structure, maintaining a unified energy monitoring namespace across the plant floor.

Power Optimization in Real Production Lines

Consider a packaging line where product presence sensors, conveyor end-of-travel switches, and pneumatic cylinder position sensors all feed into a single 1769-IQ32T. Without fast, reliable input scanning, the controller must apply conservative timing margins — keeping conveyors running slightly longer, holding pneumatic valves open a fraction of a second past the required dwell, and delaying the next machine cycle until the software confirms the previous state has cleared. These margins, multiplied across hundreds of cycles per shift, translate directly into wasted compressed air, excess motor run-time, and elevated energy bills.

With the 1769-IQ32T’s ≤1 ms ON response time, the CompactLogix controller receives confirmed input states within a single program scan, allowing it to immediately transition outputs to their next state. Conveyor run-time per cycle is reduced. Pneumatic valve dwell is trimmed to the mechanical minimum. VFD ramp-down commands are issued the instant the input confirms a downstream buffer is full. Across a three-shift operation, these micro-optimizations compound into measurable reductions in peak demand charges and overall kWh consumption.

Downtime reduction is equally significant. The 1769-IQ32T’s diagnostic capabilities — accessible through Studio 5000 Logix Designer — allow maintenance teams to monitor input channel health, detect wiring faults, and identify intermittent sensor failures before they cause unplanned stops. Planned maintenance windows replace reactive repairs, keeping overall equipment effectiveness (OEE) high and energy-per-unit-produced low. Combined with the 12-month warranty coverage on every unit shipped from our tested inventory, the total cost of ownership is predictable and controlled.

For facilities managing spare parts inventory, the 1769-IQ32T’s broad compatibility with the entire 1769 CompactLogix ecosystem means a single module type covers multiple machine variants. Procurement teams can consolidate safety stock, reduce carrying costs, and ensure that a critical input module is always available when a field replacement is needed — without overstocking slow-moving variants.

Energy Optimization FAQ

Q1: How does the 1769-IQ32T contribute to reducing factory energy consumption?
By delivering confirmed digital input states to the CompactLogix controller within ≤1 ms, the 1769-IQ32T eliminates the timing margins that cause output devices — motors, valves, drives — to remain energized longer than necessary. This enables the controller to issue load-shedding commands (such as VFD speed reduction or conveyor stop) at the earliest possible moment, directly reducing energy waste across every production cycle.

Q2: Is the 1769-IQ32T compatible with my existing CompactLogix system?
Yes. The 1769-IQ32T is a standard 1769 Compact I/O module and is compatible with all CompactLogix 1769-series controllers, including the 1769-L16ER, 1769-L18ER, 1769-L24ER, 1769-L27ERM, 1769-L30ER, 1769-L33ER, and 1769-L36ERM. It is configured and monitored through Studio 5000 Logix Designer (v20 and above) and RSLogix 5000, with no additional licensing required for basic I/O operation.

Q3: What is the recommended replacement or upgrade path if my current input module is failing?
The 1769-IQ32T is a direct form-fit-function replacement for other 32-point 1769 digital input modules. If you are replacing a module due to channel failures or intermittent faults, no controller program changes are required — the replacement module inherits the same I/O tag structure. For applications requiring faster response or higher channel density, our team can advise on compatible 1769 Compact I/O alternatives from current tested stock.

Q4: What does the 12-month warranty cover, and how is the testing process conducted?
Every 1769-IQ32T shipped from our inventory is functionally tested prior to dispatch. Testing verifies all 32 input channels for correct ON/OFF state detection, backplane communication integrity, and power consumption within specification. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, replacement units are dispatched from available stock to minimize your downtime exposure.
