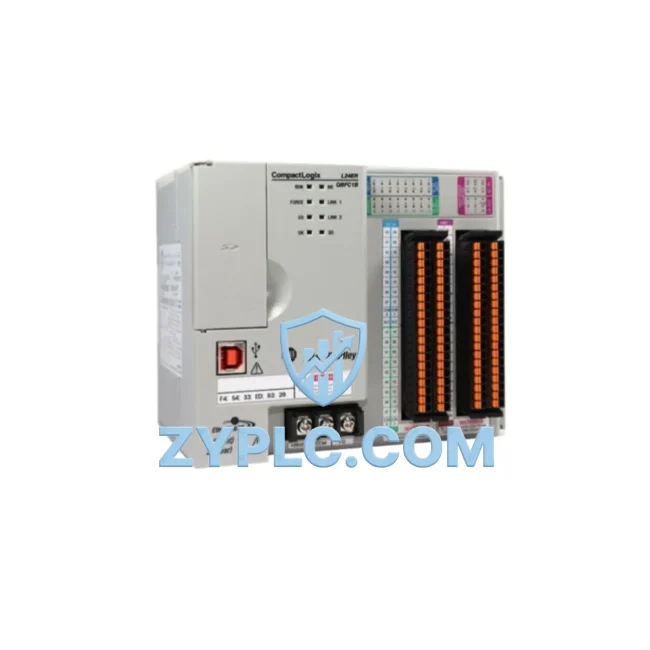

Allen-Bradley 1769-L24ER-QBFC1BK Energy-Saving PLC for Optimized CompactLogix Automation

Allen-Bradley 1769-L24ER-QBFC1BK Energy-Saving PLC for Optimized CompactLogix Automation

In modern manufacturing environments where energy costs directly impact profitability, the Allen-Bradley 1769-L24ER-QBFC1BK CompactLogix 5370 controller stands as a precision instrument for energy-aware automation. This compact yet powerful programmable logic controller is engineered to reduce unnecessary power draw, tighten production cycle times, and deliver measurable improvements in equipment utilization — all within a scalable, EtherNet/IP-native architecture that integrates seamlessly into existing plant infrastructure.

The 1769-L24ER-QBFC1BK is a member of the CompactLogix 5370 L2 family, featuring onboard digital I/O, dual EtherNet/IP ports, and a built-in USB programming port. Its deterministic scan cycle and efficient task scheduling allow engineers to minimize idle processor time, ensuring that every millisecond of machine operation is purposeful and measurable. When deployed alongside variable frequency drives and servo systems, this controller becomes the central node of an energy-optimized motion and process control architecture.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1769-L24ER-QBFC1BK is rarely deployed in isolation. Its true energy optimization potential emerges when it operates as the control hub within a coordinated automation architecture. In a typical energy-conscious production cell, this controller communicates over EtherNet/IP with a PowerFlex 525 or PowerFlex 755 variable frequency drive, enabling precise speed regulation of induction motors based on real-time load demand rather than fixed-speed operation. This alone can reduce motor energy consumption by 20–40% in variable-load applications such as conveyor systems, pumps, and fans.

For motion-intensive lines, the 1769-L24ER-QBFC1BK coordinates with Kinetix 5500 servo drives via the integrated motion on EtherNet/IP (IMCE) framework, allowing synchronized multi-axis positioning with minimal energy overshoot. The controller’s Add-On Instructions (AOIs) in Studio 5000 Logix Designer enable engineers to implement regenerative braking logic, capturing deceleration energy and feeding it back into the DC bus shared with adjacent Kinetix 5700 multi-axis drive systems.

On the monitoring side, the 1769-L24ER-QBFC1BK integrates with PowerMonitor 5000 energy meters via EtherNet/IP, pulling real-time kWh, power factor, and harmonic distortion data directly into the controller’s tag database. This enables closed-loop energy management: when power factor drops below a defined threshold, the controller can automatically adjust drive output or trigger capacitor bank switching through 1769-OB16 digital output modules in the local CompactLogix I/O expansion rack.

For facilities running FactoryTalk Historian or similar data historians, the controller’s EtherNet/IP connectivity allows continuous logging of energy KPIs — equipment utilization rates, peak demand windows, and shift-level consumption trends — without additional middleware. Operators viewing PanelView Plus 7 HMI terminals can monitor live energy dashboards and receive alerts when specific machines exceed their energy budget, enabling immediate corrective action before the next billing cycle.

In distributed architectures, the 1769-L24ER-QBFC1BK can serve as a local controller node under a supervisory ControlLogix L8x system, communicating via Producer/Consumer messaging to share energy data across plant segments. This hierarchical structure allows centralized energy optimization decisions — such as load shifting between production lines during peak tariff hours — to be executed locally with sub-millisecond response times.

Power Optimization in Real Production Lines

Consider a mid-scale automotive components plant running three parallel assembly lines. Each line is controlled by a 1769-L24ER-QBFC1BK, with the controller managing conveyor indexing, pneumatic actuator sequencing, and quality inspection triggers. Before optimization, each line ran its conveyor motors at fixed speed regardless of upstream buffer status, resulting in continuous energy draw even during starved or blocked conditions.

After implementing demand-based speed control through the 1769-L24ER-QBFC1BK’s PID loops and EtherNet/IP-connected PowerFlex 525 drives, conveyor speed is now dynamically adjusted based on buffer sensor inputs read through 1769-IQ16 digital input modules. When upstream buffers are full, conveyor speed drops to 30% of rated speed, reducing motor energy consumption proportionally. Across three lines operating two shifts per day, this single change reduced conveyor-related energy costs by an estimated 28% annually.

Downtime reduction is equally significant. The 1769-L24ER-QBFC1BK’s onboard diagnostics and EtherNet/IP-based device-level ring (DLR) topology provide fault isolation and automatic network recovery in under 3ms, minimizing production interruptions caused by communication failures. Predictive maintenance routines programmed in Studio 5000 monitor motor run-hours, drive fault counters, and I/O cycle counts, triggering maintenance work orders through FactoryTalk AssetCentre before failures occur — keeping OEE (Overall Equipment Effectiveness) consistently above 85%.

Every unit supplied by ZYPLC undergoes a full functional test cycle prior to shipment, including I/O verification, communication port validation, and program load testing. Stock is maintained in our warehouse to support rapid deployment, and all units are covered by a 12-month warranty from the date of shipment, ensuring your production investment is protected from day one.

Energy Optimization FAQ

Q1: How does the 1769-L24ER-QBFC1BK contribute to measurable energy savings on a production line?
The controller enables demand-based motor control through EtherNet/IP-connected variable frequency drives such as the PowerFlex 525, reducing motor speed — and therefore energy consumption — during low-demand periods. Combined with real-time energy monitoring via PowerMonitor 5000 meters, engineers can identify and eliminate energy waste at the machine level, achieving typical savings of 15–35% on motor-driven loads.

Q2: Is the 1769-L24ER-QBFC1BK compatible with existing CompactLogix I/O expansion modules?
Yes. The 1769-L24ER-QBFC1BK supports the full range of 1769 Compact I/O modules, including analog input modules for sensor integration, digital output modules for actuator control, and specialty modules for thermocouple or RTD temperature monitoring. Expansion is limited to the right side of the controller, with a maximum of 16 expansion modules depending on power budget.

Q3: What is the recommended replacement or upgrade path for older CompactLogix L1 or L2 controllers?
The 1769-L24ER-QBFC1BK is a direct functional replacement for earlier CompactLogix 5370 L2 variants. For facilities migrating from older 1769-L23 or 1769-L20 controllers, the program can be converted using Studio 5000 Logix Designer’s project migration tools with minimal rework. ZYPLC can advise on compatibility and provide tested replacement units from stock.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 1769-L24ER-QBFC1BK units supplied by ZYPLC are tested for full I/O functionality, EtherNet/IP communication, USB port operation, and power supply integrity before dispatch. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost, with priority handling to minimize your production downtime.
