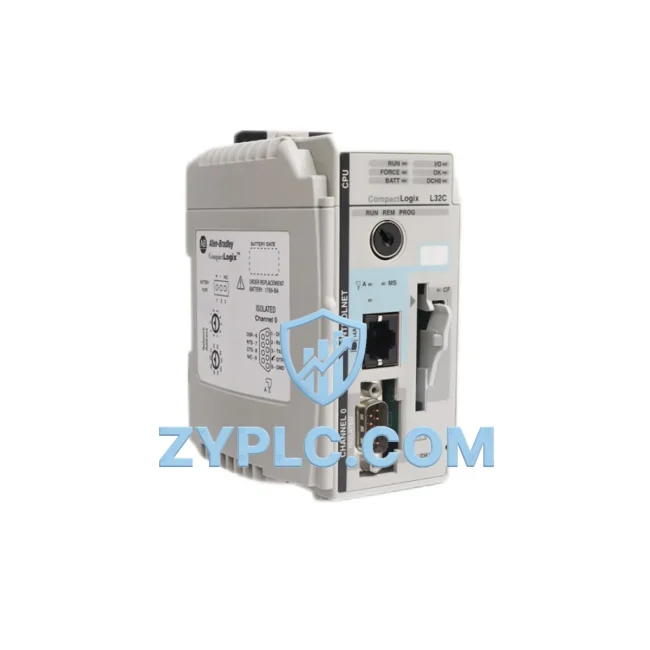

Allen-Bradley 1769-L32C Energy-Saving PLC for CompactLogix

Allen-Bradley 1769-L32C Energy-Saving PLC for Optimized CompactLogix Automation

The Allen-Bradley 1769-L32C is a high-performance CompactLogix programmable logic controller engineered to deliver precision motor control, real-time energy monitoring, and adaptive production line management in demanding industrial environments. Designed for manufacturers seeking to reduce operational energy costs without sacrificing throughput, the 1769-L32C integrates seamlessly into energy-aware automation architectures — from discrete manufacturing cells to continuous process lines.

Unlike conventional PLCs that prioritize throughput alone, the 1769-L32C is built with energy optimization at its core. Its deterministic scan cycle minimizes idle processing overhead, while its native EtherNet/IP communication backbone enables real-time data exchange with energy monitoring systems, variable frequency drives, and SCADA platforms. The result is a controller that not only executes machine logic but actively contributes to plant-wide energy efficiency strategies.

Every unit shipped by ZYPLC undergoes full functional testing, load simulation, and communication verification before dispatch. All 1769-L32C modules are covered by a 12-month warranty, with in-stock availability ensuring minimal lead times for urgent production requirements.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1769-L32C is most effective when deployed as the central decision-making node in an energy-conscious automation architecture. In a typical energy-optimized production cell, the controller interfaces directly with a PowerFlex 525 or PowerFlex 755 variable frequency drive via EtherNet/IP, enabling closed-loop speed regulation that eliminates fixed-speed motor waste — often the single largest source of avoidable energy consumption on a production floor.

On the I/O side, the 1769-L32C pairs with 1769-IQ16 digital input modules and 1769-OB16 digital output modules to handle high-density discrete signal processing with minimal backplane power draw. For analog energy signals — such as current transducer feedback or pressure transmitter data — the 1769-IF4 analog input module provides 4-channel, 16-bit resolution acquisition, feeding real-time energy consumption data directly into the controller’s logic engine.

Communication with plant-level energy management systems is handled through the controller’s native ControlNet port, while the EtherNet/IP interface connects to FactoryTalk EnergyMetrix or third-party power monitoring platforms. This dual-network capability allows the 1769-L32C to simultaneously manage machine-level control and report energy KPIs to supervisory systems without additional gateway hardware.

For human-machine interaction, the 1769-L32C integrates natively with PanelView Plus 7 HMI terminals running FactoryTalk View ME, providing operators with real-time energy dashboards, drive status visualization, and alarm management — all without additional communication configuration. In multi-axis motion applications, the controller coordinates with Kinetix 5500 servo drives over the integrated motion on EtherNet/IP (IMC) architecture, enabling synchronized, energy-efficient motion profiles that reduce peak current demand during acceleration phases.

Power supply integrity is maintained by the 1769-PA4 AC power supply module, which provides regulated 24 VDC to the CompactLogix backplane with built-in overcurrent protection. For installations requiring distributed I/O, the 1734 POINT I/O platform connects via EtherNet/IP adapter modules, extending the controller’s reach across large production areas without proportional increases in wiring or energy overhead.

Power Optimization in Real Production Lines

In real-world production environments, the 1769-L32C delivers measurable energy savings through three primary mechanisms: adaptive motor control, production line pacing optimization, and predictive maintenance enablement.

Adaptive Motor Control: By coordinating directly with PowerFlex VFDs, the 1769-L32C adjusts motor speed in real time based on actual load demand rather than running motors at fixed rated speed. In conveyor, pump, and fan applications, this alone can reduce motor energy consumption by 20–40% compared to across-the-line starting. The controller’s high-speed task execution — with scan times as low as 1 ms — ensures drive commands are issued with the precision needed to prevent energy-wasting speed oscillations.

Production Line Pacing Optimization: The 1769-L32C’s multi-tasking architecture allows simultaneous management of continuous, periodic, and event-driven tasks. This enables production line pacing logic that synchronizes upstream and downstream equipment, eliminating the energy waste associated with equipment running at full speed while waiting for upstream processes. Idle-state detection routines can automatically reduce conveyor speeds, dim lighting circuits, or park servo axes during planned micro-stops — all without operator intervention.

Predictive Maintenance and Downtime Reduction: Unplanned downtime is one of the most energy-intensive events in manufacturing — restarting cold equipment, running purge cycles, and re-establishing process conditions all consume disproportionate energy. The 1769-L32C supports condition monitoring logic that tracks drive fault histories, motor run-hour counters, and I/O signal degradation trends. When integrated with FactoryTalk AssetCentre, this data feeds predictive maintenance workflows that schedule interventions during planned downtime windows, keeping equipment in its most energy-efficient operating band.

ZYPLC maintains ready inventory of the 1769-L32C and associated CompactLogix components, enabling rapid deployment for both new installations and emergency replacements. All units are tested under load conditions simulating real production environments, with communication verification across EtherNet/IP and ControlNet interfaces prior to shipment.

Energy Optimization FAQ

Q1: How does the 1769-L32C contribute to measurable energy savings in motor-driven applications?
The 1769-L32C coordinates with PowerFlex variable frequency drives via EtherNet/IP to implement demand-based speed control. By matching motor output to actual process load rather than running at fixed rated speed, facilities typically achieve 20–40% reductions in motor energy consumption. The controller’s deterministic scan cycle ensures drive commands are executed with the precision needed to prevent energy-wasting speed hunting or overshoot.

Q2: Is the 1769-L32C compatible with existing CompactLogix I/O and power supply modules?
Yes. The 1769-L32C is fully compatible with the 1769 CompactLogix I/O family, including digital input/output modules (1769-IQ16, 1769-OB16), analog modules (1769-IF4, 1769-OF4), and power supply modules (1769-PA4, 1769-PB4). It is programmed using Studio 5000 Logix Designer (v20 and above) and supports RSLogix 5000 project migration for legacy system upgrades.

Q3: What is the recommended replacement or upgrade path for aging CompactLogix controllers?
For facilities running older 1769-L20 or 1769-L23 controllers, the 1769-L32C offers a direct upgrade path with expanded memory (750 KB vs. 512 KB), additional I/O capacity, and native EtherNet/IP support. Program migration is supported through Studio 5000 Logix Designer’s import/export tools, minimizing re-engineering effort. ZYPLC can advise on compatibility and provide pre-tested replacement units with verified firmware versions.

Q4: What testing and warranty coverage does ZYPLC provide for the 1769-L32C?
Every 1769-L32C unit supplied by ZYPLC undergoes a comprehensive pre-shipment test protocol including power-on verification, memory integrity check, I/O backplane communication test, EtherNet/IP and ControlNet port validation, and load simulation. All units are covered by a 12-month warranty from the date of shipment. In the event of a verified fault within the warranty period, ZYPLC provides priority replacement from in-stock inventory to minimize production disruption.
