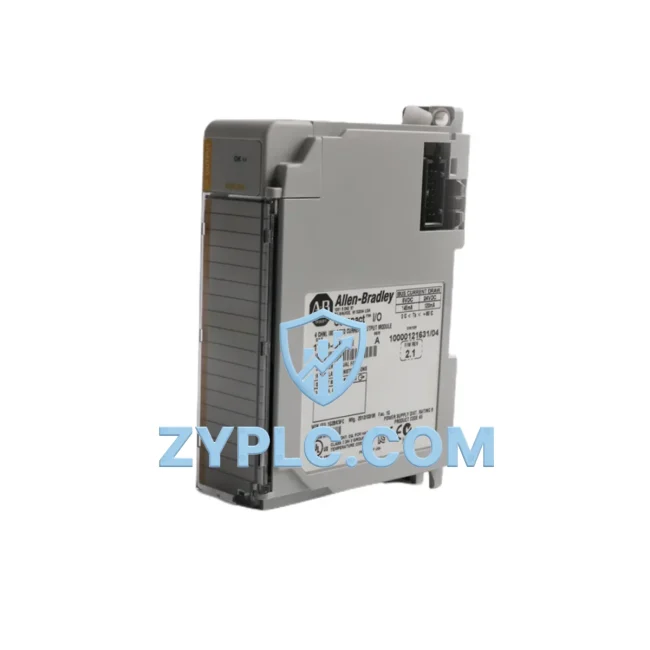

Allen-Bradley 1769-OF4CI System-Ready Analog Output for CompactLogix Architecture

Allen-Bradley 1769-OF4CI System-Ready Analog Output for CompactLogix Architecture

The Allen-Bradley 1769-OF4CI is a four-channel isolated analog current output module purpose-built for the CompactLogix control system architecture. Designed to operate seamlessly within the 1769 Compact I/O platform, this module delivers precision signal conditioning from the controller layer down to field-level actuators, control valves, variable frequency drives, and process instrumentation. Its isolated output design eliminates ground loop interference across multi-device installations, making it an essential component in layered automation systems where signal integrity and system consistency are non-negotiable.

In a complete CompactLogix architecture, the 1769-OF4CI sits at the I/O layer, receiving setpoint commands from the 1769-L30ER or 1769-L33ER CompactLogix processor via the local 1769 backplane. The processor executes the control logic, and the 1769-OF4CI translates digital register values into precise 4–20 mA or 0–20 mA current signals that drive downstream field devices. This tight integration between the CPU and the analog output module ensures deterministic response times and eliminates the latency that would otherwise arise from remote I/O architectures.

Architecture Specification Table

Coordinated Control System Design

The 1769-OF4CI achieves its full potential when deployed as part of a coordinated CompactLogix system. At the controller layer, a 1769-L33ER CompactLogix processor manages the control program, executing PID loops and setpoint calculations that feed directly into the output module’s channel registers. The processor communicates with upstream SCADA and MES systems via EtherNet/IP, using a 1783-US8T Stratix 2000 unmanaged switch or a 1783-BMS10CGL Stratix 5700 managed switch to maintain network segmentation and traffic prioritization across the plant floor.

On the power layer, a 1769-PA4 CompactLogix power supply provides stable 5 VDC backplane power to the 1769-OF4CI and adjacent I/O modules, while a dedicated 24 VDC field power rail — often sourced from an Allen-Bradley 1606-XLP72E power supply — energizes the current loop circuits. Stable, clean power at both the backplane and field levels is critical for maintaining the 16-bit output resolution that the 1769-OF4CI is capable of delivering.

For digital I/O coordination, the 1769-OF4CI is typically installed alongside a 1769-IQ16 digital input module and a 1769-OB16 digital output module on the same 1769 backplane, allowing the CompactLogix system to simultaneously manage discrete interlocks and analog process control within a single compact chassis. When the application requires analog input feedback — for closed-loop PID control — a 1769-IF4 analog input module is mounted adjacent to the 1769-OF4CI, enabling the processor to compare measured process values against the analog output setpoints in real time.

At the human-machine interface layer, a 2711P-T10C21D8S PanelView Plus 7 terminal provides operators with live visualization of the analog output channel values, loop status, and fault diagnostics. The HMI communicates with the CompactLogix processor over EtherNet/IP, displaying trend data and enabling manual setpoint overrides during commissioning or maintenance windows. For remote monitoring and diagnostics, the CompactLogix system connects to a Rockwell Automation FactoryTalk View SE SCADA platform, where engineers can review historical analog output trends, configure alarm thresholds, and perform remote parameter adjustments without interrupting production.

Application in Layered Automation Systems

The 1769-OF4CI is deployed across a wide range of process and discrete manufacturing environments where precise analog output control is required at the field device level.

In chemical and petrochemical processing, the module drives control valve positioners and flow control loops, where the 4–20 mA isolated output ensures that ground potential differences between the control panel and field junction boxes do not introduce signal errors. The channel-to-channel isolation is particularly valuable in multi-loop installations where each output drives a separate field device on an independent power circuit.

In water and wastewater treatment facilities, the 1769-OF4CI controls variable speed pump drives and chemical dosing systems. The module’s compatibility with the CompactLogix architecture allows plant engineers to implement cascade control strategies — where the output of one PID loop becomes the setpoint for another — entirely within the 1769-L33ER processor, with the 1769-OF4CI faithfully translating those calculated setpoints into field-level current signals.

In power generation and electrical distribution applications, the module is used to control AVR (automatic voltage regulator) reference inputs and turbine governor setpoints, where signal isolation is mandatory to prevent high-voltage transients from propagating back into the control system backplane.

In packaging and material handling lines, the 1769-OF4CI provides speed reference signals to PowerFlex 525 and PowerFlex 755 variable frequency drives, enabling smooth acceleration and deceleration profiles that reduce mechanical stress on conveyor systems and extend equipment service life. The module’s 16-bit resolution ensures that speed references are delivered with the precision required for tension control and registration applications.

In metallurgical and mining operations, the module is integrated into furnace temperature control systems and ore processing lines, where it drives current-to-pneumatic (I/P) transducers that control damper positions and material feed rates. The robust operating temperature range and isolated output design make the 1769-OF4CI suitable for the electrically noisy environments typical of heavy industry.

Architecture Engineering FAQ

Q1: How many 1769-OF4CI modules can be installed in a single CompactLogix system, and are there backplane current limitations to consider?
A: The number of 1769-OF4CI modules in a CompactLogix system is governed by the backplane current budget of the installed power supply. Each 1769-OF4CI draws 120 mA from the 5 VDC backplane rail. A 1769-PA4 power supply provides up to 4 A at 5 VDC, theoretically supporting up to 33 modules — though in practice, the mix of digital and analog I/O modules, the processor’s own consumption, and the 8-module-per-bank expansion limit will determine the actual configuration. Always perform a power budget calculation using Rockwell’s Studio 5000 I/O configuration tool before finalizing the system design.

Q2: Is the 1769-OF4CI compatible with both current and voltage output field devices, and can output ranges be configured per channel?
A: The 1769-OF4CI is a dedicated current output module, supporting 4–20 mA and 0–20 mA ranges configurable per channel via the Studio 5000 Logix Designer software. It does not support voltage output modes. For applications requiring voltage outputs (0–10 VDC or ±10 VDC), the 1769-OF2V or 1769-OF8V modules are the appropriate alternatives within the same 1769 Compact I/O platform. Channel configuration is stored in the processor’s I/O configuration tree and is automatically downloaded to the module on power-up, simplifying replacement and maintenance procedures.

Q3: What does the 12-Month Warranty cover, and how is the module tested before shipment?
A: Every 1769-OF4CI supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification testing that confirms channel output accuracy, isolation integrity, and backplane communication handshake with a live CompactLogix processor. Modules that do not meet factory-equivalent performance specifications are not shipped. In the event of a warranty claim, ZYPLC provides advance replacement support to minimize system downtime, and our technical team is available to assist with installation verification and fault diagnosis throughout the warranty period.

—
