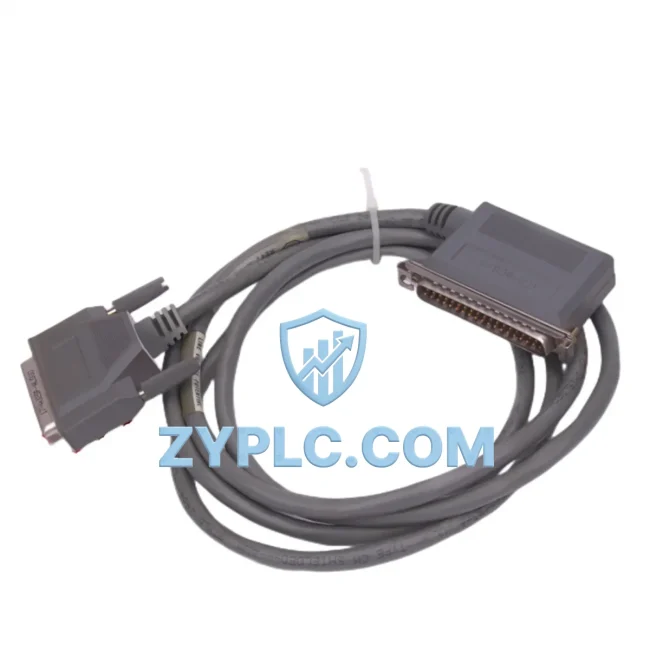

Allen-Bradley 1771-NC6 System-Ready Analog Cable for PLC-5 Architecture

Allen-Bradley 1771-NC6 System-Ready Analog Cable for PLC-5 Architecture

In a fully integrated industrial control system, every cable, module, and communication pathway plays a critical role in maintaining signal integrity, operational continuity, and long-term system reliability. The Allen-Bradley 1771-NC6 Analog Cable is not simply a wiring accessory — it is a precision-engineered interconnect component designed to serve as the backbone of analog signal transmission within the Rockwell Automation PLC-5 control platform. When deployed correctly within a layered automation architecture, the 1771-NC6 ensures that analog data flows cleanly and consistently from field-level sensors and transmitters through the I/O subsystem to the central processing unit, enabling accurate process control decisions across demanding industrial environments.

The PLC-5 platform, built around the 1771 I/O chassis system, is widely deployed in manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process industries. Within this architecture, the 1771-NC6 cable connects analog I/O modules — such as the 1771-IFE, 1771-OFE, and 1771-IFE/B — to field instrumentation, providing a shielded, low-noise signal path that preserves measurement accuracy across long cable runs and electrically noisy environments. The cable is engineered to complement the full 1771 I/O family, ensuring seamless Contextual Integration within existing rack configurations without requiring additional signal conditioning or interface hardware.

From a system architecture perspective, the 1771-NC6 operates at the I/O layer, bridging the gap between the physical process and the control layer where the PLC-5 processor — such as the 1785-L40B, 1785-L60B, or 1785-L80B — executes ladder logic and process algorithms. The processor communicates with the 1771 I/O chassis via the 1771 I/O backplane, and the integrity of analog signals entering that backplane depends directly on the quality and compatibility of the field wiring. By using the 1771-NC6, engineers eliminate common sources of signal degradation including ground loops, electromagnetic interference, and impedance mismatches that can introduce measurement errors and trigger nuisance alarms in sensitive process loops.

At the network layer, the PLC-5 system typically communicates upstream via Data Highway Plus (DH+) or ControlNet, connecting to supervisory systems, SCADA platforms, and historian servers. The 1771-NC6 supports this architecture by ensuring that the analog data presented to the processor is accurate and stable, which in turn improves the quality of data transmitted across the network to higher-level systems. In redundant control architectures — where dual PLC-5 processors and mirrored 1771 I/O chassis are deployed for critical process applications — consistent analog signal quality is essential for bumpless switchover and fault-tolerant operation. The 1771-NC6 is fully compatible with these redundancy configurations.

At the power layer, the 1771 I/O chassis is powered by dedicated 1771-P4S or 1771-P7 power supplies, which provide regulated DC power to all installed I/O modules. The 1771-NC6 cable does not impose additional power requirements on the chassis, making it straightforward to integrate into existing power budgets. At the human-machine interface layer, operators interact with the PLC-5 system through PanelView terminals or FactoryTalk View SE SCADA stations, where analog process values — temperature, pressure, flow, level — are displayed in real time. The accuracy of these displayed values depends on the uninterrupted signal chain from field sensor through the 1771-NC6 cable to the analog input module and ultimately to the processor.

For system engineers managing long-term maintenance and spare parts inventory, the 1771-NC6 represents a critical stocking item. As the PLC-5 platform ages, maintaining a reliable supply of compatible analog cables ensures that field replacements can be completed quickly during planned maintenance windows or unplanned outages, minimizing process downtime. ZYPLC maintains verified inventory of the 1771-NC6 with full functional testing and a 12-Month Warranty, providing procurement teams with confidence in component quality and supply continuity.

Architecture Specification Table

Coordinated Control System Design

The 1771-NC6 achieves its full value when considered as part of a coordinated control system rather than an isolated component. In a typical PLC-5 architecture, the processor module — such as the 1785-L40B or 1785-L60B — resides in the local chassis alongside a combination of digital and analog I/O modules. The 1771-IFE analog input module receives 4–20 mA or 0–10 V signals from field transmitters via the 1771-NC6 cable, converting them to digital values for processing. On the output side, the 1771-OFE analog output module drives control signals to variable frequency drives, control valves, and positioners through similarly shielded cabling.

The 1771 I/O chassis — available in 4-slot, 8-slot, and 16-slot configurations — houses these modules on a common backplane, with the 1771-P4S or 1771-P7 power supply providing regulated power to the entire rack. Remote I/O chassis, connected to the local processor via the 1771-SN Remote I/O Scanner, extend the system’s I/O capacity across large plant floor installations, with the 1771-NC6 serving the same analog interconnect function in remote racks as in the local chassis. For operator interaction, PanelView 1000 or PanelView Plus 6 terminals connected via DH+ provide real-time process visualization, with analog values sourced directly from the modules wired through the 1771-NC6. In redundant configurations, 1785-CHBM Hot Backup modules coordinate processor switchover, making consistent analog signal quality — delivered by the 1771-NC6 — essential for seamless failover without process upset.

Application in Layered Automation Systems

The 1771-NC6 is deployed across a wide range of industrial sectors where the PLC-5 platform remains the established control standard. In continuous process manufacturing — including chemical, pharmaceutical, and food and beverage production — the cable supports precise analog measurement of temperature, pressure, pH, and flow, enabling tight process control within regulatory compliance frameworks. In power generation and electrical utilities, PLC-5 systems equipped with 1771-NC6 cabling monitor generator output parameters, transformer temperatures, and switchgear status, providing the analog data necessary for load management and protective relay coordination.

In petrochemical and refinery applications, where process safety is paramount, the shielded design of the 1771-NC6 ensures that analog signals from pressure transmitters and level sensors remain accurate even in environments with high electromagnetic interference from large motors and variable speed drives. Water and wastewater treatment facilities rely on PLC-5 systems for pump control, chemical dosing, and effluent monitoring, with the 1771-NC6 providing reliable analog connectivity across geographically distributed pump stations. In mining and metallurgical operations, the cable supports analog control of conveyor drives, crusher loads, and smelter temperature profiles, where signal integrity directly impacts both product quality and equipment protection. Packaging and material handling lines use PLC-5 analog I/O for tension control, web guiding, and fill-level verification, all dependent on the clean signal transmission that the 1771-NC6 delivers.

Architecture Engineering FAQ

Q1: Is the 1771-NC6 compatible with all 1771 analog I/O modules, and can it be used in both local and remote I/O chassis?
The 1771-NC6 is designed for use with the Allen-Bradley 1771 analog I/O module family, including the 1771-IFE, 1771-OFE, and related variants. It is compatible with both local chassis connected directly to the PLC-5 processor and remote I/O chassis connected via the 1771-SN Remote I/O Scanner. The cable’s shielded construction ensures consistent signal quality regardless of chassis location within the system architecture.

Q2: How does the 1771-NC6 support long-term maintenance and system lifecycle management in aging PLC-5 installations?
As PLC-5 systems approach end-of-life from the OEM perspective, maintaining a reliable supply of compatible analog cables is essential for sustaining system uptime. The 1771-NC6 stocked by ZYPLC is fully tested and covered by a 12-Month Warranty, ensuring that replacement cables meet original performance specifications. Procurement teams are advised to maintain a buffer stock of 1771-NC6 cables alongside critical modules such as the 1785-L40B processor and 1771-IFE analog input modules to support rapid field replacement during unplanned outages.

Q3: What installation and commissioning best practices apply to the 1771-NC6 in electrically noisy industrial environments?
For optimal performance, the 1771-NC6 should be routed separately from high-voltage power cables and variable frequency drive output conductors to minimize inductive and capacitive coupling. Cable shields should be grounded at a single point — typically at the control panel end — to prevent ground loop currents that can introduce noise into analog measurements. During commissioning, analog loop calibration should be performed with the 1771-NC6 installed and all field devices connected, using the PLC-5 processor’s built-in analog scaling functions to verify end-to-end signal accuracy before placing the system in automatic control mode.
