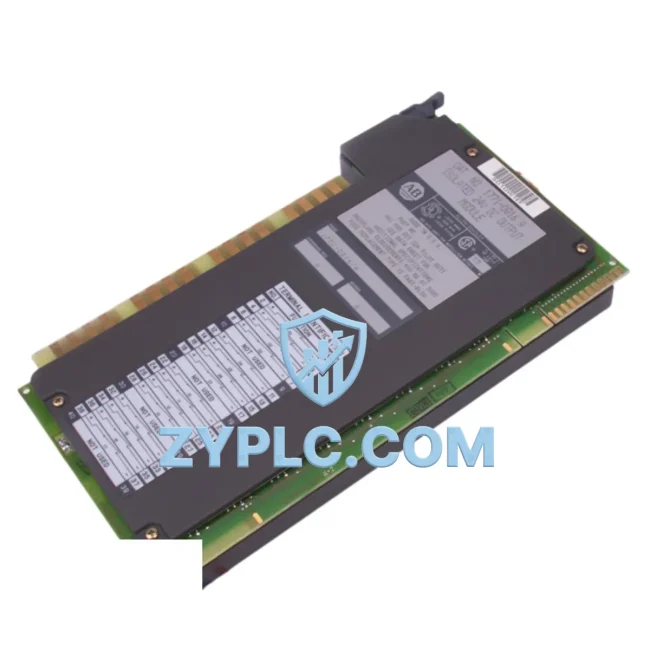

Allen-Bradley 1771-OQ16 Energy-Saving Digital Output Module

Allen-Bradley 1771-OQ16 Energy-Saving Digital Output Module: Precision Control for Optimized PLC-5 Automation

The Allen-Bradley 1771-OQ16 is a 16-point digital output module engineered for the PLC-5 I/O chassis platform, delivering reliable, low-latency signal switching that directly contributes to reduced energy consumption and improved production line throughput. In modern industrial environments where every watt of power and every millisecond of cycle time counts, the 1771-OQ16 serves as a foundational component in building leaner, more responsive control architectures. Whether deployed in discrete manufacturing, material handling, or process automation, this module enables plant engineers to tighten control loops, eliminate unnecessary actuator dwell time, and reduce the idle-state energy draw of downstream field devices.

Unlike generic output modules, the 1771-OQ16 is purpose-built for the Allen-Bradley PLC-5 backplane, ensuring deterministic scan-cycle integration with the processor. This tight coupling means output commands are executed with minimal jitter, allowing servo drives, solenoid valves, motor starters, and relay coils to respond precisely when commanded — not a millisecond late, not a millisecond early. The result is a measurable reduction in mechanical wear, heat generation, and reactive energy losses across the production floor.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1771-OQ16 does not operate in isolation — its energy efficiency impact is multiplied when integrated into a well-designed automation architecture. In a typical PLC-5-based control system, the module works in concert with the Allen-Bradley 1771-IA16 16-point AC input module to form a complete discrete I/O layer, capturing field signals and driving output loads with synchronized precision. The PLC-5 processor — such as the 1785-L40B or 1785-L80B — orchestrates the scan cycle, ensuring that the 1771-OQ16’s outputs are updated in lockstep with real-time process conditions, eliminating the over-run and under-run states that waste energy and cause mechanical stress.

For drive-level energy optimization, the 1771-OQ16 is commonly paired with Allen-Bradley PowerFlex 40 or PowerFlex 70 variable frequency drives (VFDs). The module’s transistor outputs provide the discrete run/stop and speed-select signals that command the VFD, enabling precise motor speed control matched to actual load demand. This eliminates the fixed-speed motor operation that is one of the largest sources of avoidable energy waste in industrial facilities — studies consistently show that reducing motor speed by just 20% can cut energy consumption by nearly 50% due to the affinity laws governing centrifugal loads.

Power quality and energy monitoring are equally critical. When the 1771-OQ16 is deployed alongside a Rockwell Automation PowerMonitor 1000 or PowerMonitor 5000 energy metering unit, plant engineers gain real-time visibility into load-side power consumption at the circuit level. This data feeds back into the PLC-5 program via DF1 or DH+ communication links, enabling closed-loop energy management strategies where output switching patterns are dynamically adjusted based on measured power draw rather than fixed time schedules.

For facilities running mixed I/O architectures, the 1771-SDN DeviceNet Scanner module can extend the PLC-5 system’s reach to distributed field devices — smart sensors, actuator-sensor interface (ASI) nodes, and intelligent motor control centers — all of which contribute to a more granular energy monitoring and control topology. The 1771-OQ16 anchors the hardwired discrete layer while the DeviceNet network handles the intelligent device layer, creating a two-tier control architecture that maximizes both responsiveness and energy awareness.

HMI visibility is provided through Allen-Bradley PanelView 550 or PanelView Plus 600 operator terminals connected via DH+ or DF1 serial links. Operators can monitor output channel states, acknowledge fault conditions, and adjust setpoints in real time — reducing the response lag between a detected inefficiency and a corrective control action. When combined with RSLogix 5 programming software and RSLinx Classic communication middleware, the entire 1771-OQ16-based control system becomes fully transparent for remote diagnostics, further reducing the need for on-site maintenance visits and the associated downtime energy costs.

Power Optimization in Real Production Lines

On active production lines, the 1771-OQ16 contributes to energy optimization through several concrete mechanisms. First, its solid-state transistor outputs eliminate the coil power draw and contact bounce losses inherent in relay-based output modules. In a 16-output system running continuously, this difference can amount to several watts of continuous savings per module — modest individually, but significant when multiplied across dozens of I/O racks in a large facility.

Second, the module’s deterministic output timing enables tighter production line pacing. When conveyors, indexers, and actuators receive their start and stop commands at precisely the right moment in the machine cycle, the line runs at its designed throughput without the micro-stoppages and re-synchronization delays that inflate cycle times and force machines to run longer than necessary to meet production targets. Shorter effective run times at the same output volume directly translate to lower energy consumption per unit produced.

Third, the 1771-OQ16 supports predictive maintenance strategies by enabling the PLC-5 program to monitor output load states and detect anomalies — such as a solenoid valve that fails to respond within the expected time window — before they escalate into unplanned downtime events. Unplanned stops are among the most energy-intensive events in manufacturing, as they require machines to be restarted from cold or idle states, consuming surge currents and thermal energy that far exceed steady-state operating costs. By catching faults early, the 1771-OQ16-based system keeps lines running smoothly and energy consumption predictable.

All units supplied by ZYPLC are drawn from tested, verified inventory. Each 1771-OQ16 undergoes outgoing shipment functional testing to confirm channel integrity, backplane communication, and output switching performance before dispatch. A 12-month warranty is included with every unit, covering defects in materials and workmanship under normal industrial operating conditions. Fast dispatch from in-stock inventory ensures minimal lead times, supporting just-in-time maintenance and repair strategies that keep your production lines running without extended spare-parts delays.

Energy Optimization FAQ

Q1: How does the 1771-OQ16 contribute to measurable energy savings on the production floor?
The 1771-OQ16 replaces relay-based output switching with solid-state transistor outputs, eliminating coil power draw and contact losses. More importantly, its deterministic integration with the PLC-5 processor enables precise load switching — ensuring motors, solenoids, and actuators are energized only when required and de-energized immediately when not needed. When paired with PowerFlex VFDs and PowerMonitor energy meters, the module becomes part of a closed-loop energy management system capable of measurably reducing kWh consumption per production unit.

Q2: Is the 1771-OQ16 compatible with my existing PLC-5 chassis and I/O configuration?
Yes. The 1771-OQ16 is designed for the standard 1771 I/O chassis backplane and is compatible with all PLC-5 processor families, including the 1785-L20, 1785-L40, 1785-L60, and 1785-L80 series. It occupies a single I/O slot and requires no special configuration beyond standard module addressing in RSLogix 5. Mixed installations with other 1771-series input and output modules — including analog, specialty, and communication modules — are fully supported.

Q3: Can the 1771-OQ16 be used as a direct replacement for older or failed output modules in legacy PLC-5 systems?
In most cases, yes. The 1771-OQ16 is a direct form-fit-function replacement for compatible 16-point transistor output modules in the 1771 I/O family. Before installation, verify that the field wiring voltage and current ratings match the module’s 10–50V DC, 1A-per-point specifications. If replacing an AC output module (such as the 1771-OA16), field wiring and load devices must be evaluated for DC compatibility. ZYPLC’s technical support team can assist with compatibility assessments prior to purchase.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1771-OQ16 supplied by ZYPLC is functionally tested prior to dispatch, verifying all 16 output channels, backplane communication integrity, and switching response under load. The 12-month warranty covers defects in materials and workmanship under normal industrial operating conditions from the date of shipment. Warranty claims are processed promptly, with replacement units dispatched from in-stock inventory to minimize your downtime exposure. For warranty inquiries or technical support, contact ZYPLC directly at [email protected] or +86 19859288691.
