Allen-Bradley 1784-PKTX System-Ready DH+ Interface for ControlLogix Architecture

Allen-Bradley 1784-PKTX System-Ready DH+ Interface for ControlLogix Architecture

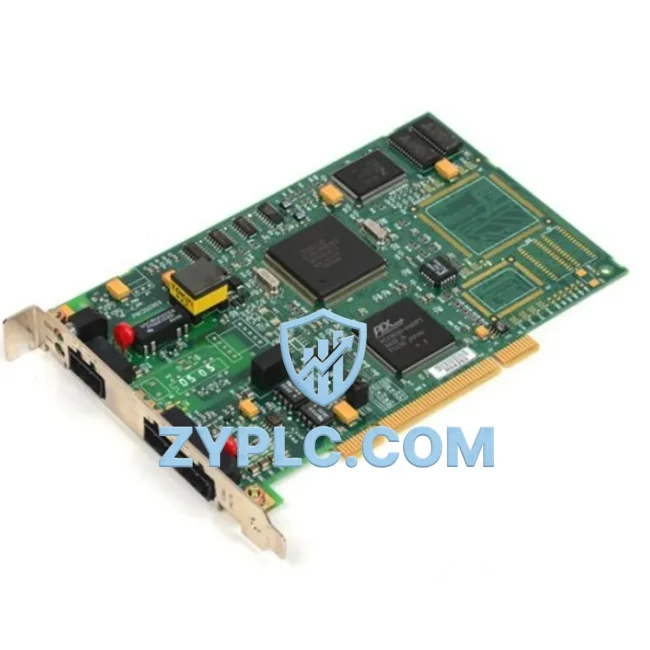

The Allen-Bradley 1784-PKTX is a PC-based Data Highway Plus (DH+) and Remote I/O (RIO) communication interface card engineered for seamless integration within Rockwell Automation’s ControlLogix control system architecture. Rather than functioning as a standalone peripheral, the 1784-PKTX occupies a critical position in the communication layer of a layered automation system — bridging legacy DH+ networks with modern PC-based engineering workstations, SCADA platforms, and HMI environments. Its role is to ensure that the control architecture maintains full upstream and downstream communication continuity, enabling engineers to program, monitor, and diagnose ControlLogix processors without disrupting live production processes.

In a complete industrial control system, the 1784-PKTX serves as the engineering access gateway between the PC workstation layer and the controller layer. When paired with a 1756-L71 or 1756-L74 ControlLogix processor installed in a 1756-A10 or 1756-A17 chassis, the card provides direct DH+ channel access for RSLogix 5000 and Studio 5000 Logix Designer programming sessions. This eliminates the need for Ethernet-only access paths in environments where legacy DH+ infrastructure remains the primary plant communication backbone — a common scenario in brownfield manufacturing, utilities, and process industries where full network migration is not yet feasible.

Architecture Specification Table

Coordinated Control System Design

The 1784-PKTX achieves its full value when considered within the broader ControlLogix system architecture rather than as an isolated component. At the controller layer, the card communicates directly with 1756-L71 and 1756-L74 ControlLogix processors, enabling RSLogix 5000 project uploads, downloads, and online monitoring. The processors reside in 1756-A10 or 1756-A17 backplanes, which also house 1756-EN2T EtherNet/IP communication modules for parallel Ethernet-based access — meaning the 1784-PKTX provides a dedicated DH+ path that does not compete with production Ethernet traffic.

At the I/O layer, the 1784-PKTX enables the engineering workstation to reach 1756-IB16 digital input modules, 1756-OB16E digital output modules, and 1756-IF8 analog input modules installed across local and remote ControlLogix chassis. For legacy Remote I/O architectures, the card’s RIO channel connects directly to 1771 I/O racks, allowing continued use of existing 1771-IB16 and 1771-OBD I/O modules without requiring a full migration to ControlLogix I/O. This hybrid architecture is particularly valuable in phased modernization projects where capital expenditure must be distributed across multiple budget cycles.

At the power layer, the 1756-PA72 or 1756-PB72 ControlLogix power supply modules provide stable 1.2A backplane power to the processor and communication modules, ensuring that the DH+ network driven by the 1784-PKTX operates without voltage-induced communication errors. At the human-machine interface layer, PanelView Plus 7 terminals connected via DH+ rely on the 1784-PKTX as the configuration and diagnostic access point, allowing engineers to update HMI applications and verify tag mappings without interrupting operator displays. The complete architecture — from the 1784-PKTX in the engineering PC through the ControlLogix chassis to the field I/O and HMI — forms a coherent, maintainable, and expandable control system.

Application in Layered Automation Systems

In discrete manufacturing environments such as automotive assembly lines and packaging machinery, the 1784-PKTX provides the engineering team with direct DH+ access to ControlLogix controllers managing conveyor sequencing, robotic cell coordination, and vision system integration. Maintenance engineers can perform online edits and fault diagnostics from a centralized workstation without requiring physical access to the control panel, reducing mean time to repair (MTTR) and minimizing production downtime.

In power generation and electrical utilities, the 1784-PKTX supports communication with ControlLogix systems managing generator excitation control, switchgear sequencing, and load shedding logic. The card’s ability to maintain a stable DH+ connection during high-EMI conditions — common in substation environments — makes it a reliable choice for utility-grade control architectures where communication integrity is a safety-critical requirement.

In petrochemical and refinery process control, the 1784-PKTX enables engineering workstations to access ControlLogix processors managing distillation column control, heat exchanger regulation, and emergency shutdown (ESD) system diagnostics. The card supports the brownfield integration model where legacy DH+ networks coexist with newer EtherNet/IP infrastructure, allowing process engineers to maintain full programming access across both network generations without duplicating hardware.

In water and wastewater treatment facilities, the 1784-PKTX connects SCADA workstations to ControlLogix systems controlling pump station sequencing, chemical dosing, and filtration process automation. Its compatibility with RSLinx Classic drivers ensures that existing SCADA software configurations require minimal modification when the card is deployed as a replacement or upgrade component.

In mining and metallurgical processing, where control systems must operate reliably in high-vibration, high-dust environments, the 1784-PKTX installed in a hardened engineering workstation provides the communication backbone for ControlLogix systems managing crusher sequencing, conveyor load balancing, and smelter temperature control. The 12-Month Warranty and verified Contextual Integration ensure that replacement units perform identically to original factory components, maintaining system consistency across long-term maintenance cycles.

Architecture Engineering FAQ

Q1: Is the 1784-PKTX compatible with both ControlLogix and legacy PLC-5 or SLC 500 systems on the same DH+ network?
Yes. The 1784-PKTX supports multi-node DH+ networks where ControlLogix processors (via 1756-DHRIO bridge modules), PLC-5 processors, and SLC 500 processors coexist on the same DH+ segment. RSLinx Classic manages node addressing and routing transparently, allowing a single 1784-PKTX installation to provide engineering access to all controller types on the network. This makes it an ideal solution for mixed-generation control architectures during phased modernization programs.

Q2: What are the installation and driver configuration requirements for integrating the 1784-PKTX into an existing ControlLogix architecture?
The 1784-PKTX requires installation in an ISA-bus-equipped PC or industrial workstation, followed by RSLinx Classic driver configuration using the 1784-PKTX driver type. The DH+ node address must be set via onboard DIP switches to a unique address within the network segment (typically node 0 for the engineering workstation). Once configured, RSLogix 5000 or Studio 5000 Logix Designer will automatically detect connected ControlLogix processors via the RSLinx communication path. No additional firmware updates to the ControlLogix chassis are required for standard DH+ communication.

Q3: What does the 12-Month Warranty cover, and how does it support long-term architecture maintenance?
The 12-Month Warranty covers full functional and electrical performance of the 1784-PKTX under normal industrial operating conditions, including DH+ communication integrity, RIO channel operation, and ISA bus interface reliability. In the context of long-term architecture maintenance, this warranty ensures that replacement units sourced for spare parts inventory or emergency repairs will perform to the same specification as the original installed component — eliminating the risk of communication degradation caused by substandard replacement hardware. Warranty claims are supported with direct technical assistance to minimize system downtime.
