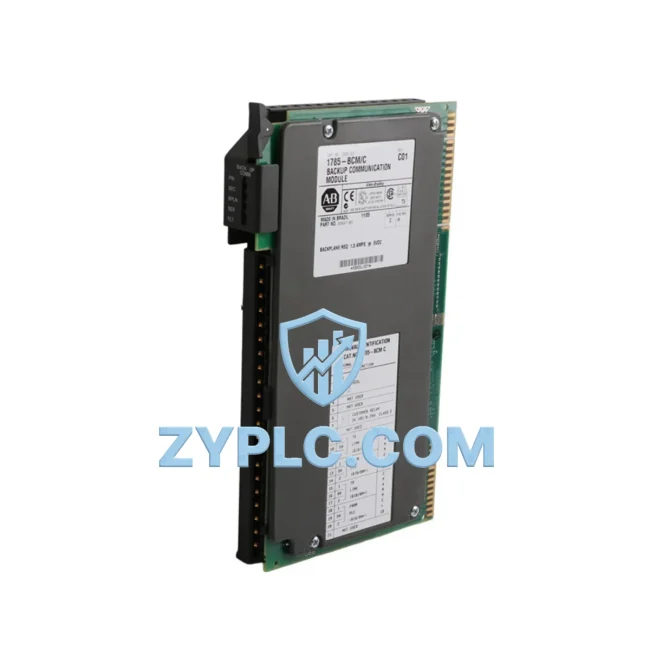

Allen-Bradley 1785-BCM System-Ready Backup Communications Module for PLC-5 Architecture

Allen-Bradley 1785-BCM System-Ready Backup Communications Module for PLC-5 Architecture

The Allen-Bradley 1785-BCM Backup Communications Module is a critical component within the Rockwell Automation PLC-5 control platform, engineered to sustain communication continuity and system resilience across multi-tier industrial automation architectures. Rather than functioning as a standalone device, the 1785-BCM is designed to operate as an integral node within a layered control hierarchy — bridging the control layer, I/O layer, network layer, and redundancy infrastructure to ensure uninterrupted process execution in demanding industrial environments.

In modern distributed control architectures, communication reliability is not optional — it is foundational. The 1785-BCM addresses this requirement by providing a dedicated backup communication pathway that activates seamlessly when primary communication channels experience degradation or failure. This capability is essential in facilities where process downtime translates directly into production loss, safety risk, or regulatory non-compliance. By integrating the 1785-BCM into a PLC-5 rack alongside primary processor modules such as the 1785-L40B or 1785-L80B, engineers can establish a communication redundancy layer that significantly reduces mean time to recovery (MTTR) and supports continuous system availability.

From a system architecture perspective, the 1785-BCM occupies a defined slot within the 1771 I/O chassis, sharing the backplane with I/O adapter modules, analog input/output cards, and specialty function modules. Its integration with the 1771-ACN15 ControlNet Adapter or the 1785-CHBM chassis backplane module allows it to participate in the broader network communication fabric, supporting both peer-to-peer messaging and supervisory data exchange with SCADA systems or DCS platforms. This positions the 1785-BCM not merely as a failover device, but as an active participant in the system’s communication architecture.

Architecture Specification Table

Coordinated Control System Design

The 1785-BCM achieves its full value when deployed within a coordinated PLC-5 system architecture. At the processor level, it works in conjunction with PLC-5 CPU modules such as the 1785-L40B, 1785-L60B, and 1785-L80B, which serve as the primary execution engines for ladder logic, function block, and structured text programs. The backup communications capability provided by the 1785-BCM ensures that even during processor switchover events or network interruptions, the control system maintains its communication links to remote I/O racks and supervisory systems.

At the I/O layer, the 1785-BCM coordinates with digital and analog I/O modules housed in the 1771 I/O chassis, including discrete input modules such as the 1771-IB and 1771-OB output modules, as well as analog modules like the 1771-IFE analog input module. These modules rely on stable backplane communication to deliver accurate process data to the CPU — a dependency that the 1785-BCM’s backup channel directly supports.

At the network layer, the 1785-BCM interfaces with Data Highway Plus (DH+) networks, enabling communication with programming terminals, HMI panels such as the 2711-T10C8 PanelView operator interface, and peer PLC-5 processors in multi-drop network configurations. This network-layer integration is essential for facilities operating distributed control architectures where multiple PLCs share process data across a common communication bus.

Power supply integrity is maintained through chassis-level power modules such as the 1771-P4S or 1771-P7 power supply, which provide regulated backplane voltage to all installed modules including the 1785-BCM. In redundant power configurations, dual power supplies ensure that communication module operation is not compromised by a single power supply failure.

For system expansion and remote I/O communication, the 1785-BCM supports architectures that include the 1771-ASB Remote I/O Adapter, enabling the PLC-5 processor to communicate with remote chassis located in distributed field enclosures. This capability is particularly valuable in large-scale process plants where I/O points are distributed across multiple physical locations, and where communication reliability between the main control rack and remote I/O racks is mission-critical.

Application in Layered Automation Systems

The Allen-Bradley 1785-BCM finds application across a broad spectrum of industrial sectors where PLC-5 platforms remain the backbone of process control infrastructure.

In power generation and electrical distribution facilities, the 1785-BCM supports communication redundancy in substation automation systems, where uninterrupted data exchange between protection relays, SCADA systems, and PLC-5 controllers is essential for grid stability and fault response. The module’s ability to maintain backup communication channels ensures that operator visibility and control authority are preserved even during primary network faults.

In petrochemical and refinery environments, the 1785-BCM is deployed in safety-instrumented system (SIS) adjacent architectures, where PLC-5 controllers manage process variables such as pressure, temperature, and flow across complex piping networks. Communication continuity between the control layer and field instrumentation is critical for maintaining process safety and regulatory compliance.

In water and wastewater treatment plants, the 1785-BCM supports SCADA-integrated PLC-5 architectures that monitor and control pumping stations, filtration systems, and chemical dosing equipment. The module’s backup communication capability ensures that remote pump stations remain in communication with the central control room even during network disruptions.

In mining and metallurgical operations, the 1785-BCM is integrated into conveyor control systems, crusher automation, and ore processing lines where PLC-5 platforms manage high-power motor drives and process sequencing. Communication reliability between the PLC-5 processor and remote I/O racks distributed across the mine site is essential for safe and efficient operation.

In packaging and manufacturing production lines, the 1785-BCM supports high-speed discrete control architectures where PLC-5 processors coordinate robotic pick-and-place systems, servo drives, and vision inspection systems. The module’s backup communication channel ensures that production line communication is maintained during scheduled maintenance windows or unexpected network events, minimizing unplanned downtime.

Architecture Engineering FAQ

Q1: Is the Allen-Bradley 1785-BCM compatible with all PLC-5 processor variants, and can it be installed in any slot within the 1771 chassis?
The 1785-BCM is designed for use within the PLC-5 family and is compatible with PLC-5 processors including the 1785-L40B, 1785-L60B, and 1785-L80B variants. It installs in a standard single-width slot within the 1771 I/O chassis and is powered directly from the chassis backplane. Slot placement should follow Rockwell Automation’s chassis configuration guidelines to ensure proper backplane communication and avoid conflicts with adjacent I/O or specialty modules. Always verify chassis power supply capacity when adding modules to an existing rack configuration.

Q2: How does the 1785-BCM support long-term system maintainability and architecture consistency in aging PLC-5 installations?
The 1785-BCM plays a key role in extending the operational life of PLC-5 control systems by providing a reliable backup communication pathway that reduces the risk of communication-related system failures. In facilities where PLC-5 platforms are maintained as legacy systems pending migration to newer ControlLogix or CompactLogix architectures, the 1785-BCM ensures that existing communication infrastructure remains stable and supportable. Stocking a verified spare 1785-BCM module — backed by a 12-Month Warranty — is a recommended practice for facilities with critical uptime requirements, as it enables rapid module replacement without extended lead times or compatibility uncertainty.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support post-installation technical issues?
Every 1785-BCM supplied by ZYPLC is fully tested and verified prior to shipment, and is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Our technical support team is available to assist with installation guidance, system compatibility verification, and troubleshooting for Contextual Integration scenarios where the 1785-BCM is deployed within complex multi-rack or multi-network PLC-5 architectures. For post-installation support, contact our engineering team directly at [email protected] or call +86 19859288691.
