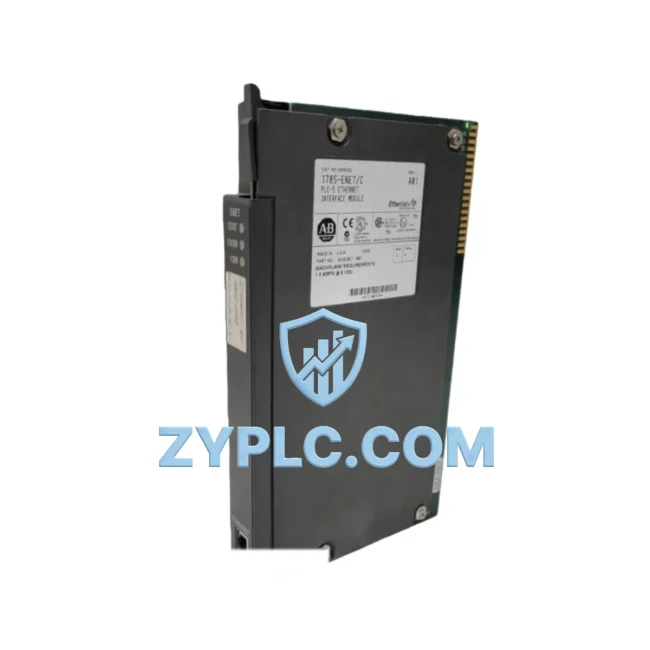

Allen-Bradley 1785-ENET/C System-Ready Ethernet Interface for PLC-5 Architecture

Allen-Bradley 1785-ENET/C System-Ready Ethernet Interface for PLC-5 Control System Architecture

The Allen-Bradley 1785-ENET/C is a dedicated Ethernet communication interface module engineered specifically for integration within Rockwell Automation PLC-5 processor-based control architectures. In modern industrial automation environments — spanning manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process control — the communication backbone of a control system determines the reliability, scalability, and long-term maintainability of the entire installation. The 1785-ENET/C addresses this requirement by providing a stable, standards-compliant 10 Mbps Ethernet TCP/IP link that connects PLC-5 processors to supervisory control networks, SCADA platforms, historian systems, and peer controllers without disrupting the deterministic scan cycle of the host processor.

Within a layered automation architecture, the 1785-ENET/C occupies the network communication layer, bridging the control layer — where the 1785-L80E or 1785-L60B PLC-5 processor executes ladder logic and manages I/O — with the plant-wide Ethernet infrastructure. This positioning allows engineering teams to implement centralized data collection, remote diagnostics, and cross-platform integration while preserving the integrity of the real-time control loop. The module installs directly into the PLC-5 chassis backplane alongside I/O modules such as the 1771-OAD output module and 1771-IFE analog input module, sharing the backplane data highway without requiring an external communication rack or gateway appliance.

System architects designing redundant or high-availability control systems will find the 1785-ENET/C particularly valuable when paired with a 1785-CHBM chassis backplane module and a redundant 1785-L80E processor pair. The Ethernet interface maintains its network presence independently of processor switchover events, ensuring that SCADA polling cycles and historian data streams experience minimal interruption during planned or unplanned failover sequences. This characteristic is critical in power utility substations and chemical batch processing facilities where data continuity is a regulatory and operational requirement.

From a signal flow perspective, process data originates at field devices connected through 1771-series I/O modules — including discrete, analog, and specialty modules — travels across the 1771 I/O chassis backplane to the PLC-5 processor data table, and is then made available to Ethernet-connected clients through the 1785-ENET/C using standard EtherNet/IP or PCCC messaging protocols. This architecture supports both unsolicited messaging from the PLC-5 to SCADA servers and polled read/write operations initiated by HMI terminals such as the PanelView 1000 or PanelView Plus 6 series, enabling flexible supervisory integration without custom protocol conversion hardware.

For facilities managing large-scale distributed control systems, the 1785-ENET/C supports multi-node Ethernet topologies where multiple PLC-5 chassis — each equipped with its own Ethernet interface — communicate peer-to-peer across a managed industrial Ethernet switch infrastructure. Engineering teams can configure MSG instructions within the PLC-5 processor to exchange data tables between remote chassis, enabling coordinated control across geographically separated process units such as pump stations, compressor skids, or conveyor transfer points. This peer communication capability reduces the dependency on a central DCS concentrator and distributes control intelligence closer to the process.

Installation and commissioning of the 1785-ENET/C follows standard Rockwell Automation procedures using RSLinx Classic or RSLinx Enterprise as the communication driver layer. IP address assignment is performed through the module’s front-panel rotary switches or via BOOTP/DHCP server configuration, providing flexibility for both fixed-address plant networks and dynamically managed infrastructure environments. Once online, the module appears as a communication node in RSWho, allowing RSLogix 5 programming software to perform online program uploads, downloads, and live data monitoring without interrupting the running control program — a significant advantage during production maintenance windows.

Long-term maintainability is a core design consideration for any industrial control system expected to operate for 15 to 25 years. The 1785-ENET/C supports this requirement by maintaining backward compatibility with existing PLC-5 chassis hardware, 1771 I/O infrastructure, and Rockwell Automation software toolchains. Spare module availability, combined with ZYPLC’s 12-Month Warranty coverage and pre-shipment functional testing protocol, ensures that replacement units can be sourced, verified, and installed within planned maintenance cycles without requiring system-wide hardware upgrades or software migration projects.

Architecture Specification Table

Coordinated Control System Design

The 1785-ENET/C achieves its full architectural value when deployed as part of a coordinated PLC-5 control system rather than as a standalone communication add-on. A typical system configuration begins with the 1785-L80E PLC-5 processor as the central control engine, supported by a 1771-P7 power supply module that delivers regulated backplane power to all installed modules including the Ethernet interface. The I/O layer is populated with 1771-IFE analog input modules for process variable acquisition and 1771-OAD discrete output modules for actuator control, with all I/O data flowing through the backplane to the processor data table.

At the network layer, the 1785-ENET/C connects to a managed industrial Ethernet switch — such as those in the Stratix 5700 series — which segments the control network from the corporate IT infrastructure and provides VLAN isolation for deterministic communication. Peer PLC-5 controllers in adjacent process units, each equipped with their own 1785-ENET/C interface, exchange production data through MSG instructions configured in RSLogix 5, enabling coordinated sequencing across multiple control zones without a central arbitration controller.

The human-machine interface layer is served by PanelView Plus 6 terminals connected to the same Ethernet segment, using EtherNet/IP tag-based communication to display real-time process values and accept operator inputs. For facilities requiring remote access, a 1761-NET-ENI Serial-to-Ethernet adapter may be used to extend connectivity to legacy SLC 500 controllers on the same network, allowing a unified SCADA view across mixed-generation control hardware. The 1785-CHBM chassis backplane module supports hot-backup redundancy configurations, ensuring that the Ethernet communication path remains active during processor switchover events.

Application in Layered Automation Systems

In manufacturing and assembly line environments, the 1785-ENET/C enables real-time production data reporting from PLC-5 controllers managing conveyor systems, robotic welding cells, and press line sequencers to MES platforms and OEE monitoring dashboards. The Ethernet interface allows production supervisors to monitor cycle times, fault codes, and output counts from a central control room without requiring dedicated serial communication cables to each controller.

In power generation and electrical substation applications, the 1785-ENET/C provides the communication link between PLC-5 controllers managing switchgear sequencing, transformer protection, and load shedding logic and the SCADA systems used by grid operators. The module’s compatibility with PCCC messaging ensures that legacy substation automation programs can be maintained without protocol migration while still benefiting from modern Ethernet network infrastructure.

Petrochemical and refinery process control systems frequently rely on PLC-5 platforms for their proven reliability in continuous operation environments. The 1785-ENET/C supports integration with distributed control system (DCS) historian servers, allowing process engineers to archive temperature, pressure, and flow data from PLC-5-controlled process units for regulatory compliance reporting and process optimization analysis. Water treatment facilities use similar configurations to connect PLC-5 controllers managing pump stations, chemical dosing systems, and filtration processes to centralized SCADA platforms monitoring multiple remote sites across a municipal distribution network.

Architecture Engineering FAQ

Q1: Is the 1785-ENET/C compatible with all PLC-5 processor models, and does it require any specific chassis configuration?
The 1785-ENET/C is compatible with the full range of Allen-Bradley PLC-5 processors, including the 1785-L20, 1785-L40, 1785-L60B, 1785-L80E, and 1785-L80B models. It installs into any available single-slot position within a standard 1771 PLC-5 chassis and communicates with the host processor through the backplane data highway. No special chassis configuration is required, though it is recommended to position the module adjacent to the processor slot to minimize backplane communication latency. The 1771-P7 or equivalent power supply must provide sufficient backplane current capacity to support all installed modules including the Ethernet interface.

Q2: Can the 1785-ENET/C support simultaneous connections from multiple SCADA clients and HMI terminals without impacting PLC-5 scan time?
Yes. The 1785-ENET/C manages its Ethernet communication independently of the PLC-5 processor scan cycle, handling TCP/IP connection management and message queuing in its own onboard processor. This architecture ensures that increased Ethernet traffic from multiple simultaneous SCADA polling clients, historian connections, and HMI terminal sessions does not directly extend the PLC-5 ladder logic scan time. However, MSG instruction execution within the PLC-5 program does consume processor resources, so engineering teams should review MSG instruction frequency and data block sizes during system commissioning to optimize overall system performance.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC ensure module quality before shipment?
ZYPLC’s 12-Month Warranty covers functional defects in the 1785-ENET/C module under normal industrial operating conditions for a period of twelve months from the date of shipment. Prior to shipment, each module undergoes a pre-shipment functional test protocol that verifies backplane communication integrity, Ethernet port connectivity, IP address configuration response, and protocol communication capability. Modules that do not pass all test criteria are quarantined and not shipped. In the event of a warranty claim, ZYPLC provides replacement unit dispatch or repair service with documented test certification. For long-term maintenance planning, ZYPLC maintains inventory of 1785-ENET/C modules to support scheduled replacement cycles and emergency spare requirements.
