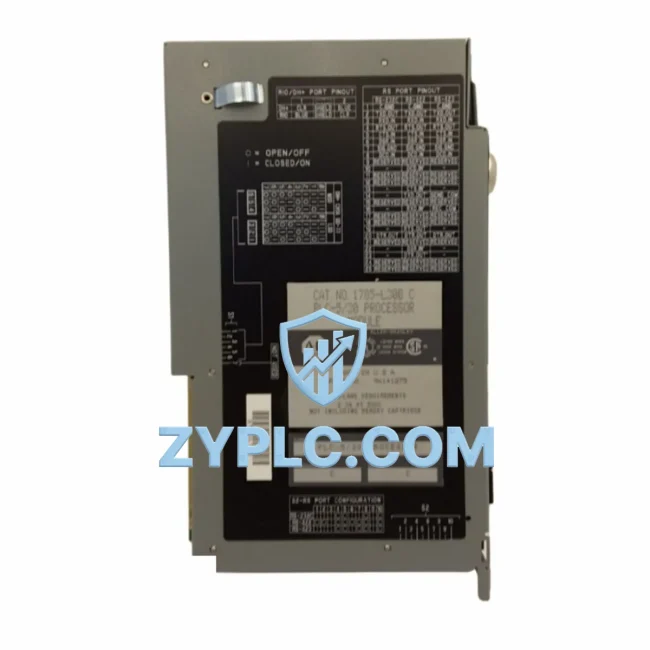

Allen-Bradley 1785-L30B Energy-Saving PLC for PLC-5 Automation
The Allen-Bradley 1785-L30B is a high-performance PLC-5 series programmable logic controller designed to deliver precise, energy-aware control across demanding industrial environments. As factories face increasing pressure to reduce operational energy costs and improve equipment utilization rates, the 1785-L30B stands out as a proven platform for optimizing motor control sequences, tightening production line cycle times, and minimizing idle-state power draw across multi-axis automation systems.
Built on Rockwell Automation’s PLC-5 architecture, the 1785-L30B supports a broad range of I/O configurations and communication protocols, enabling seamless integration into existing energy management and process control infrastructures. Its deterministic scan cycle ensures that control commands are executed with minimal latency, directly contributing to reduced energy waste caused by over-cycling, unnecessary actuator engagement, or uncoordinated drive sequencing.
Efficiency Performance Table
| Parameter |
Specification |
| SKU |
1785-L30B |
| Brand |
Allen-Bradley (Rockwell Automation) |
| Series |
PLC-5 |
| Product Type |
PLC Controller Module |
| Power Consumption |
Low-power backplane design; optimized for continuous 24/7 operation |
| Operating Efficiency |
Deterministic scan cycle for minimal CPU idle waste |
| Compatible Systems |
Rockwell PLC-5 I/O racks, 1771 I/O modules, DH+ and Remote I/O networks |
| Application Environment |
Discrete manufacturing, process control, material handling, energy monitoring |
| Energy Optimization Value |
Reduces unnecessary actuator cycling; supports load-shedding logic and demand-response routines |
| Origin |
United States |
| Warranty |
12-Month Warranty — tested and verified before shipment |
Energy-Aware Automation Architecture
The 1785-L30B operates as the central processing unit within a PLC-5 rack, coordinating data exchange with 1771-series I/O modules to monitor and control field devices in real time. In energy-intensive production environments, this controller is frequently paired with PowerFlex 700 variable frequency drives to regulate motor speed based on actual load demand rather than fixed setpoints — a strategy that alone can reduce motor energy consumption by 20–50% in variable-torque applications such as fans, pumps, and conveyors.
For distributed energy monitoring, the 1785-L30B integrates with PowerMonitor 3000 power metering units via the Data Highway Plus (DH+) network, enabling the controller to receive real-time kWh, power factor, and demand data directly into ladder logic. This allows engineers to implement closed-loop energy control routines — for example, automatically shedding non-critical loads when peak demand thresholds are approached, or sequencing motor starts to avoid simultaneous inrush current spikes.
On the drive coordination side, the 1785-L30B communicates with 1336 PLUS II AC drives through Remote I/O, providing speed reference and enable signals that align drive output with actual process requirements. When combined with 1771-OFE analog output modules, the controller can deliver precise 4–20 mA signals to proportional control valves and variable-speed drives, eliminating the energy losses associated with throttling valves or fixed-speed motor operation.
For human-machine interface and energy dashboard visualization, the 1785-L30B connects to PanelView 1000 terminals, allowing operators to monitor real-time energy consumption trends, equipment runtime hours, and production throughput on a single screen. This visibility enables shift supervisors to make informed decisions about equipment scheduling, reducing unnecessary idle runtime and associated standby power losses.
The controller’s compatibility with 1771-SDN DeviceNet Scanner modules further extends its reach into smart field device networks, where intelligent motor starters, soft starters, and distributed I/O nodes can report energy and diagnostic data back to the PLC-5 rack. This architecture supports predictive maintenance workflows by flagging abnormal current draw or thermal conditions before they escalate into unplanned downtime events.
Power Optimization in Real Production Lines
In automotive body welding lines, the 1785-L30B has been deployed to coordinate robot enable sequences, weld timer logic, and conveyor indexing — ensuring that high-current welding equipment is only energized during active weld cycles, not during part transfer or fixture clamping phases. This sequencing discipline, enforced at the PLC level, directly reduces peak demand charges on the facility’s utility bill.
In food and beverage processing, the controller manages multi-zone conveyor systems where belt speeds are dynamically adjusted based on upstream buffer levels. By integrating with PowerFlex 40 drives on individual conveyor zones, the 1785-L30B eliminates the energy waste of running all zones at full speed regardless of product flow — a common source of unnecessary power consumption in fixed-speed legacy systems.
For water treatment and pump station applications, the 1785-L30B executes duty-standby pump rotation logic, ensuring that no single pump accumulates excessive runtime hours while others remain idle. Combined with PowerMonitor energy data, the controller can calculate real-time pump efficiency and trigger maintenance alerts when efficiency drops below baseline — reducing both energy waste and the risk of catastrophic pump failure.
Every 1785-L30B unit supplied by ZYPLC undergoes full functional testing prior to shipment, including I/O scan verification, communication port testing, and power-on self-diagnostics. Units are sourced from verified supply channels, held in climate-controlled inventory, and shipped with a 12-month warranty covering defects in materials and workmanship. Fast dispatch from in-stock inventory minimizes production line downtime for customers requiring urgent replacement controllers.
Energy Optimization FAQ
Q: How does the 1785-L30B contribute to measurable energy savings on the production floor?
A: The 1785-L30B enables energy savings through precise sequencing of motor starts, integration with variable frequency drives such as the PowerFlex 700, and support for demand-response logic that sheds non-critical loads during peak tariff periods. When properly programmed, these strategies can reduce facility energy costs by 15–30% in motor-intensive applications.
Q: Is the 1785-L30B compatible with modern energy monitoring systems?
A: Yes. The 1785-L30B communicates via DH+ and Remote I/O, allowing integration with PowerMonitor 3000 and similar power metering devices. Energy data can be read directly into the PLC program for closed-loop control or logged to an ControlLogix data concentrator for long-term trend analysis.
Q: Can the 1785-L30B replace an existing PLC-5 controller without reprogramming?
A: In most cases, yes. The 1785-L30B is a direct form-fit-function replacement within the PLC-5 family. Program files created for equivalent PLC-5 processors can typically be loaded without modification, provided the I/O configuration and memory requirements are compatible. ZYPLC recommends verifying firmware revision compatibility before installation.
Q: What does the 12-month warranty cover, and what is the testing process?
A: Every 1785-L30B shipped by ZYPLC is tested for full operational functionality, including processor scan, I/O communication, and port integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are handled directly through ZYPLC’s technical support team, with replacement units dispatched from in-stock inventory to minimize customer downtime.
