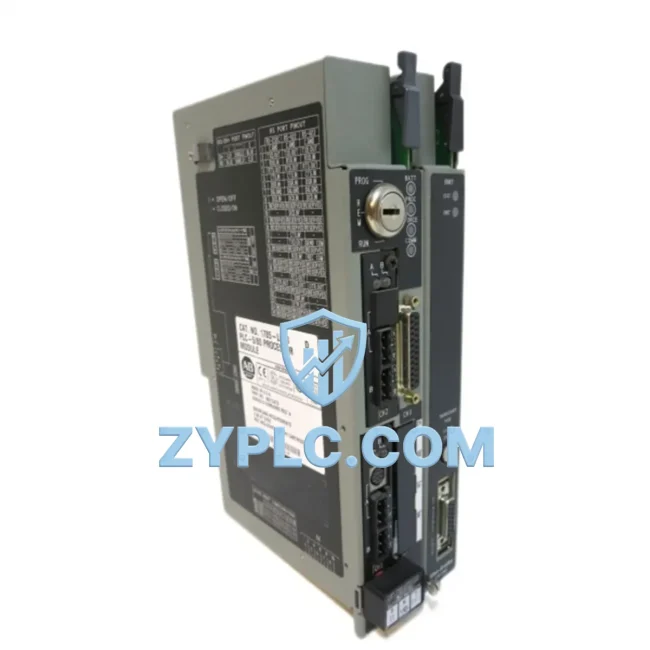

Allen-Bradley 1785-L80B Energy-Saving PLC for PLC-5 Automation

Allen-Bradley 1785-L80B Energy-Saving PLC for Optimized PLC-5 Automation

The Allen-Bradley 1785-L80B is a high-performance PLC-5/80 processor module engineered for energy-conscious industrial environments where equipment utilization, motor control precision, and production line throughput must be continuously optimized. As a core component of the Rockwell Automation PLC-5 platform, the 1785-L80B delivers deterministic scan-cycle execution that directly reduces idle energy consumption across multi-axis drive systems and distributed I/O networks.

In modern manufacturing facilities, energy waste is rarely caused by a single component failure — it accumulates through inefficient scan cycles, uncoordinated motor starts, oversized drive setpoints, and unmonitored auxiliary loads. The 1785-L80B addresses these challenges at the controller level by providing fast, reliable program execution that enables tighter closed-loop control over variable frequency drives, servo amplifiers, and power distribution systems. When paired with Allen-Bradley 1771 I/O modules and 1785-series communication adapters, the processor forms a complete energy-aware control backbone capable of monitoring real-time power draw and adjusting output commands to minimize reactive load.

Facilities running legacy PLC-5 architectures benefit from the 1785-L80B’s compatibility with existing 1771 I/O chassis, eliminating the need for full system replacement while still achieving measurable efficiency gains. The processor supports Data Highway Plus (DH+) and Remote I/O (RIO) communication protocols, allowing seamless integration with Allen-Bradley PanelView HMI terminals for real-time energy dashboards and operator-level power monitoring. This visibility into energy consumption at the machine level is the first step toward systematic reduction of kWh per production unit.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1785-L80B operates most effectively when integrated into a layered automation architecture designed around energy accountability. At the field level, Allen-Bradley 1771-OFE analog output modules translate processor commands into precise 4–20 mA signals that govern PowerFlex 700 variable frequency drives, enabling smooth motor acceleration profiles that eliminate inrush current spikes — one of the most significant sources of peak demand charges in industrial facilities.

At the network layer, the processor communicates via DH+ to Allen-Bradley 1747-SDN DeviceNet Scanner modules, which aggregate status data from distributed motor starters, soft starters, and smart contactors across the production floor. This data is fed back into the 1785-L80B’s program logic, where energy-aware ladder rungs can automatically shed non-critical loads during peak tariff windows or ramp down conveyor speeds during scheduled micro-stops.

For servo-driven axes requiring high-precision positioning with minimal energy overshoot, the 1785-L80B interfaces with Allen-Bradley 1394 GMC servo drive systems through the 1771-SER serial communication module. The tight integration between the PLC-5 processor and the 1394 drive’s torque control loop ensures that servo axes decelerate regeneratively, feeding energy back into the DC bus rather than dissipating it as heat through braking resistors.

Power quality monitoring is handled upstream by Allen-Bradley 1420 PowerMonitor units installed at the MCC (Motor Control Center) level. These devices report voltage, current, power factor, and harmonic distortion data to the 1785-L80B via Remote I/O, enabling the processor to make real-time corrections to drive output frequencies and reduce reactive power consumption. When power factor drops below a configurable threshold, the processor can automatically trigger capacitor bank switching or adjust VFD carrier frequencies to restore efficiency.

Operator visibility is provided through Allen-Bradley PanelView Plus 700 HMI terminals connected via DH+ to the 1785-L80B. Custom energy dashboards display live kWh consumption per production zone, shift-level energy totals, and alarm conditions for abnormal power draw — giving production supervisors the data they need to make informed decisions about equipment scheduling and load balancing without requiring a separate energy management system.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the 1785-L80B has been deployed to coordinate the sequencing of resistance welding transformers, robot servo controllers, and conveyor indexing drives. By precisely timing the firing sequence of welding guns through the 1771 I/O rack, the processor prevents simultaneous high-current draws that would otherwise cause voltage sag across the facility’s distribution network. This sequencing alone can reduce peak demand by 8–15%, directly lowering monthly electricity costs without any change to production throughput.

In food and beverage processing plants, the 1785-L80B manages the start-stop logic for large centrifugal pumps and compressors through Allen-Bradley SMC-3 soft starters. Rather than allowing across-the-line starts that draw 6–8 times full-load current, the processor triggers controlled ramp-up sequences that limit inrush current and reduce mechanical stress on couplings and impellers. Fewer mechanical failures mean less unplanned downtime, lower maintenance costs, and more consistent production line rhythm.

For facilities implementing predictive maintenance programs, the 1785-L80B’s analog input channels — populated with 1771-IFE modules — continuously sample vibration transmitter signals from critical rotating equipment. Trend data is logged to the processor’s data table files and transmitted via DH+ to a supervisory SCADA system, where machine learning algorithms identify bearing wear signatures weeks before catastrophic failure. This predictive capability reduces emergency maintenance labor costs and eliminates the energy waste associated with running degraded equipment at reduced efficiency.

Inventory availability for the 1785-L80B is maintained to support rapid deployment in both planned upgrades and emergency replacement scenarios. Each unit undergoes a comprehensive pre-shipment test protocol that verifies processor memory integrity, I/O backplane communication, and DH+ network handshaking before dispatch. The 12-month warranty covers all verified units, providing procurement teams with the confidence to specify refurbished PLC-5 hardware in capital-constrained energy retrofit projects without sacrificing reliability.

Energy Optimization FAQ

Q1: How does the 1785-L80B contribute to measurable energy savings in an existing PLC-5 system?
The 1785-L80B enables energy savings primarily through tighter control loop execution. By reducing scan cycle jitter and enabling faster response to process feedback signals, the processor allows VFDs and servo drives to operate closer to their optimal efficiency points. When combined with power monitoring via 1420 PowerMonitor units and demand-side load management logic in the ladder program, facilities typically report 5–15% reductions in motor system energy consumption without changes to production output.

Q2: Is the 1785-L80B compatible with my existing 1771 I/O chassis and DH+ network?
Yes. The 1785-L80B is fully compatible with the 1771 I/O chassis family and supports both DH+ and Remote I/O (RIO) communication protocols natively. No additional communication adapters are required for standard PLC-5 network topologies. Compatibility with existing 1771-series analog, digital, and specialty I/O modules is maintained, making the 1785-L80B a direct drop-in replacement for other PLC-5/80 processors in energy retrofit projects.

Q3: Can the 1785-L80B replace a failed processor without reprogramming the entire application?
In most cases, yes. The 1785-L80B supports program upload from the existing processor memory or from a backup file stored on a 1784-series programming terminal. If the original program file is available, the replacement processor can be configured and placed online within hours, minimizing production downtime and the associated energy and revenue losses from an unplanned outage. Our technical team can advise on memory module compatibility and program transfer procedures prior to shipment.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1785-L80B unit is subjected to a multi-stage test protocol before dispatch: processor memory diagnostics, backplane communication verification, DH+ network handshaking, and I/O channel functional testing. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that fail any stage of the pre-shipment test are quarantined and not dispatched. Warranty claims are processed with priority turnaround to minimize impact on production schedules.
