Allen-Bradley 1785-ME16 Energy-Saving Memory Module for PLC-5

Allen-Bradley 1785-ME16 Energy-Saving Memory Module for PLC-5: Precision Control for Optimized Automation

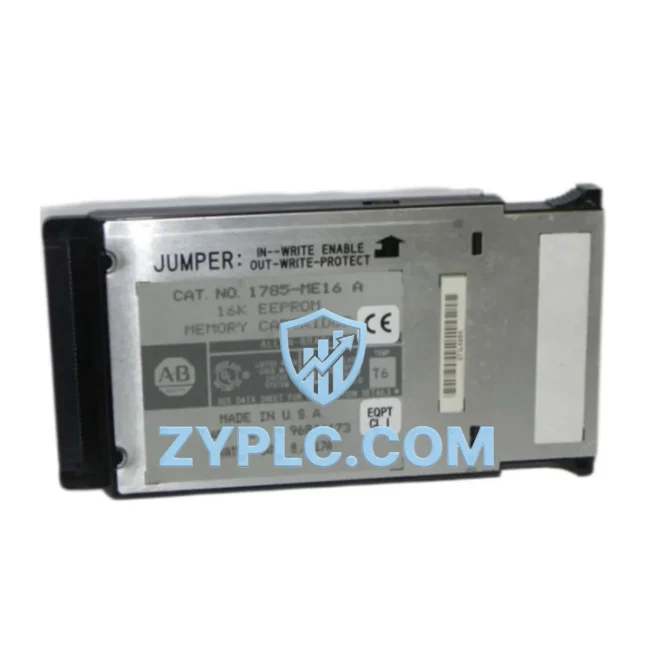

The Allen-Bradley 1785-ME16 is a 16K EEPROM memory module engineered for the PLC-5 programmable controller platform. In modern industrial environments where energy efficiency and equipment utilization are critical KPIs, the 1785-ME16 plays a foundational role in ensuring that control logic executes with minimal latency, reduced scan-cycle overhead, and consistent program integrity — all of which directly contribute to lower energy consumption and improved production line throughput.

By storing ladder logic and configuration data in non-volatile EEPROM, the 1785-ME16 eliminates the need for battery-backed RAM in many legacy PLC-5 installations, reducing auxiliary power draw and the maintenance burden associated with periodic battery replacement. This translates into measurable reductions in standby energy consumption and unplanned downtime — two of the most significant contributors to energy waste on the factory floor.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1785-ME16 does not operate in isolation — its value is realized within a broader energy-aware control architecture. In a typical PLC-5-based system, the memory module works in concert with the 1785-L40B or 1785-L60B processor to execute motion and process control routines that govern variable-speed drives, servo actuators, and distributed I/O networks. When program logic is stored reliably in EEPROM, the processor can maintain tighter scan-cycle timing, which is essential for coordinating energy-intensive equipment such as Allen-Bradley PowerFlex 700 variable frequency drives (VFDs) and PowerFlex 40 compact drives used in conveyor and pump applications.

On the I/O side, the 1785-ME16 supports architectures that incorporate 1771-OBD digital output modules and 1771-IFE analog input modules for real-time feedback from current transformers and power transducers. This closed-loop data path — from field sensor through I/O module to PLC-5 processor and back to the drive — is the backbone of any energy monitoring strategy. Accurate, low-latency program execution enabled by the 1785-ME16 ensures that power setpoints are respected and that motors are not running at unnecessary loads during idle or transitional production states.

For facilities that have integrated the 1785-ME16 into a broader Rockwell Automation ecosystem, the module also supports coexistence with ControlLogix 1756-L71 or 1756-L73 processors via Data Highway Plus (DH+) bridging through 1785-KA5 communication adapters. This allows legacy PLC-5 nodes to participate in plant-wide energy dashboards managed through FactoryTalk View SE or third-party SCADA platforms, providing operators with visibility into per-zone energy consumption without requiring a full system migration.

HMI integration is equally important. PanelView 550 and PanelView Plus 6 terminals connected via DH+ can display real-time energy metrics derived from the PLC-5 program stored on the 1785-ME16, giving line operators immediate feedback on motor load, cycle efficiency, and alarm states — enabling faster corrective action and reducing the duration of energy-wasteful fault conditions.

Power Optimization in Real Production Lines

In discrete manufacturing environments, the 1785-ME16 contributes to energy optimization through several concrete mechanisms. First, by ensuring program integrity across power cycles — a critical capability in facilities with unstable grid supply — the module prevents the costly re-initialization sequences that consume excess energy and disrupt production line rhythm. A line that restarts cleanly and deterministically wastes far less energy than one that requires manual intervention or extended warm-up cycles.

Second, the non-volatile nature of EEPROM storage means that optimized PID tuning parameters, motor ramp profiles, and energy setpoints are preserved even after an unplanned shutdown. This is particularly valuable in applications involving Allen-Bradley 1336 PLUS II drives or legacy 1305 AC drives, where motor ramp-up profiles directly affect peak demand charges on the facility’s electricity bill. A correctly tuned ramp stored reliably in the 1785-ME16 can reduce inrush current events and smooth the load curve across a production shift.

Third, predictive maintenance strategies benefit directly from stable program execution. When the PLC-5 program — stored on the 1785-ME16 — includes runtime hour counters, fault logging routines, and threshold-based alerts for motor current deviation, maintenance teams can schedule interventions before failures occur. This reduces both emergency energy consumption (associated with running degraded equipment at higher loads) and the energy cost of unplanned restarts. Combined with in-stock availability and fast dispatch from ZYPLC’s warehouse, replacement cycles are short, minimizing the window of degraded operation.

All units supplied by ZYPLC undergo functional testing and load verification prior to shipment, ensuring that the 1785-ME16 you receive performs to Allen-Bradley’s original specification. Each module is covered by a 12-month warranty, providing procurement teams and maintenance engineers with the confidence to plan replacements and spares inventory without risk.

Energy Optimization FAQ

Q1: How does the 1785-ME16 contribute to energy savings compared to battery-backed RAM modules?
The 1785-ME16 uses EEPROM technology, which is non-volatile and requires no battery to retain program data. This eliminates the auxiliary power draw of battery maintenance circuits and removes the risk of program loss due to battery failure — a failure mode that can cause uncontrolled motor starts and energy-wasteful restart sequences. Over a multi-year operational period, the reduction in battery-related maintenance and the elimination of associated downtime events represent a meaningful contribution to the facility’s overall energy efficiency profile.

Q2: Is the 1785-ME16 compatible with my existing PLC-5 processor and I/O configuration?
The 1785-ME16 is designed for the Allen-Bradley PLC-5 family, including the PLC-5/10, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80 processors. It is compatible with standard 1771 I/O backplanes and does not require firmware changes to the host processor. If your system uses a 1785-L40B or 1785-L60B processor with a standard 1771-A1B or 1771-A2B I/O chassis, the 1785-ME16 will integrate without modification.

Q3: Can the 1785-ME16 be used as a direct replacement for other PLC-5 memory modules, and what is the recommended substitution path?
The 1785-ME16 (16K) is a direct replacement for worn or failed units of the same part number. For applications currently using the 1785-ME8 (8K) module, an upgrade to the 1785-ME16 provides additional program space that can accommodate expanded energy monitoring routines, additional fault logging, or more granular motor control logic — all without hardware changes to the chassis or processor. ZYPLC’s technical team can advise on compatibility and substitution options based on your specific PLC-5 configuration.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1785-ME16 supplied by ZYPLC is subject to pre-shipment functional testing, including read/write verification, data retention confirmation, and compatibility checks against PLC-5 processor firmware. The 12-month warranty covers defects in materials and workmanship under normal industrial operating conditions. In the event of a warranty claim, ZYPLC provides replacement dispatch from in-stock inventory, minimizing the impact on production continuity and ensuring that your energy optimization programs remain operational without extended interruption.
