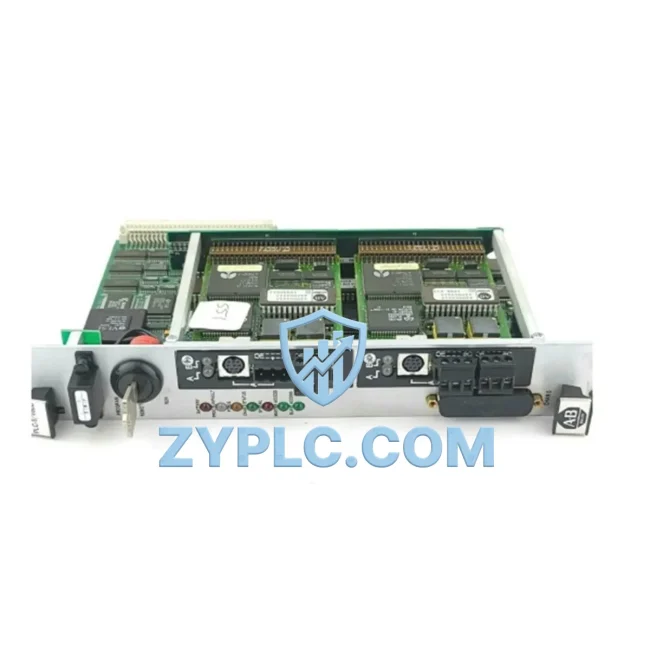

Allen-Bradley 1785-V40V System-Ready CPU for PLC-5 Architecture

Allen-Bradley 1785-V40V System-Ready CPU for PLC-5 Architecture: Control System Coordination and Upstream-Downstream Synergy

Architecture Specification Table

Coordinated Control System Design

The Allen-Bradley 1785-V40V is not simply a standalone processor — it is the architectural nucleus of a complete PLC-5 control system. Understanding its role requires examining how it coordinates with every layer of the automation hierarchy, from the power distribution layer through to the human-machine interface and field execution devices.

At the power layer, the 1785-V40V relies on the 1771-P4S or 1771-P6S power supply modules installed within the same 1771 chassis. These supplies deliver regulated 5 VDC backplane power, ensuring the CPU and all co-resident I/O modules operate within stable electrical parameters. Power quality at this layer directly affects scan cycle consistency and CPU uptime — a consideration critical in continuous process environments.

Within the I/O layer, the 1785-V40V communicates with a broad range of 1771 series I/O modules, including digital input modules such as the 1771-IA and 1771-OA output modules, as well as analog modules like the 1771-IFE for process signal acquisition. The CPU’s Remote I/O (RIO) scanner capability allows it to extend control reach across multiple 1771 chassis racks, enabling distributed I/O architectures without requiring additional processors. This is particularly valuable in large-footprint installations such as petrochemical plants, water treatment facilities, and mining conveyor systems where field devices are geographically dispersed.

At the network and communication layer, the 1785-V40V supports Data Highway Plus (DH+) natively, enabling peer-to-peer messaging with other PLC-5 processors, SLC 500 controllers, and upstream SCADA systems. For facilities requiring higher-bandwidth deterministic communication, the CPU can be paired with a 1784-KTX or 1784-PCMK communication interface card to bridge DH+ networks to modern Ethernet-based supervisory systems. This Contextual Integration capability ensures the 1785-V40V remains a viable control node even within modernized hybrid architectures.

For human-machine interface coordination, the 1785-V40V integrates seamlessly with PanelView 550 and PanelView 900 terminals via DH+ or RIO links. Operators can monitor real-time process variables, acknowledge alarms, and issue setpoint changes directly through these HMI nodes, with the CPU managing all data exchange and ladder logic execution in the background. This tight HMI-CPU coupling reduces operator response latency and supports structured alarm management in compliance with ISA-18.2 guidelines.

In redundancy-critical applications, the 1785-V40V can be deployed alongside a 1785-CHBM hot-backup module to form a primary-secondary CPU pair. This configuration ensures bumpless transfer of control in the event of a primary CPU fault, maintaining process continuity in power generation, pharmaceutical batch processing, and municipal water distribution systems where unplanned downtime carries significant operational and regulatory consequences.

At the execution layer, the CPU drives output signals to motor starters, variable frequency drives, solenoid valve banks, and servo positioning systems through the 1771 I/O infrastructure. The deterministic scan cycle of the 1785-V40V ensures that output response times remain consistent even under high I/O point counts, supporting precise sequencing in packaging lines, metal stamping operations, and automated assembly systems.

All units supplied by ZYPLC are covered by a 12-Month Warranty and undergo functional testing prior to dispatch, ensuring that the 1785-V40V arrives ready for immediate rack installation and system commissioning.

Application in Layered Automation Systems

The 1785-V40V has demonstrated sustained reliability across a wide spectrum of industrial verticals, each presenting unique demands on control system architecture:

Manufacturing & Assembly: In automotive body-in-white lines and discrete parts assembly, the 1785-V40V manages multi-zone conveyor sequencing, robotic cell interlocking, and quality gate logic. Its large program memory accommodates complex ladder logic routines without requiring program segmentation, simplifying maintenance and reducing commissioning time.

Power Generation & Utilities: In coal-fired and hydroelectric generation facilities, the CPU coordinates turbine auxiliary systems, cooling water circuits, and fuel handling conveyors. Its DH+ network capability allows integration with plant-wide DCS supervisory layers, providing operators with unified process visibility across generation and balance-of-plant systems.

Petrochemical & Refining: The 1785-V40V’s robust operating temperature range and proven field reliability make it a preferred choice for pump station control, compressor sequencing, and tank farm management. Its RIO scanner capability supports remote I/O drops installed in hazardous area junction boxes, reducing intrinsically safe wiring runs and simplifying zone classification compliance.

Water & Wastewater Treatment: Municipal water authorities rely on the 1785-V40V for lift station control, chemical dosing sequencing, and filtration process management. The CPU’s ability to handle both analog PID loops and discrete interlock logic within a single program makes it well-suited for the mixed-signal environments typical of water treatment facilities.

Mining & Minerals Processing: In underground and surface mining operations, the 1785-V40V controls conveyor drive sequencing, crusher interlock systems, and ventilation fan management. Its tolerance for electrically noisy environments and compatibility with isolated power supply configurations supports reliable operation in challenging underground electrical conditions.

Metals & Metallurgy: Rolling mill drive coordination, furnace temperature profiling, and quench system sequencing are typical applications in steel and aluminum processing facilities. The CPU’s fast scan cycle supports the tight timing requirements of rolling mill pass sequencing and tension control loops.

Architecture Engineering FAQ

Q1: Is the 1785-V40V compatible with existing 1771 chassis and I/O modules already installed in my facility?
Yes. The 1785-V40V is fully compatible with the 1771 chassis backplane and the complete range of 1771 series I/O modules. It occupies a single chassis slot and communicates with all co-resident I/O modules via the backplane. No chassis modifications or adapter modules are required for direct replacement of an existing PLC-5 CPU. ZYPLC recommends verifying the chassis power supply capacity against the total module load prior to installation, particularly in fully populated chassis configurations.

Q2: Can the 1785-V40V be integrated into a modernized architecture that includes Ethernet-based SCADA or MES systems?
Yes, through Contextual Integration using communication bridge modules. The 1785-V40V’s native DH+ port can be connected to a 1761-NET-DNI or a 1784-PCMK gateway to bridge DH+ traffic to Ethernet/IP or OPC-DA server environments. This allows the CPU to exchange data with modern SCADA platforms, historian servers, and MES systems without requiring a controller migration. This approach preserves existing ladder logic investments while extending supervisory connectivity to current-generation infrastructure.

Q3: What does the 12-Month Warranty cover, and what support is available during the warranty period?
All 1785-V40V units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit is functionally tested prior to shipment. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination. For time-critical applications, customers are encouraged to discuss advance replacement options at the time of purchase to minimize potential downtime exposure. Contact ZYPLC at [email protected] or +86 19859288691 for warranty registration and support inquiries.
