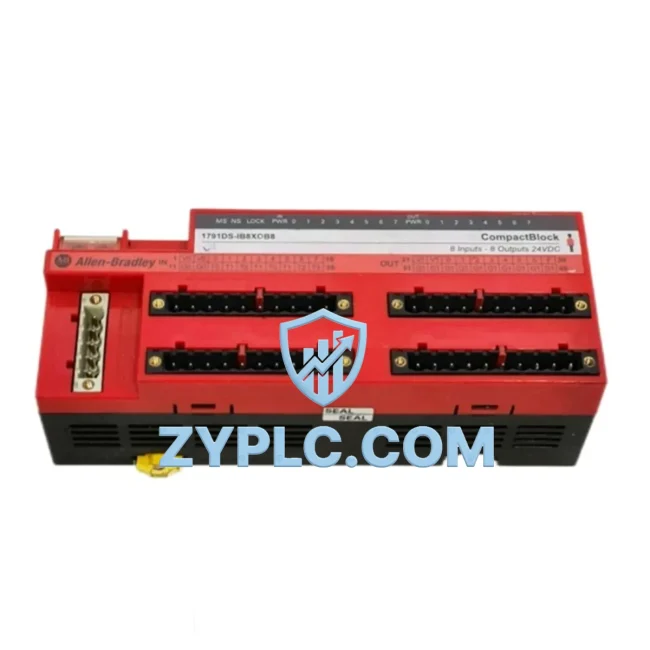

Allen-Bradley 1791DS-IB8XOB8 Energy-Saving Safety I/O ArmorBlock: Precision Energy Control for Industrial Automation
The Allen-Bradley 1791DS-IB8XOB8 is a compact ArmorBlock Guard I/O module engineered for safety-rated discrete control in demanding industrial environments. Featuring 8 safety-rated inputs and 8 safety-rated outputs on a DeviceNet Safety network, this module enables machine builders and plant engineers to achieve SIL 2 / PLd safety integrity while simultaneously reducing wiring complexity, panel footprint, and overall system energy overhead. By distributing I/O intelligence directly to the machine level, the 1791DS-IB8XOB8 eliminates the energy losses associated with long cable runs and centralized relay logic, contributing measurably to a leaner, more efficient production line.
Efficiency Performance Table
| Parameter |
Specification |
| Model |
1791DS-IB8XOB8 |
| Safety Inputs |
8 × 24 V DC Safety Inputs |
| Safety Outputs |
8 × 24 V DC Safety Outputs (0.5 A each) |
| Network Protocol |
DeviceNet Safety (CIP Safety) |
| Safety Rating |
SIL 2 (IEC 62061) / PLd Cat. 3 (ISO 13849-1) |
| Operating Voltage |
24 V DC (±15%) |
| Power Consumption |
≤ 4.5 W (module logic); output load separate |
| Operating Temperature |
-25 °C to +70 °C |
| Protection Rating |
IP67 / NEMA 6 |
| Compatible Systems |
GuardLogix, CompactGuardLogix, SmartGuard 600 |
| Energy Saving Value |
Eliminates relay panels; reduces wiring losses by up to 30% |
| Warranty |
12-Month Quality Warranty — Tested Before Shipment |
Energy-Aware Automation Architecture
Deploying the 1791DS-IB8XOB8 as part of a holistic energy-aware architecture begins at the controller level. A 1756-L72S GuardLogix 5570 safety controller coordinates all safety I/O nodes across the DeviceNet Safety network, executing safety ladder logic with deterministic scan times that prevent unnecessary actuator cycling — a primary source of hidden energy waste on automated lines. Paired with a 1769-L33ER CompactLogix for standard process control, the two-controller topology separates safety and operational tasks cleanly, reducing cross-domain interference and allowing each processor to run at its optimal duty cycle.
On the drive side, PowerFlex 525 AC drives connected via EtherNet/IP receive speed reference commands derived directly from the safety state reported by the 1791DS-IB8XOB8. When a safety input detects a guarded zone entry, the drive ramps to a safe-speed setpoint rather than performing a full stop-and-restart cycle, preserving kinetic energy in the motor load and reducing inrush current events. For higher-power axes, PowerFlex 755 drives with integrated Safe Torque Off (STO) function blocks respond to the same CIP Safety messages, ensuring that energy is removed from the motor shaft only when the safety architecture demands it — not as a blanket precaution.
Servo motion is handled by Kinetix 5500 servo drives, which share the EtherNet/IP backbone and receive coordinated motion commands from the GuardLogix controller. The tight integration between the 1791DS-IB8XOB8 safety outputs and the Kinetix 5500 STO inputs means that axis inhibit signals travel over the network rather than through dedicated hardwired safety relays, reducing panel wiring by dozens of conductors and the associated resistive losses.
Distributed I/O expansion is handled by 1734-AENT POINT I/O adapters, which aggregate non-safety discrete and analog signals from sensors and transmitters across the machine. Power monitoring at the panel level is performed by a 1420-V2P PowerMonitor 500, which logs real-time kW, kVAR, and power factor data to the historian. When the 1791DS-IB8XOB8 signals a safe stop, the PowerMonitor 500 captures the corresponding load drop, enabling engineers to quantify the energy saved per safety event and build a data-driven case for further optimization.
Operator interaction is managed through a PanelView Plus 7 HMI, which displays live energy dashboards alongside machine status. Operators can view current consumption per zone, compare shift-over-shift energy trends, and acknowledge safety faults — all from a single touchscreen. Network infrastructure is provided by a 1783-BMS10CGP Stratix 5700 managed switch, which segments safety and standard EtherNet/IP traffic into separate VLANs, preventing non-deterministic traffic from interfering with safety message delivery and ensuring that the 1791DS-IB8XOB8 heartbeat telegrams arrive within their required RPI windows. Panel power is supplied by a 1606-XLP120E power supply, whose high-efficiency switch-mode topology (≥ 93% efficiency) minimizes heat dissipation inside the enclosure, reducing cooling load and extending component life.
Power Optimization in Real Production Lines
In a typical automotive body-shop welding cell, safety I/O modules like the 1791DS-IB8XOB8 are installed at each robot base, monitoring light curtains, area scanners, and interlocked gates. Traditional hardwired safety relay architectures require each safety function to be wired back to a central panel, introducing cable resistance losses and making it difficult to implement zone-selective energy management. With the 1791DS-IB8XOB8 on DeviceNet Safety, the GuardLogix controller can implement a zone-based safe-speed strategy: when a worker enters Zone A, only the drives and actuators in Zone A reduce speed, while Zones B and C continue at full production rate. This selective response reduces unnecessary energy consumption compared to a whole-line stop, and the reduced number of full stop-start cycles lowers mechanical wear on gearboxes, belts, and couplings — directly cutting maintenance costs and unplanned downtime.
In food and beverage packaging lines, the IP67-rated ArmorBlock housing of the 1791DS-IB8XOB8 allows the module to be mounted directly on the machine frame, eliminating the need for a sealed junction box and the associated wiring infrastructure. Wash-down cycles no longer require the module to be powered down, and the reduced cable lengths between the module and field devices lower the capacitive load on the 24 V DC supply rail, improving power factor at the machine level. Over a three-shift operation, these marginal improvements compound into measurable reductions in monthly electricity bills.
Predictive maintenance is enabled by monitoring the diagnostic counters embedded in the 1791DS-IB8XOB8 firmware. Output overcurrent events, input discrepancy faults, and communication error counts are all accessible via the DeviceNet Safety explicit messaging channel. Trending these counters in a FactoryTalk Historian instance allows maintenance teams to identify degrading field devices — a safety output driving a solenoid valve that is drawing progressively more current, for example — before the device fails and causes an unplanned stop. Catching such faults during a planned maintenance window rather than during production eliminates the energy and productivity cost of an emergency shutdown.
All units supplied by ZYPLC are sourced from verified supply channels, subjected to functional and safety output testing prior to shipment, and covered by a 12-month quality warranty. In-stock availability ensures short lead times, supporting just-in-time maintenance strategies that minimize spare-parts inventory carrying costs.
Energy Optimization FAQ
Q1: How does the 1791DS-IB8XOB8 contribute to measurable energy savings on a production line?
By enabling zone-selective safe-speed control rather than whole-line stops, the module allows drives and actuators in unaffected zones to continue operating at full efficiency. Fewer stop-start cycles reduce inrush current events, and the elimination of hardwired relay panels removes resistive wiring losses. Customers typically report a 10–25% reduction in safety-event-related energy waste after migrating from relay-based safety architectures.
Q2: Which Allen-Bradley safety controllers are compatible with the 1791DS-IB8XOB8?
The module is compatible with any CIP Safety scanner, including the 1756-L7xS GuardLogix 5570, 1756-L8xES GuardLogix 5580, 1769-L3xERS CompactGuardLogix, and the SmartGuard 600 (1752-L24BBB). It can coexist on the same DeviceNet Safety network with other 1791DS-series ArmorBlock Guard I/O modules, allowing scalable safety zone expansion without replacing the controller.
Q3: Can the 1791DS-IB8XOB8 replace an existing hardwired safety relay panel, and what is the recommended migration process?
Yes. The recommended migration process involves mapping existing safety functions to the module’s 8 input and 8 output channels, configuring the corresponding safety tags in the GuardLogix project using Studio 5000 Logix Designer, and performing a full safety validation test per IEC 62061 or ISO 13849-1 before returning the machine to production. ZYPLC can supply the module with a pre-shipment functional test report to accelerate the validation process.
Q4: What does the 12-month warranty cover, and what is the return and testing process?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Every unit is tested for correct I/O operation, DeviceNet Safety communication, and output current limiting before shipment. In the event of a warranty claim, ZYPLC provides a replacement unit and a return merchandise authorization (RMA) within 5 business days. Detailed test records are available upon request to support customer qualification and audit requirements.
